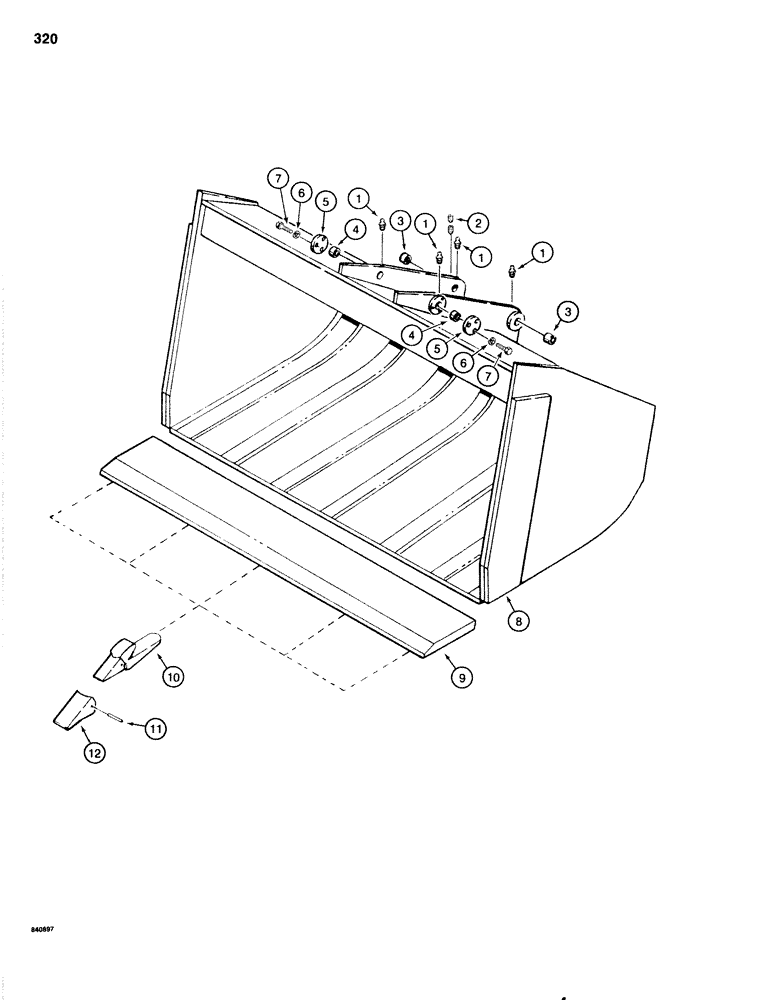

Запчасти Case 1080 (320) - FRONT LOADER BUCKET (84) - BOOMS, DIPPERS & BUCKETS

S618413

BUCKET ASSEMBLY - 60" (1524 mm), machinery item, see Fig. 3 for ordering, Includes: Ref.1 - 12

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

2

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

3

S234483

BUSHING

- at arm

2шт.

4

S229988

BUSHING

- at attachment link

2шт.

5

S106642

COVER

- side

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" - 16 NC x 7/8", grade 8

6шт.

8

NSS

NOT SOLD SEPARAT

BUCKET - weldment, Includes: Ref.#s9 & 10

1шт.

9

S82501

EDGE, CUTTING

CUTTING EDGE - 60" (1524 mm) bucket

1шт.

10

S59402

SHANK

- tooth

5шт.

11

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

5шт.

12

S503093

POINT

- tooth

5шт.
