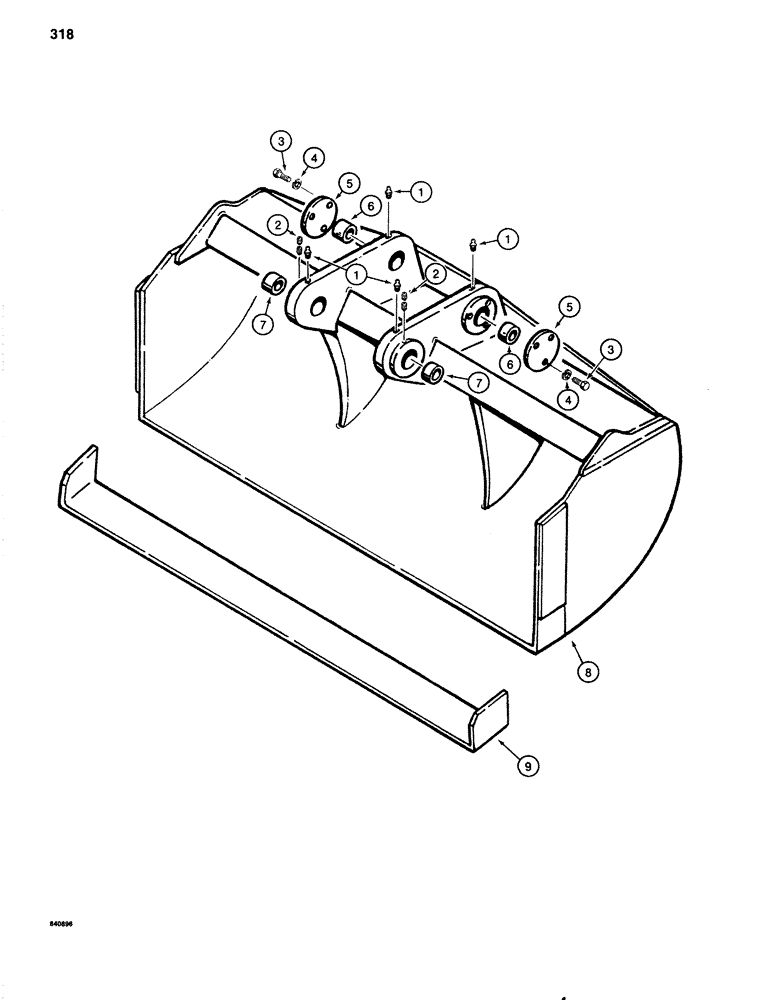

Запчасти Case 1080 (318) - DITCH BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

S618410

BUCKET ASSEMBLY - 60" (1524 mm), machinery item, see Fig. 2 for ordering, Includes: Ref.#s1 - 9

1шт.

S618411

BUCKET ASSEMBLY - 72" (1829 mm), machinery item, see Fig. 2 for ordering, Includes: Ref.#s1 - 9

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

2

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

4шт.

3

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" - 16 NC x 7/8", grade 8

6шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

S106642

COVER

- side

2шт.

6

S229988

BUSHING

- at attachment link

2шт.

7

S234483

BUSHING

- at arm

2шт.

8

NSS

NOT SOLD SEPARAT

BUCKET - weldment, Includes: Ref.#9

1шт.

9

S206752

EDGE

CUTTING EDGE - 60" (1524 mm) bucket

1шт.

The 60" Cutting Edge has upright ends.

1шт.

9

S212928

EDGE

CUTTING EDGE - 72" (1829 mm) bucket

1шт.

The 72" Cutting Edge is flat.

1шт.
