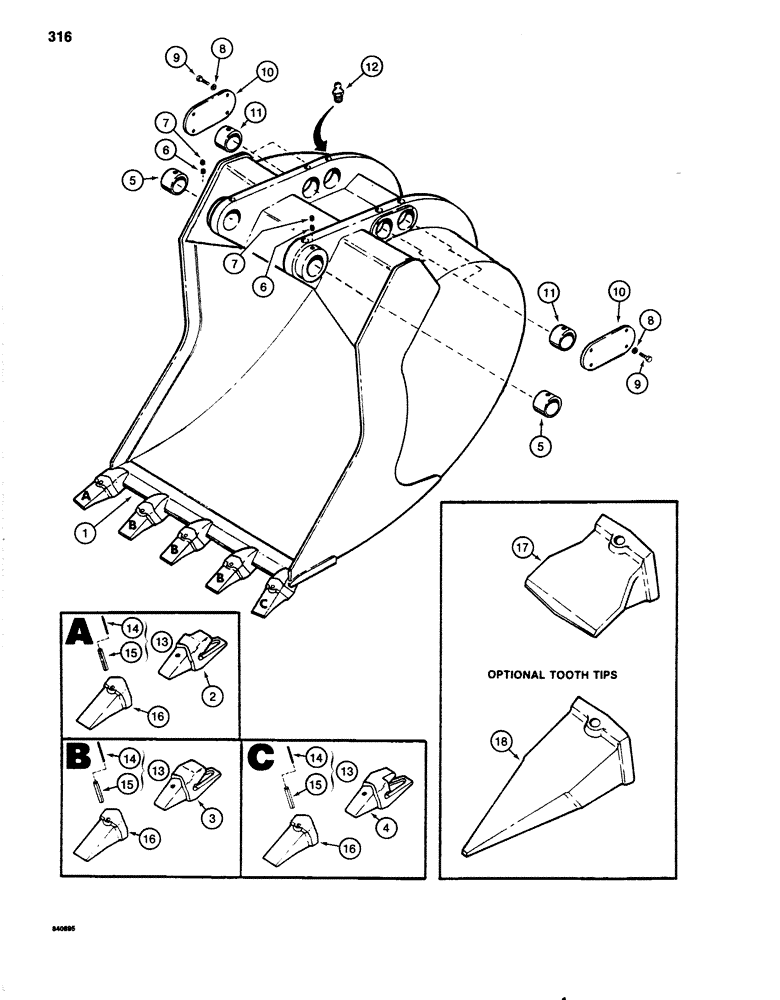

Запчасти Case 1080 (316) - BACKHOE BUCKETS, HIGH CAPACITY (84) - BOOMS, DIPPERS & BUCKETS

S618412

BUCKET ASSEMBLY - 36' (914 mm), machinery item, see Fig. 3 for ordering

1шт.

1

S239201

EDGE

CUTTING EDGE - 36' (914 mm) bucket

1шт.

2

S615007

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

3

S615005

SHANK, BUCKET TOOTH

SHANK - tooth, center

3шт.

4

S615006

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

5

S234482

BUSHING

- at arm

2шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

2шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cup point

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" -16 NC x 7/8", grade 8

8шт.

10

S111923

COVER

- side

2шт.

11

S234928

BUSHING

- at bucket attachment link

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

13

S239749

ROLL PIN

ASSEMBLY - tooth point

5шт.

14

REF

INSTRUCTION

PLUG - rubber, 4" (102 mm) long

1шт.

Cut from rubber bulk strip P/N S119223

1шт.

15

138-214

LOCK PIN,1/2" x 4", Slotted

ROLL PIN - 7/16" x 4"

1шт.

16

S615004

POINT

- tooth, standard

5шт.

17

S615022

POINT

- tooth, spade, optional

5шт.

18

S615023

POINT

- tooth, rock, optional

5шт.

S119223

RUBBER

PLUG - rubber, 48" (1219 mm) long strip

1шт.
