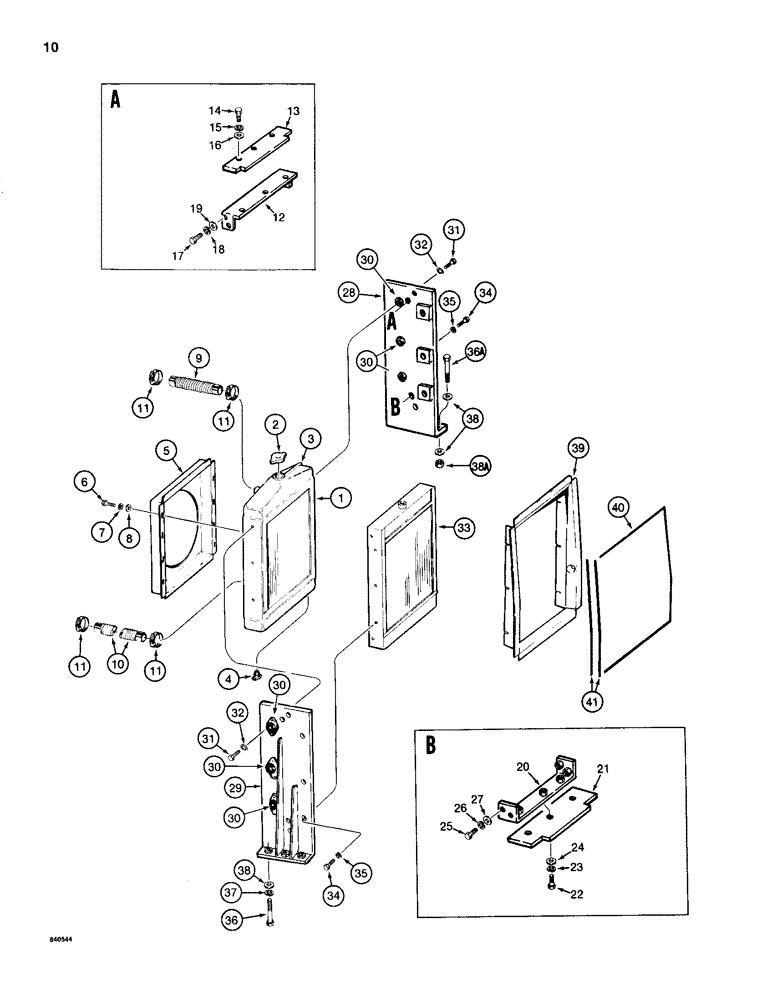

Запчасти Case 1080 (010) - RADIATOR, OIL COOLER, AND HOSES, FOR CASE ENGINE (10) - ENGINE

1

S614013

RADIATOR

ASSEMBLY - engine cooling

1шт.

2

D25826

CAP

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, purchase locally

1шт.

4

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

5

S602543

SHROUD

- fan

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex head, 1/4" - 20 NC x 1/2"

8шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4"

8шт.

9

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

10

L70946

RADIATOR HOSE,2.50" ID x 14.50", SAE 20R4 Class R Grade 1A

Lower 2.50" ID x 14.50", SAE 20R4 Class R Grade 1A

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

12

S237246

BRACKET

- mounting, upper

1шт.

13

S237248

STRIP

- upper mount bracket

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

16

195-101

WASHER,3/16"

- flat, 1/4"

3шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

195-102

WASHER,1/4"

- flat, 5/16"

4шт.

20

S237267

BRACKET

- mounting, lower

1шт.

21

S237269

STRIP

- lower mounting bracket

1шт.

22

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

24

195-101

WASHER,3/16"

- flat, 1/4"

3шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

27

195-102

WASHER,1/4"

- flat, 5/16"

4шт.

28

S515410

BRACKET

- front, Includes: Ref.#30

1шт.

29

S515409

BRACKET

- rear, Includes: Ref.#30

1шт.

30

S222918

SHOCK ABSORBER

MOUNT - insulating

3шт.

31

S76819

STEP BOLT

BOLT - shoulder, 5/16" - 18 NC x 1"

6шт.

32

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 5/16"

6шт.

33

S613672

COOLER, OIL

OIL COOLER - hydraulic oil

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

36

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

36a

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

38

S95569

WASHER

- flat, 1/2"

9шт.

38a

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

39

S617916

TUBE,1.5" OD

SHROUD - air intake

1шт.

40

REF

INSTRUCTION

MOULDING - shroud, 112" (2845 mm) long, cut from S118475

1шт.

Moulding shroud, bulk length, 120" (3048mm) long

1шт.

41

REF

INSTRUCTION

MOULDING - shroud, 46" (1168 mm) long, cut from S118475

2шт.

Moulding shroud bulk length 120" (3048mm) long

1шт.

S118475

SEAL

MOULDING - shroud, bulk length, 120" (3048 mm) long

1шт.
