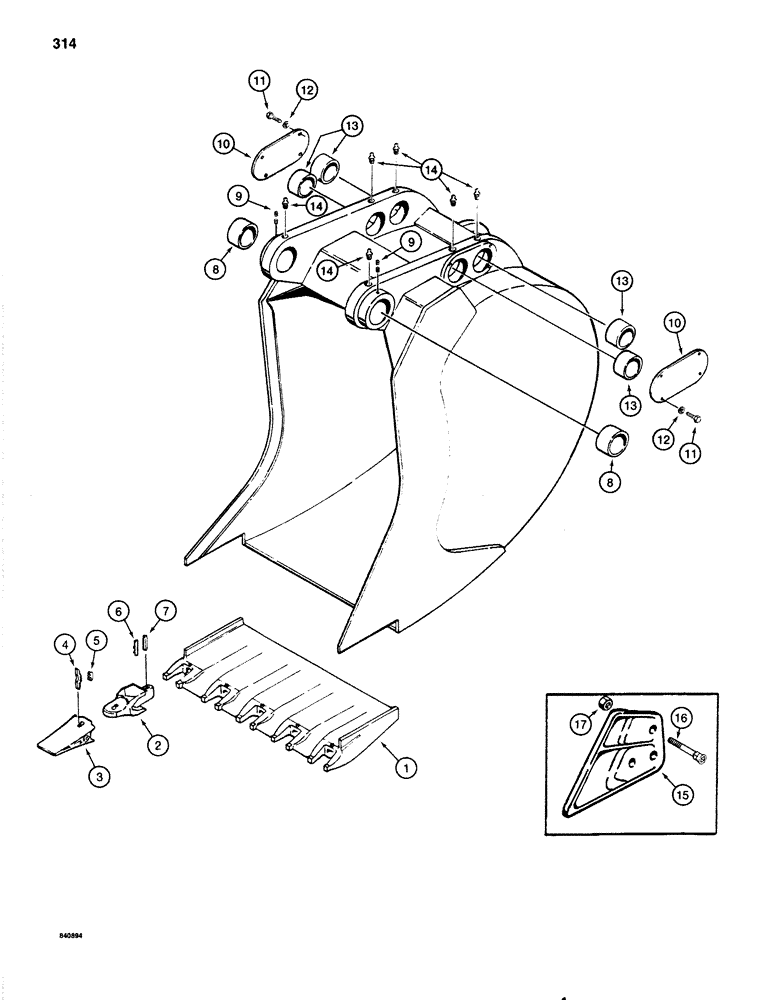

Запчасти Case 1080 (314) - BACKHOE BUCKETS, SEVERE DUTY (84) - BOOMS, DIPPERS & BUCKETS

S618408

BUCKET ASSEMBLY - 24" (610 mm), machinery item, see Fig. 3 for ordering, Includes: Ref.#s1 - 14

1шт.

S618409

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Fig. 3 for ordering, Includes: Ref.#s1 - 14

1шт.

1

S98400

EDGE

CUTTING EDGE - 24" (610 mm) bucket

1шт.

1

S98402

LIP

CUTTING EDGE - 36" (914 mm) bucket

1шт.

2

S96432

NIPPLE, LUBE

SHANK - tooth

1шт.

3

S96431

POINT

- tooth

1шт.

4

S96434

PIN

RETAINER PIN - tooth point

1шт.

5

S96433

LOCK

- retainer pin

1шт.

6

S110285

WEDGE

- tooth shank

1шт.

7

S110286

SPOOL

- tooth shank

1шт.

8

S234483

BUSHING

- at arm

2шт.

9

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cup point

4шт.

10

S229978

COVER

- side

2шт.

11

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" - 16 NC x 7/8", grade 8

8шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

S229988

BUSHING

- at bucket attachment link

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

15

S235283

CUTTER

- side 3" (76 mm), right-hand, Includes: Ref.#s16 & 17, if used

1шт.

15

S235284

CUTTER

- side, 3" (76 mm), left-hand, Includes: Ref.#s16 & 17, if used

1шт.

15

S235285

CUTTER

- side, 4" (102 mm), right-hand, Includes: Ref.#s 16 & 17 if used

1шт.

15

S235286

CUTTER

- side, 4" (102 mm), left-hand, Includes: Ref.#s16 & 17, if used

1шт.

16

19-1440

PLOW BOLT,#3, 7/8" - 9 x 2 1/2", Gr 5

- 7/8" - 9 NC x 2-1/2"

3шт.

17

131-198

LOCK NUT,7/8"-9, GC

NUT - hex, self-locking, 7/8" - 9 NC

3шт.
