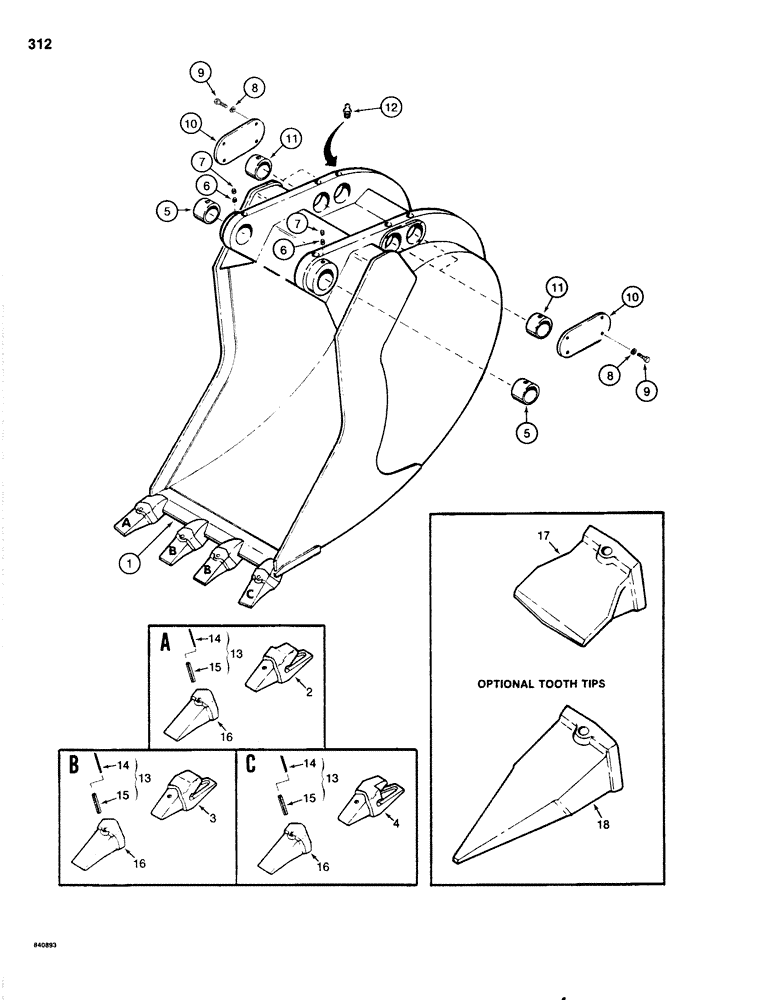

Запчасти Case 1080 (312) - BACKHOE BUCKETS, GENERAL PURPOSE (84) - BOOMS, DIPPERS & BUCKETS

S618407

BUCKET ASSEMBLY - 25" (635 mm), machinery item, see Fig. 3 for ordering

1шт.

S618405

BUCKET ASSEMBLY - 30" (762 mm), machinery item, see Fig. 3 for ordering

1шт.

S618406

BUCKET ASSEMBLY - 36" (914 mm), machinery item, see Fig. 3 for ordering

1шт.

S618404

BUCKET ASSEMBLY - 42" (1066 mm), machinery item, see Fig. 3 for ordering

1шт.

1

S239195

EDGE

CUTTING EDGE - 25" (635 mm) bucket

1шт.

1

S239196

EDGE

CUTTING EDGE - 30" (762 mm) bucket

1шт.

1

S239197

EDGE

CUTTING EDGE - 36" (914 mm) bucket

1шт.

1

S239198

CUTTING EDGE - 42" (1066 mm) bucket

1шт.

2

S615011

SHANK

- tooth, left-hand

1шт.

3

S615009

SHANK

- tooth, center

1шт.

4

S615010

SHANK

- tooth, right-hand

1шт.

5

S234483

BUSHING

- at arm

2шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cone point

2шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 x 3/8", cup point

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" - 16 NC x 7/8", grade 8

8шт.

10

S229978

COVER

- side

2шт.

11

S229988

BUSHING

- at bucket attachment link

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

13

S239750

ROLL PIN

ASSEMBLY - tooth point, Includes: Ref.#s14 & 15

1шт.

14

REF

INSTRUCTION

PLUG - rubber, 3" (76 mm) long

1шт.

Cut from rubber strip P/N S119223

1шт.

15

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

16

S615008

POINT

- tooth, standard

1шт.

17

S615024

POINT

- tooth, spade, optiona

1шт.

18

S615025

POINT

- tooth, rock, optional

1шт.

S119223

RUBBER

PLUG - rubber, 48" (1219 mm) long strip

1шт.
