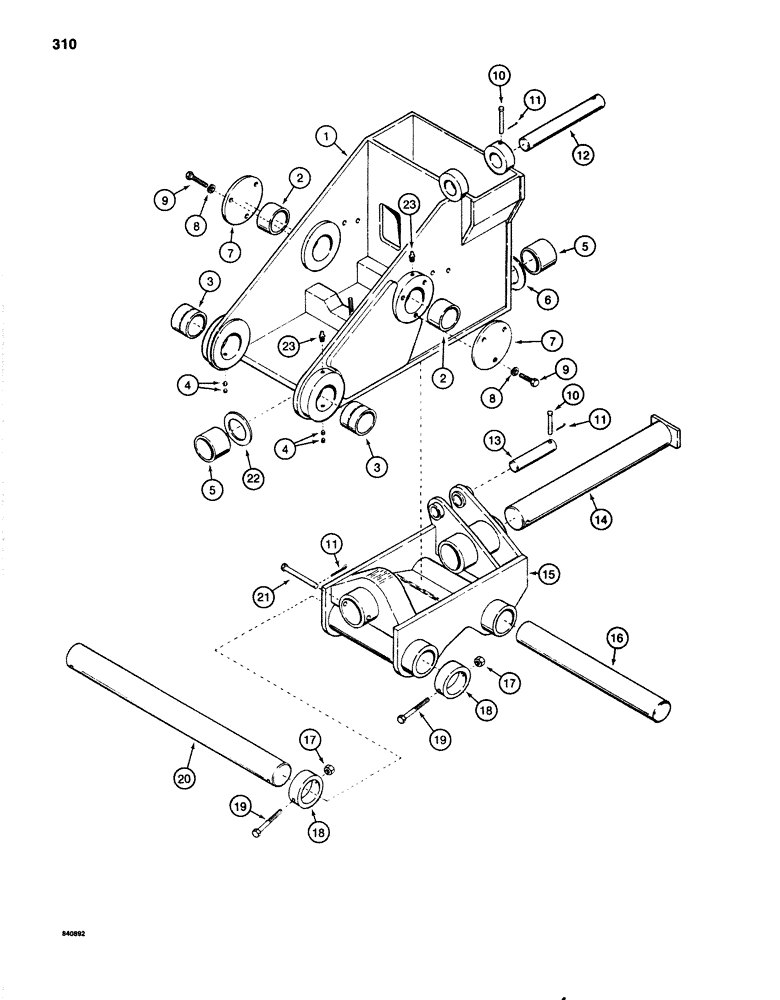

Запчасти Case 1080 (310) - WRIST-O-TWIST (84) - BOOMS, DIPPERS & BUCKETS

1

S610287

FRAME - upper, Includes: Ref.#s2 - 5

1шт.

2

S229988

BUSHING

- frame

2шт.

3

S511922

BUSHING

- frame

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" NC x 3/8", cone point

4шт.

5

S202163

BUSHING

- frame

2шт.

6

S88993

WASHER

- shim, .09" (2.3 mm) thick

1шт.

7

S106642

COVER

- round

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- hex head, 3/8" x 7/8" NC, grade 8

6шт.

10

S61970

PIN

CLEVIS PIN - 1/2" x 2.516" grip length

2шт.

11

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

3шт.

12

S74766

PIN

- cylinder base, Serial Range: end-frame

1шт.

13

S75299

PIN

- cylinder rod, Serial Range: end-hinge

1шт.

14

S229745

PIN ASSY.

PIN -, Serial Range: frame-hinge

1шт.

15

S610286

HINGE

- lower

1шт.

16

S233811

PIN

-, Serial Range: bucket-hinge

1шт.

17

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" NC

2шт.

18

S117142

COLLAR

- bucket pin

2шт.

19

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

20

S233813

PIN

-, Serial Range: bucket-hinge

1шт.

21

S61976

CLEVIS PIN

- 5/8" x 4.516" grip length

1шт.

22

S88992

WASHER

- shim, 0.6" (1.5 mm) thick

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

5шт.
