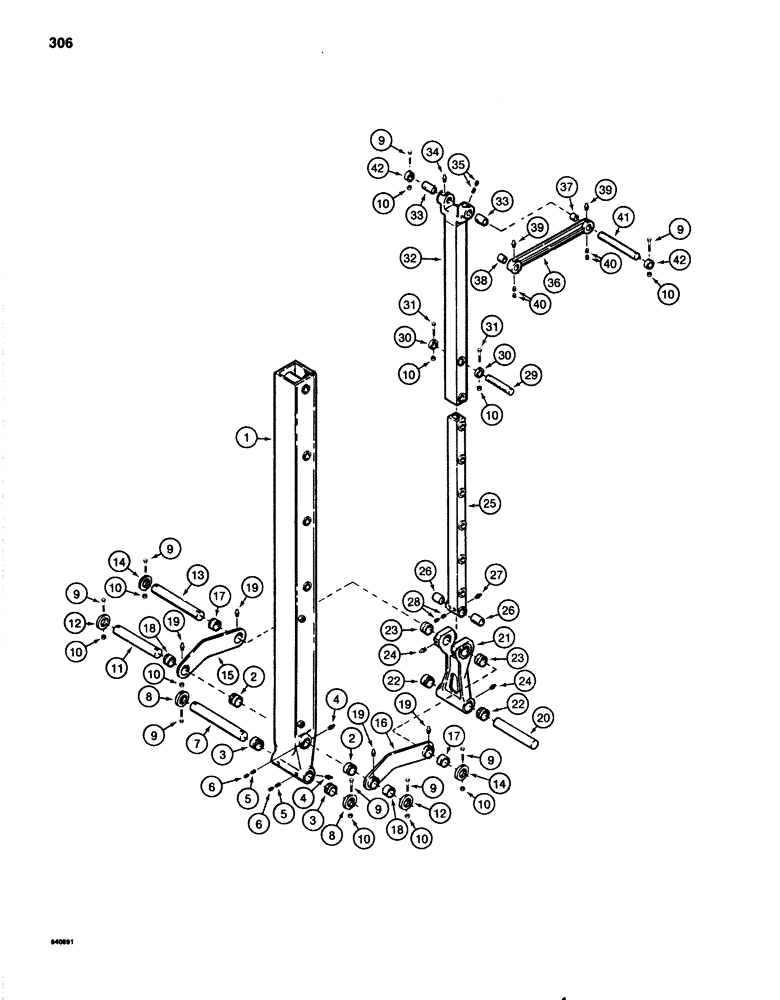

Запчасти Case 1080 (306) - Y BOOM ARM EXTENSIONS AND TOOL ATTACHMENT (84) - BOOMS, DIPPERS & BUCKETS

1

S617112

BOOM

EXTENSION - arm to tool, Includes: Ref.#s2 - 6

1шт.

2

S229564

BUSHING

- upper, link pivot

2шт.

3

S511922

BUSHING

- lower, tool pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

5

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point bushing retaining, inner

4шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cup point, bushing retaining, outer

4шт.

7

S233813

PIN

-, Serial Range: extension-tool

1шт.

8

S117142

COLLAR

- Ref.# 7 pin retaining

2шт.

9

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

8шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

10шт.

11

S234223

PIN

- Extension to tool attachment links

1шт.

12

S117140

COLLAR

- Ref.#11 pin retaining

2шт.

13

S233809

LARGE PIN

PIN - tool attachment to links and lower extension

1шт.

14

S117141

COLLAR

- Ref.#13 pin retaining

2шт.

15

S233780

ARM

LINK - tool attachment, left-hand, Includes: Ref.#s17-19

1шт.

16

S233781

LINK ASSY.

LINK - tool attachment, right-hand, Includes: Ref.#s 17-19

1шт.

17

S511923

BUSHING

- front, tool attachment pivot

1шт.

18

S229548

BUSHING

- rear, at arm extension

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

20

S233811

PIN

- too, Serial Range: attachment-tool

1шт.

21

S617050

LINK

ATTACHMENT - tool, Includes: Ref.#22 - 24

1шт.

22

S229548

BUSHING

- lower, tool attaching pin

2шт.

23

S512013

BUSHING

- upper, lower extension to tool attachment

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

25

S515609

LINK ASSY.

EXTENSION - tool cylinder, lower, Includes: Ref.#26 - 28

1шт.

26

S511923

BUSHING

- tool attachment pivot

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

28

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining

4шт.

29

S234950

PIN

- Upper extention to lower extension

2шт.

30

S111952

COLLAR

- Ref.#29 pin retaining

4шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

32

S512049

LINK

EXTENSION - tool cylinder, upper, Includes: Ref.#s33 - 35

1шт.

33

S511923

BUSHING

- yoke, upper extension

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

35

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining

4шт.

36

S514998

LINK ASSY.

LINK - upper extension and tool cylinder to arm, Includes: Ref.#s37 - 40

2шт.

37

S511923

BUSHING

- upper extension and tool cylinder pivot

1шт.

38

S229548

BUSHING

- arm pivot

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

40

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining

4шт.

41

S233809

LARGE PIN

PIN - link to upper extension and tool cylinder

1шт.

42

S117144

COLLAR

- Ref.# 41 pin retaining

2шт.
