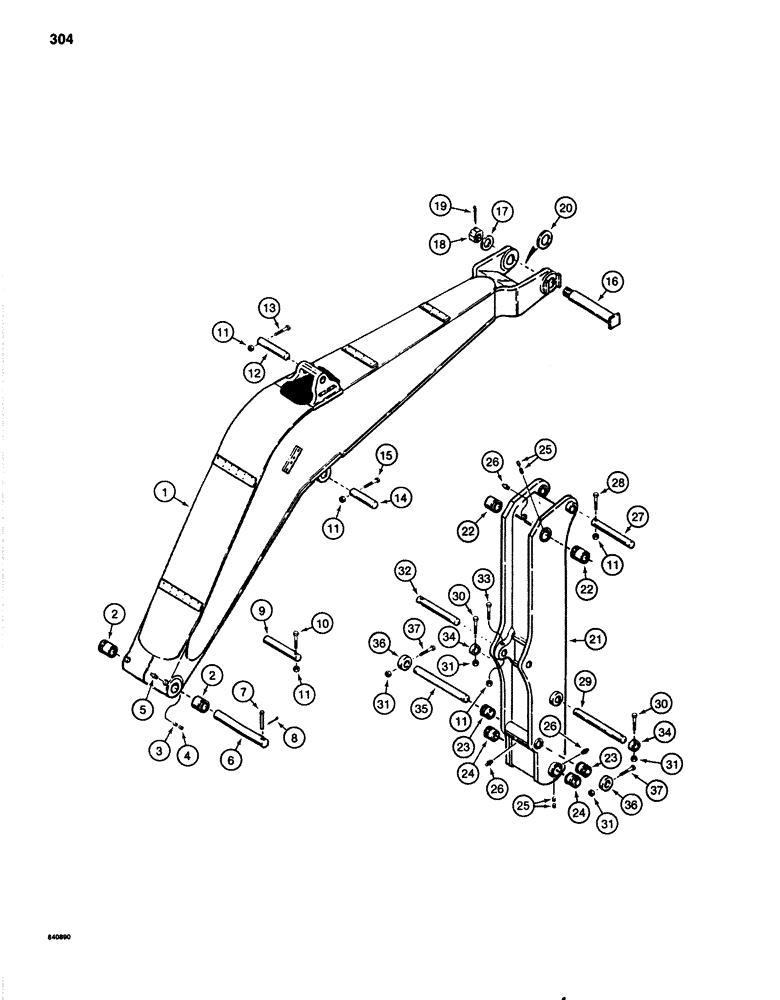

Запчасти Case 1080 (304) - Y BOOM AND ARM (84) - BOOMS, DIPPERS & BUCKETS

1

S955818

BOOM - Y weldment frame assembly, Includes: Ref.#2 - 5

1шт.

2

S511922

BUSHING

- boom mounting

2шт.

3

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining, inner

2шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cup poin, bushing retaining, outer

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

6

S233785

PIN

- boom to turntable, Serial Range: -6271406

1шт.

6

S242329

PIN

- boom to turntable, Start Serial: 6271406

1шт.

7

S83936

PIN

CLEVIS PIN - 3/4" diameter x 6-1/4" grip length, Serial Range: -6271406

1шт.

7

S87319

PIN

CLEVIS PIN - 3/4" diameter x 5-1/4", grip length, Start Serial: 6271406

1шт.

8

132-73

COTTER PIN,5/32" x 1 1/2"

PIN - Split (Cotter), 5/32" x 1 1/2"

1шт.

9

S233787

PIN

- boom, Serial Range: cylinder-turntable

1шт.

10

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

BOLT - hex head, 1/2" - 13 NC x 5-3/4", grade 8, Serial Range: -6271406

1шт.

10

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8, Start Serial: 6271406

1шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

5шт.

12

S236093

PIN

- boom, Serial Range: cylinder-boom

1шт.

13

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex head, 1/2" - 13 NC x 4-3/4", grade 8

1шт.

14

S233798

PIN

- arm, Serial Range: cylinder-boom

1шт.

15

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8

1шт.

16

S233712

LARGE PIN

PIN -, Serial Range: boom-arm

1шт.

17

S110511

WASHER

- flat

1шт.

18

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

CASTLE NUT - 2" - NC threads

1шт.

19

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

20

S111775

WASHER

SHIM - 2-1/2" ID x 4-1/2" OD x 1/8" thick

1шт.

20

S112015

WASHER

SHIM - 2-3/4" ID x 5" OD x 1/8" thick

1шт.

20

S111776

WASHER

SHIM - 3" ID x 5" OD x 1/8" thick

1шт.

21

S956559

BOOM

ARM - dipper, Y boom, Includes: Ref.#21 - 26

1шт.

22

S229565

BUSHING

- Y, Serial Range: boom-arm

2шт.

23

S229548

BUSHING

- arm, link pivot

2шт.

24

S511922

BUSHING

- arm extension pivot

2шт.

25

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bearing retaining

8шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

27

S233805

PIN

Tool, Serial Range: cylinder-arm

1шт.

28

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

29

S234951

PIN

- Arm extension to arm, upper and lower

2шт.

30

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

31

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

32

S236135

PIN

- arm, Serial Range: cylinder-arm

1шт.

33

26-812

SCREW

BOLT - hex head, 1/2" - 13 NC x 7", grade 8

1шт.

34

S117142

COLLAR

- pin retaining, Ref.#29 pin

4шт.

35

S234223

PIN

-, Serial Range: Link-arm

1шт.

36

S117140

COLLAR

- pin retaining, Ref.#35 pin

2шт.

37

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.
