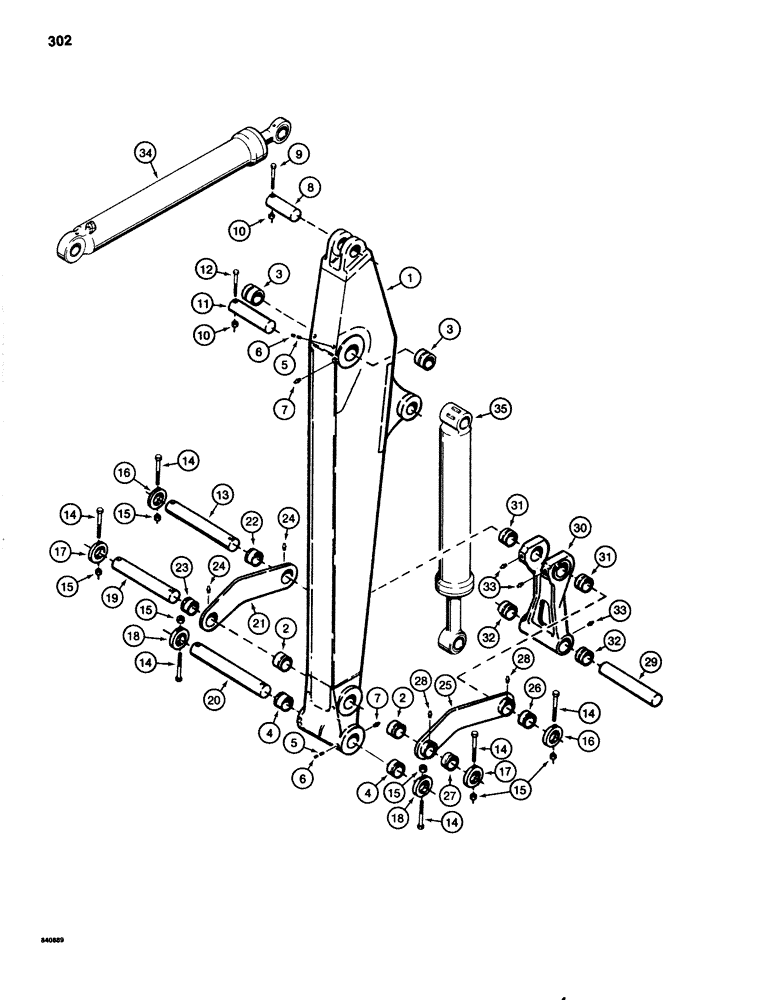

Запчасти Case 1080 (302) - E BOOM ARM AND ATTACHMENT LINKS (84) - BOOMS, DIPPERS & BUCKETS

S955832

DIPPER

ARM ASSEMBLY - 9 ft. (2.74 m) long, Includes: Ref.#1 - 7

1шт.

S955833

DIPPER

ARM ASSEMBLY - 10 ft. 5 in (3.17 m) long, Includes: Ref.#1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - too attaching

1шт.

2

S229564

BUSHING

- link pivot

2шт.

3

S229565

BUSHING

- arm pivot

2шт.

4

S511922

BUSHING

- tool pivot

2шт.

5

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining, inner

6шт.

6

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cup point, bushing retaining, outer

6шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

8

S233798

PIN

- arm, Serial Range: cylinder-arm

1шт.

9

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8

1шт.

10

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

11

S233805

PIN

Tool, Serial Range: cylinder-arm

1шт.

12

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex head, 1/2" - 13 NC x 4-3/4", grade 8

1шт.

13

S233809

LARGE PIN

PIN - tool, Serial Range: cylinder-links

1шт.

14

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

6шт.

15

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

16

S117141

COLLAR

- pin retaining, tool, Serial Range: cylinder-links

2шт.

17

S117140

COLLAR

- pin retaining, Serial Range: links-arm

2шт.

18

S117142

COLLAR

- pin retaining, Serial Range: arm-tool

2шт.

19

S234223

PIN

-, Serial Range: Links-arm

2шт.

20

S233813

PIN

-, Serial Range: arm-tool

1шт.

S233780

ARM

LINK ASSEMBLY - tool, left-hand, Includes: Ref.#s21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

LINK - tool

1шт.

22

S511923

BUSHING

- link, at tool attachment

1шт.

23

S229548

BUSHING

- link, at arm

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

S233781

LINK ASSY.

LINK ASSEMBLY - tool, right-hand, Includes: Ref.#25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

LINK - tool

1шт.

26

S511923

BUSHING

- link, at tool attachment

1шт.

27

S229548

BUSHING

- link, at arm

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

29

S233811

PIN

- tool, Serial Range: attachment-tool

1шт.

S617050

LINK

ATTACHMENT ASSEMBLY - links and tool cylinder to tool, Includes: Ref.#30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

ATTACHMENT - tool

1шт.

31

S512013

BUSHING

- tool cylinder pivot

2шт.

32

S229548

BUSHING

- too pivot

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

CYLINDER ASSEMBLY - arm, parts list Fig. 254

1шт.

35

G105176

CYLINDER

ASSEMBLY - tool, parts list Fig. 258

1шт.
