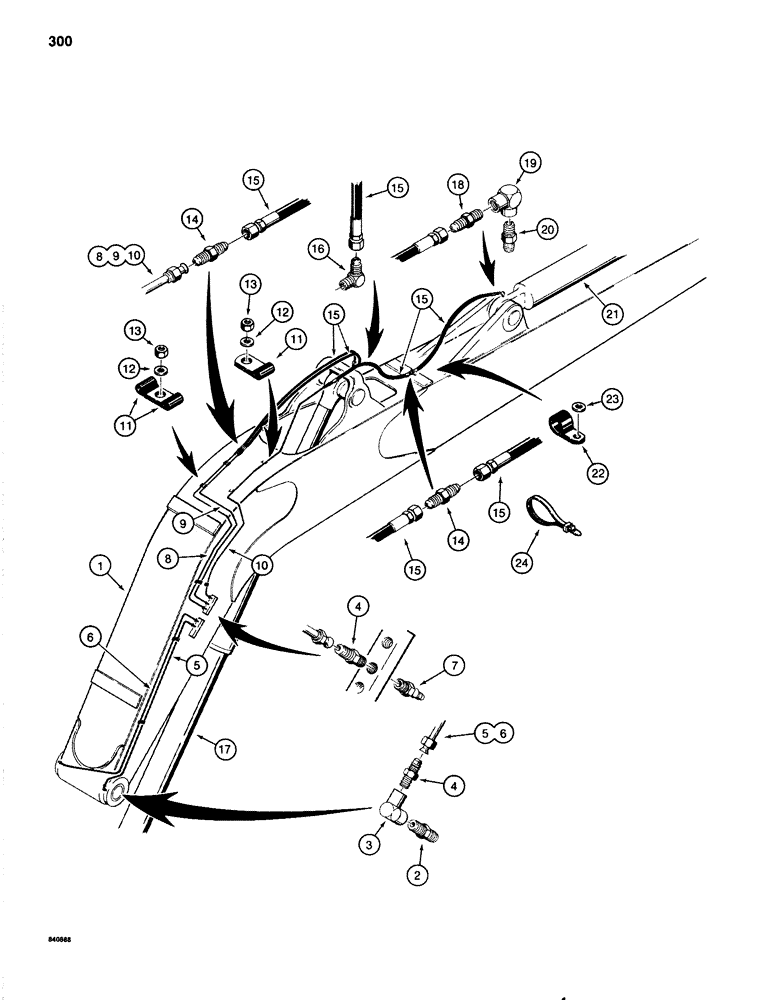

Запчасти Case 1080 (300) - E BOOM LUBRICATION LINES (84) - BOOMS, DIPPERS & BUCKETS

1

REF

INSTRUCTION

BOOM - E, Fig. 298

1шт.

2

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE - male, 1/8" NPT

2шт.

3

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- female, 90 degree, 1/8" NPT

2шт.

4

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT x 1/4" tube OD

7шт.

5

S242104

TUBE,6.35 mm OD

- lower, right-hand

1шт.

6

S242105

TUBE ASSY.,6.35 mm OD

TUBE - lower, left-hand

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

5шт.

8

S516562

TUBE ASSY.,6.35 mm OD

TUBE - upper, left-hand

1шт.

9

S516561

TUBE ASSY.,6.35 mm OD

TUBE - upper, center

1шт.

10

S516560

TUBE,6.35 mm OD

- upper, right-hand

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, 1/4" diameter

16шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

10шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

10шт.

14

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 7/16" - 20 NF

4шт.

15

S77467

HOSE

- to cylinders, 38" (965 mm) long

4шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, at boom cylinder

2шт.

17

G105657

CYLINDER

- boom, parts list Fig. 252

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 1/8" NPT

1шт.

19

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- female, 90 degree, 1/8" NPT

1шт.

20

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE - male, 1/8" NPT

1шт.

21

G105662

CYLINDER

- arm, parts list Fig. 257

1шт.

22

T42284

CLAMP

- arm cylinder lubrication, Serial Range: hose-boom

1шт.

23

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
