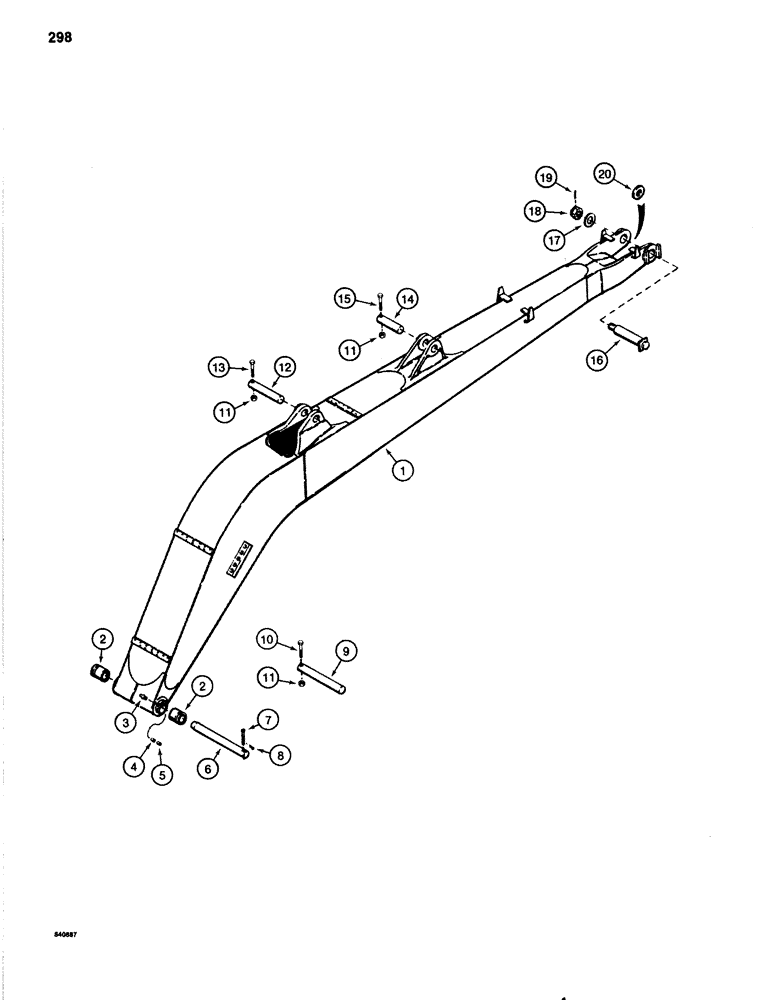

Запчасти Case 1080 (298) - E BOOM AND PINS (84) - BOOMS, DIPPERS & BUCKETS

1

S955838

BOOM - E, weldment frame assembly, Includes: Ref.#s2 - 5

1шт.

2

S511922

BUSHING

- boom mounting

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - stright, 1/8" NPT, remove when attaching lubrication lines

2шт.

4

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cone point, bushing retaining, inner

2шт.

5

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8' - 16 NC x 3/8", cup point, bushing retaining, outer

2шт.

6

S233785

PIN

- boom to turntable, Serial Range: -6271406

1шт.

6

S242329

PIN

- boom to turntable, Start Serial: 6271406

1шт.

7

S83936

PIN

CLEVIS PIN - 3/4" diameter x 6-1/4" grip length, Serial Range: -6271406

1шт.

7

S87319

PIN

CLEVIS PIN - 3/4" diameter x 5-1/4" grip length, Start Serial: 6271406

1шт.

8

132-73

COTTER PIN,5/32" x 1 1/2"

PIN - Split (Cotter), 5/32" x 1 1/2"

1шт.

9

S233787

PIN

- boom, Serial Range: cylinder-turntable

1шт.

10

26-892

CAPSCREW,Hex, 1/2" - 13 x 5 3/4", Gr 8

BOLT - hex head, 1/2" - 13 NC x 5-3/4", grade, Serial Range: -6271406

1шт.

10

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8, Start Serial: 6271406

1шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

12

S236093

PIN

- boom, Serial Range: cylinder-boom

1шт.

13

26-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex head, 1/2" - 13 NC x 4-3/4", grade 8

1шт.

14

S233798

PIN

- arm, Serial Range: cylinder-boom

1шт.

15

26-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 8

- hex head, 1/2" - 13 NC x 5-1/4", grade 8

1шт.

16

S233712

LARGE PIN

PIN -, Serial Range: boom-arm

1шт.

17

S110511

WASHER

- flat

1шт.

18

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

CASTLE NUT - 2" - NC threads

1шт.

19

132-208

COTTER PIN,3/8" x 4"

Pin, Split (Cotter), 3/8" x 4"

1шт.

20

S111775

WASHER

SHIM - 2-1/2" ID x 4-1/2" OD x 1/8" thick

1шт.

20

S112015

WASHER

SHIM - 2-3/4" ID x 5" OD x 1/8" thick

1шт.

20

S111776

WASHER

SHIM - 3" ID x 5" OD x 1/8" thick

1шт.

20

S111777

WASHER

SHIM - 2-1/2" ID x 4-1/2" OD x 1/16" thick

1шт.

20

S112014

WASHER

SHIM - 2-3/4" ID x 5" OD x 1/16" thick

1шт.

20

S111778

WASHER

SHIM - 3" ID x 5" OD x 1/16" thick

1шт.
