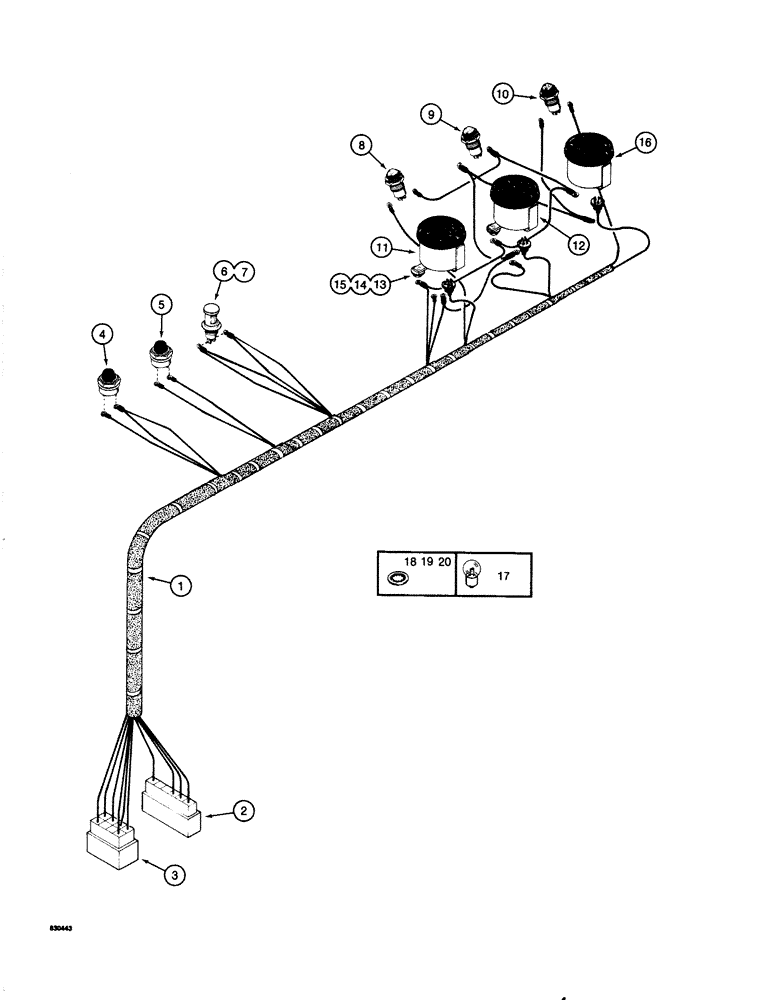

Запчасти Case 1080 (106) - ELECTRICAL HARNESS - RIGHT-HAND CONSOLE (55) - ELECTRICAL SYSTEMS

1

S615775

HARNESS

- right-hand console, Includes: Ref.#s2 & 3, Serial Range: -6271525

1шт.

1

S618807

HARNESS

- right-hand console, used on PIN 6271525 - 6271673, not shown, Includes: Ref.#s2 & 3

1шт.

The low oil pressure buzzer is connect to S618807 harness used on P.I.N. 6271525 - 6271674 only. After P.I.N. 6271674 the low oil pressure buzzer is connected to the turntable harness. See Figure 98 for the buzzer part number.

1шт.

1

S618934

HARNESS

- right-hand console,not shown, Includes: Ref.#s2 & 3, Start Serial: 6271674

1шт.

2

223-170

CONNECTOR, ELEC

CONNECTOR - female, 6 terminals

1шт.

3

223-172

CONNECTOR, ELEC

CONNECTOR - female, 8 terminals

1шт.

4

S241920

SWITCH

- coldstart button, if used

1шт.

5

S241920

SWITCH

- horn

1шт.

6

S239151

LIGHT

LAMP - panel

1шт.

7

A25258

BULB

- panel lamp

1шт.

8

S239150

LIGHT

WARNING LAMP - hydraulic filter

1шт.

9

S239149

LIGHT

WARNING LAMP - key switch on, Serial Range: -6271525

1шт.

9

S242610

LIGHT

WARNING LAMP - low oil pressure, Start Serial: 6271525

1шт.

10

S239148

LAMP

WARNING LAMP - drive brake on

1шт.

11

S239139

GAUGE

- oil pressure, Serial Range: -6271525

1шт.

12

S239138

GAUGE

- engine temperature

1шт.

13

S108406

RESISTOR

- oil pressure and engine temperature gauges

1-2шт.

14

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1-2шт.

15

129-37

NUT,#10-32

1-2шт.

16

S239336

VOLTMETER

- battery

1шт.

17

S116543

BULB

- gauges and voltmeter

2-3шт.

18

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #10

1шт.

19

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #8

1шт.

20

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Switch and gauge terminals Int Tooth, #6

1шт.
