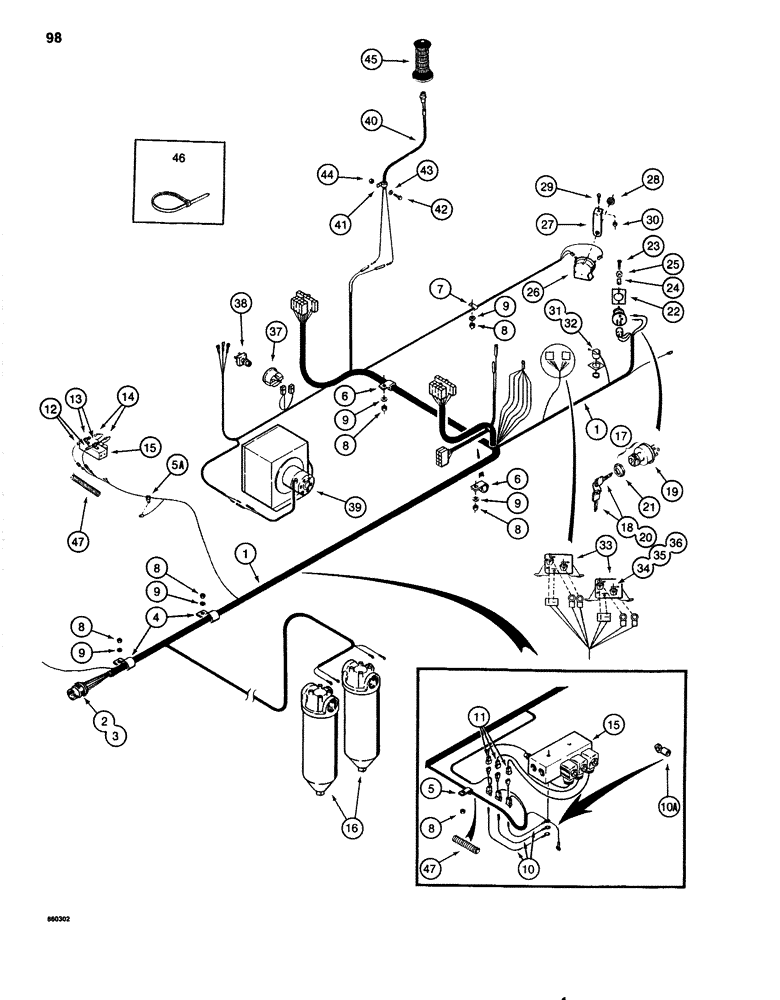

Запчасти Case 1080 (098) - ELECTRICAL HARNESS - CAB AND TURNTABLE (55) - ELECTRICAL SYSTEMS

1

S618338

HARNESS

- turntable, Includes: Ref.#s2 & 3, Serial Range: -6271674

1шт.

1

S618923

HARNESS

- turntable, Includes: Ref.#s2 & 3, Start Serial: 6271674

1шт.

#1 S618923 HARNESS USES PLUG S120488 WHICH IS A ROUND RECEPTACLE WITH 9 PINS- 8 AROUND EDGES AND ONE IN THE MIDDLE

1шт.

2

S107264

CONNECTION,ELECTRIC

PLUG - electrical, harness, Includes: Ref.#3

1шт.

3

S99516

CONTACT

PIN - plug, not shown

8шт.

4

R14668

CLAMP

- harness, rear

2шт.

5

S64985

CLAMP

- wire to solenoid control valve, used on some models, Serial Range: -6271674

1шт.

5a

S77322

CLAMP

- wire to solenoid control valve, Start Serial: 6271674

1шт.

6

T50103

CLAMP

- harness, front

2шт.

7

A61275

CLIP

CLAMP - horn wire

1шт.

8

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

5-6шт.

9

195-52

WASHER

- flat, 3/8"

5шт.

10

S238309

DIODE

WIRE - diode, Serial Range: -6271674

2-3шт.

10a

223-56

TERMINAL CONNECTOR,10 - 12

- wires, if used

1шт.

11

S117294

ROD, CONNECTING

CONNECTOR - solenoid control valve wires, Serial Range: -6271674

2-3шт.

12

S242833

HARNESS

WIRE - diode, Start Serial: 627167

3шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- diode wires to solenoid control valve, Start Serial: 627167

3шт.

14

S117294

ROD, CONNECTING

TERMINAL - solenoid valve wires, Start Serial: 6271674

3шт.

15

REF

INSTRUCTION

SOLENOID CONTROL VALVE - parts list Fig. 234

1шт.

16

S616066

FILTER

- hydraulic oil, parts list Fig. 250, Includes: Ref.#s17 & 18

2шт.

17

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

18

R30074

SET

KEYS - set of two

1шт.

L61053

IGNITION SWITCH

KEY SWITCH ASSEMBLY - electrical system, Includes: Ref.#19 - 21, Start Serial: 6271674

1шт.

19

NSS

NOT SOLD SEPARAT

KEY SWITCH - electrical system

1шт.

20

A77313

SET OF 2 KEYS

KEYS - set of two

1шт.

21

A77314

NUT

- hex, special, key switch mounting

1шт.

22

S239946

PLATE

- switch mounting, Serial Range: -6271674

1шт.

23

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

PLATE - switch mounting, Start Serial: 6271674

2шт.

24

S117167

CLIP

NUT - U-type, No. 10 - 24 NC, Serial Range: -6271674

2шт.

24

131-143

SPRING NUT,Tinn, U, #10-24

, Start Serial: 6271674

2шт.

25

F64315

WASHER

- special finishing, if used

2шт.

26

D77650

HORN

- electrical

1шт.

27

S203190

BRACKET

- horn mounting

1шт.

28

L30866

LOCK NUT

- horn mounting

1шт.

29

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

31

S242611

ALARM

BUZZER - low oil pressure, used on PIN 6271525 and after, connects to the right-hand instrument panel on some models

1шт.

32

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Used on buzzer terminals Int Tooth, #6

2шт.

33

L115883

RELAY

- electrical, used on PIN 6271674 and after, for relay, Figs. 90 & 92, Serial Range: -6271674

2шт.

34

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

4шт.

35

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

37

S515551

HOURMETER

- electric, screw terminals, if used

1шт.

37

S516994

GAUGE

HOURMETER - electric, spade terminals, if used

1шт.

38

REF

INSTRUCTION

SWITCH - heater, if used, supplied with heater, Fig. 110 for heater parts list

1шт.

39

S242826

HEATER

- cab, if used, parts list Fig. 108

1шт.

40

S242036

SWITCH

AND WIRE - fast hoist

1шт.

41

49851

SHIELD

- fast hoist switch wire

1шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

43

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

44

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

45

S119987

GRIP

- control lever, Figs. 266 or 268 for hand lever controls

1шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15" nylon

1шт.

47

REF

INSTRUCTION

SLEEVE - wire, 17" (432 mm) long before PIN 6271674 or 20" (508 mm) long on PIN 6271674 and after, cut from S119717

1шт.

Sleeve, bulk roll, 1" (25mm) ID x 192" (4878mm) long

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (4878 mm) long

1шт.
