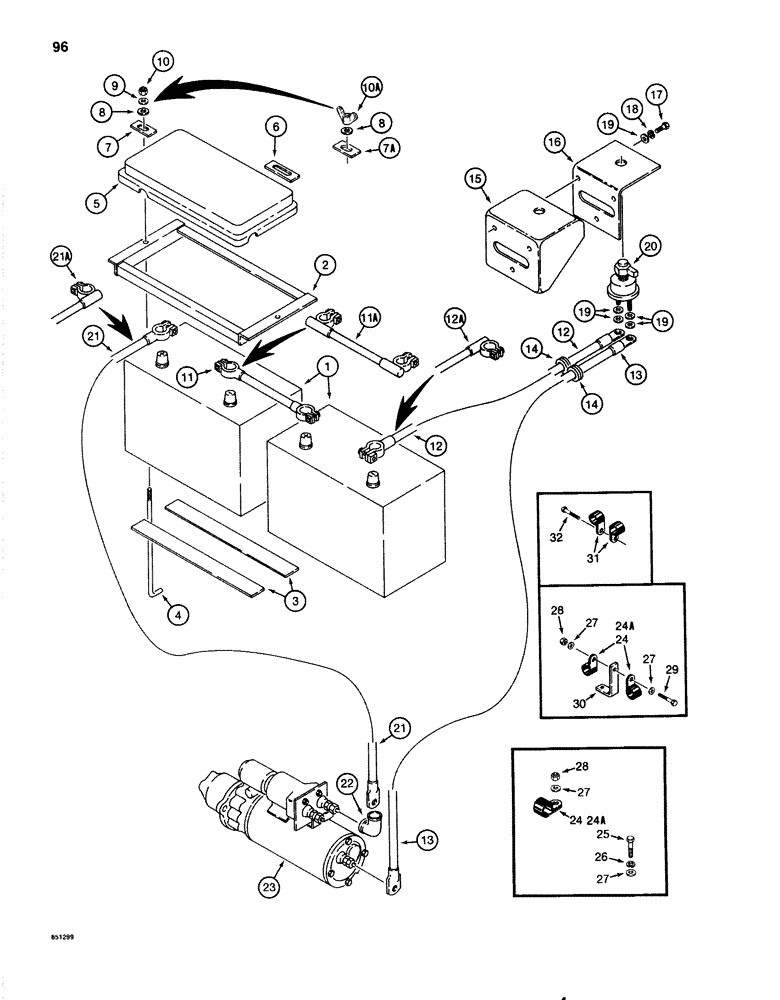

Запчасти Case 1080 (096) - BATTERIES, BATTERY MOUNTING, AND CABLES, MODELS WITH BATTERY (55) - ELECTRICAL SYSTEMS

1

A180406

BATTERY

- 12 volt

2шт.

2

S516909

BRACKET

RETAINER - battery

2шт.

3

S117291

STRIP

- rubber

4шт.

4

S75713

STUD

- battery hold down

4шт.

5

S516809

COVER ASSY

COVER - battery

2шт.

6

S120108

STRIP

TAB - cover mounting, center, if used

1шт.

7

S120085

STRIP

TAB - cover mounting, ends, used on ends of long hold down studs only

2шт.

7a

S120564

MOUNTING PARTS

TAB - cover mountin, ends, used on short studs on battery covers

2шт.

8

195-104

WASHER,3/8"

- flat, , plated 3/8"

2-4шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18NC, plated

4шт.

10a

129-419

WING NUT,5/16"-18

- 5/16" - 18 NC, plated

2шт.

11

S242533

CABLE ASSY.

CABLE - battery to battery, 8" (203 mm) long, stright terminals, if used

1шт.

11a

S242728

CABLE

- battery to battery, 6 1/8" (156 mm) long, 90 degree ends if used

1шт.

12

S242028

CABLE

- battery to switch, negative, 28" (703 mm) long, straight terminals at battery post, if used

1шт.

12a

S242729

CABLE

- battery to switch, negative, 28" (711 mm) long, 90 degree terminal at battery post, if used

1шт.

14

D51643

GROMMET

-, Serial Range: cables-cab

2шт.

15

S516840

MOUNTING PARTS

BRACKET - plastic

1шт.

16

S242564

ANGLE

BRACKET - metal, no longer used, not required

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8"

7шт.

20

D75385

IGNITION SWITCH

SWITCH - battery disconnect

1шт.

21

S242717

CABLE

- battery to starter solenoid, positive, 114" (2896 mm) long, straight terminal at battery post, if used

1шт.

21a

S242730

CABLE

- switch to starter, positive, 118 1/8" (3000 mm) long, 90 degree terminal at battery post, if used

1шт.

22

S115407

BOOT

- rubber, positive cable at starter solenoid

1шт.

23

REF

INSTRUCTION

STARTER - engine, parts list Figs. 84 and 86, for Case engine, for Detroit Diesel engine, see an authorized Detroit Diesel Allison service outlet

1шт.

24

49885

CLAMP

- battery cables, 5/8"

3шт.

24a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- battery cables, 3/4"

4шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clamp at battery box Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

5шт.

28

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16NC, plated

3шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

30

S241921

BRACKET

- cable clamps, at rear of hydraulic reservoir

1шт.

31

T42284

CLAMP

- battery cables, at engine

2шт.

32

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.
