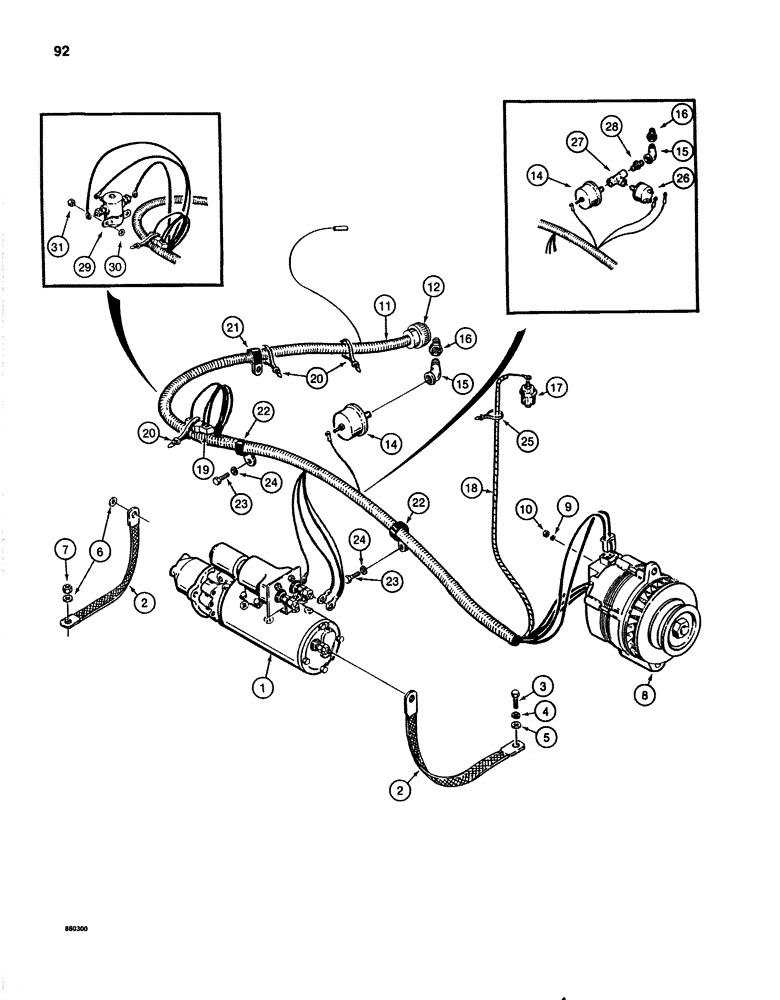

Запчасти Case 1080 (092) - DETROIT DIESEL ENGINE ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - furnished with engine, for service see an authorized Detroit Diesel Allison service outlet

1шт.

2

S229640

CABLE

STRAP - ground, starter to engine and, Serial Range: engine-turntable

2шт.

3

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Ground strap to engine Hex, 7/16"-14 x 1", G5, Full Thd

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Ground strap to engine 7/16"

1шт.

5

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, ground strap to engine

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, ground strap to engine and turntable

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, ground strap to turntable

1шт.

8

REF

INSTRUCTION

ALTERNATOR - electrical, parts list Figs. 80 & 82, mounting brackets on Fig. 88

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Alternator output terminal 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Alternator output terminal

1шт.

11

S614351

HARNESS

- engine, Serial Range: -6271525

1шт.

11

S618803

HARNESS

- engine, used on PIN 6271525-6271673

1шт.

11

S618941

HARNESS

- engine, Includes: Ref.#12 & 13, Start Serial: 6271674

1шт.

12

S107265

PLUG

CONNECTOR - harness, part of each harness above, Includes: Ref.#13

1шт.

13

S99513

CONTACT

- connector, female, not shown

8шт.

14

S108398

TRANSMITTER

SENDER - engine oil pressure, Serial Range: -6271525

1шт.

14

S242648

SWITCH

SENDER - engine oil pressure, Start Serial: 6251525

1шт.

15

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

16

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8", at engine

1шт.

17

S108396

SENDER UNIT

SENDER - engine temperature

1шт.

18

REF

INSTRUCTION

LOOM - engine temperature sending wire, 21" (533 mm) long, cut from S118377

1шт.

Loom, bulk roll, 240" (6096mm) long, P/N S118377

1шт.

19

S237284

RESISTOR

- alternator circuit

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

R14668

CLAMP

- harness

1шт.

22

S88820

CLAMP

- harness

2шт.

23

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

S73387

CLIP

TIE STRAP - temperature sending wire

1шт.

26

S63884

SWITCH

- hourmeter, oil pressure activated, Serial Range: -62711674

1шт.

27

217-1160

TEE,1/8"-27 Female

- sender, 1/8" NPT, used with Ref.# 26

1шт.

28

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR - straight, 1/8" NPT, used with Ref.# 26

1шт.

29

S240588

SOLENOID SWITCH

RELAY - starter, Serial Range: -6271674

1шт.

30

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

31

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" 20 NC, plated

2шт.

S118377

LOOM

- bulk roll, 240" (6096 mm) long

1шт.
