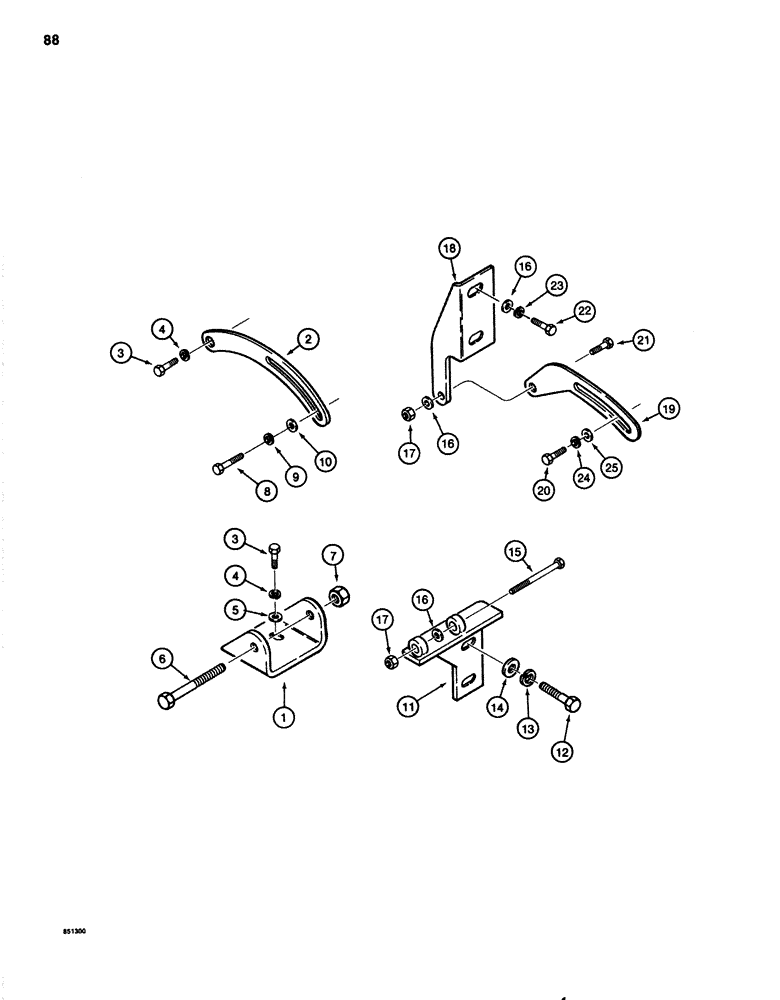

Запчасти Case 1080 (088) - ALTERNATOR MOUNTING PARTS, ALTERNATOR MOUNTING - CASE ENGINE (55) - ELECTRICAL SYSTEMS

1

A160391

BRACKET

- alternator mounting

1шт.

2

S242605

STRAP

- alternator adjusting

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 3/4"

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

6

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 1/2" - 13 NC x 3"

1шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16"

1шт.

11

S239432

BRACKET

- alternator mounting, lower, detroit diesel engine

1шт.

12

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Alternator mounting, Detroit diesel engine Hex, 7/16"-14 x 1 1/4", G5

2шт.

13

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Alternator mounting, Detroit diesel engine 7/16"

2шт.

14

195-104

WASHER,3/8"

- flat, 7/16", alternator mounting, detroit diesel engine

2шт.

15

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 3 3/4", G5

1шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", alternator mounting, detroit diesel engine

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, alternator mounting, detroit diesel engine

2шт.

18

S239091

BRACKET

- alternator strap, upper, alternator mounting, detroit diesel engine

1шт.

19

S200898

STRAP

- alternator adjusting, alternator mounting, detroit diesel engine

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Alternator mounting, Detroit diesel engine Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Alternator mounting, Detroit diesel engine Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Alternator mounting, Detroit diesel engine 3/8"

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator mounting, Detroit diesel engine 5/16"

1шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16", alternator mounting, detroit diesel engine

1шт.
