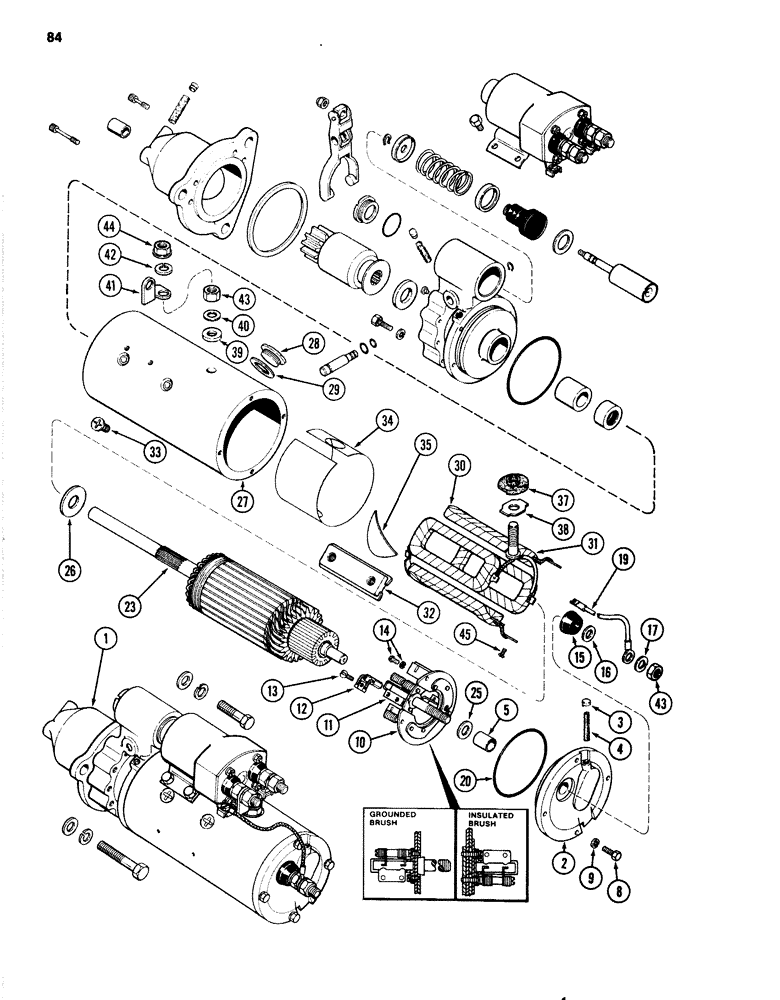

Запчасти Case 1080 (084) - R45968 STARTER, 504BDT DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

R45968

STARTER MOTOR

STARTER ASSEMBLY - (Delco-Remy No. 1114872), Includes: Ref.#s2 - 92

1шт.

1

A47500

REMAN-STARTER

STARTER ASSEMBLY - remanufactured

1шт.

1

A47501

CORE-STARTER

RETURN NUMBER - use this part no. to return starter core for credit

1шт.

1

104214A1R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104214A1C

CORE-STARTER

Return Number

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value, 24V, 5.5KW

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Remanufactured STARTER 24 volt, 5.5KW

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

A47887

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref.#3 - 5

1шт.

3

A47889

PLUG

PLUG - oil wick hole

1шт.

4

A47888

WICK

WICK - oil

1шт.

5

A57633

BUSHING - frame

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A47891

PLATE

PLATE ASSEMBLY - brush holder, Includes: Ref.#11

1шт.

11

A47892

SPRING

SPRING - brush tension

4шт.

12

A47893

BRUSH, COMMUTATOR

BRUSH BRUSH - starter (Replaces A47983)

4шт.

13

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush mounting

4шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

SCREW - plate mounting (includes lock washer)

3шт.

15

A43701

BUSHING

BUSHING - insulating, terminal

1шт.

16

D30006

WASHER

WASHER - stud

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

A47895

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: terminal-solenoid

1шт.

20

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - end frame, 4-1/8 x 4-3/8 x 1/8" (105 x 111 x 3 mm)

1шт.

23

A41458

ARMATURE

ARMATURE

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust, commutator end

1шт.

26

A40892

WASHER

WASHER - thrust, center

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

PLUG - inspection

2шт.

29

A41924

GASKET

GASKET - plug

2шт.

30

A47847

COIL

COIL ASSEMBLY - field, Includes: Ref.#31

1шт.

31

A40896

STUD

STUD - terminal

1шт.

32

R15115

SHOE

SHOE - pole

4шт.

33

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - Phillips head, 3/8 NF x 5/8 "

8шт.

34

A44169

INSULATOR

INSULATOR - coil terminal

1шт.

35

A41977

RUBBER INSULATOR

INSULATOR - coil end

1шт.

A41925

BUSHING

BUSING ASSEMBLY - field coil terminal, Includes: Ref.#37 & 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - insulator

1шт.

39

D30005

INSULATOR

INSULATOR - outer, field terminal

1шт.

40

D30006

WASHER

WASHER - terminal

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

42

A41971

WASHER

WASHER - terminal stud insulator

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

44

A47890

NUT

NUT - hex, special, 1/2" NC

2шт.

45

A47894

SCREW,#8 - 32 x 5/16"

SCREW - coil lead to brush holder

2шт.

R45968

STARTER MOTOR

STARTER ASSEMBLY - (Continued from Fig. 84)

1шт.

47

A47897

PLUG

PLUG - lever housing, rubber

1шт.

48

A47896

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref.#s49 - 56

1шт.

49

A47842

PUMP

BUSHING - armature

1шт.

50

R21582

OIL SEAL

SEAL - oil

1шт.

51

R15145

DISC

WASHER - brake

1шт.

55

A47889

PLUG

PLUG - oil wick

1шт.

56

A47888

WICK

WICK - oil

1шт.

57

R21587

PLUG

PLUG - lever housing

1шт.

58

A41924

GASKET

GASKET - plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

64

A47523

DRIVE

LEVER - shifter

1шт.

65

D32547

LEVER

LEVER - shifter

1шт.

66

A42199

PIN

STUD - pivot, shift lever

1шт.

67

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - small, pivot stud

1шт.

68

A47258

O-RING,0.369" ID x 0.515" OD

O-RING - large, pivot stud

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot stud #37, Ext

1шт.

70

A47898

HOUSING

HOUSING ASSEMBLY - drive end, Includes: Ref.#71 - 76

1шт.

71

A47257

BUSHING

BUSHING - armature

1шт.

75

A47889

PLUG

PLUG - oil wick

1шт.

76

A47888

WICK

WICK - oil

1шт.

77

R21562

GASKET

GASKET - drive end to shifter housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing, short

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing, long

5шт.

83

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - service as complete assembly

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid

4шт.

85

A42309

PLUNGER

PLUNGER - solenoid

1шт.

86

A42308

BOOT

BOOT - plunger

1шт.

87

A41922

WASHER

SEAT - boot

1шт.

88

A41242

SPRING

SPRING - plunger return

1шт.

89

A43380

BACK-UP RING

SEAT - spring, inner

1шт.

90

A43419

SEAT

SEAT - spring, outer

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , spring retainer #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever

1шт.

45

A47894

SCREW,#8 - 32 x 5/16"

SCREW - coil lead to brush holder

2шт.
