Запчасти Case 1080 (108) - HEATER AND HOSES (50) - CAB CLIMATE CONTROL

1

S242826

HEATER

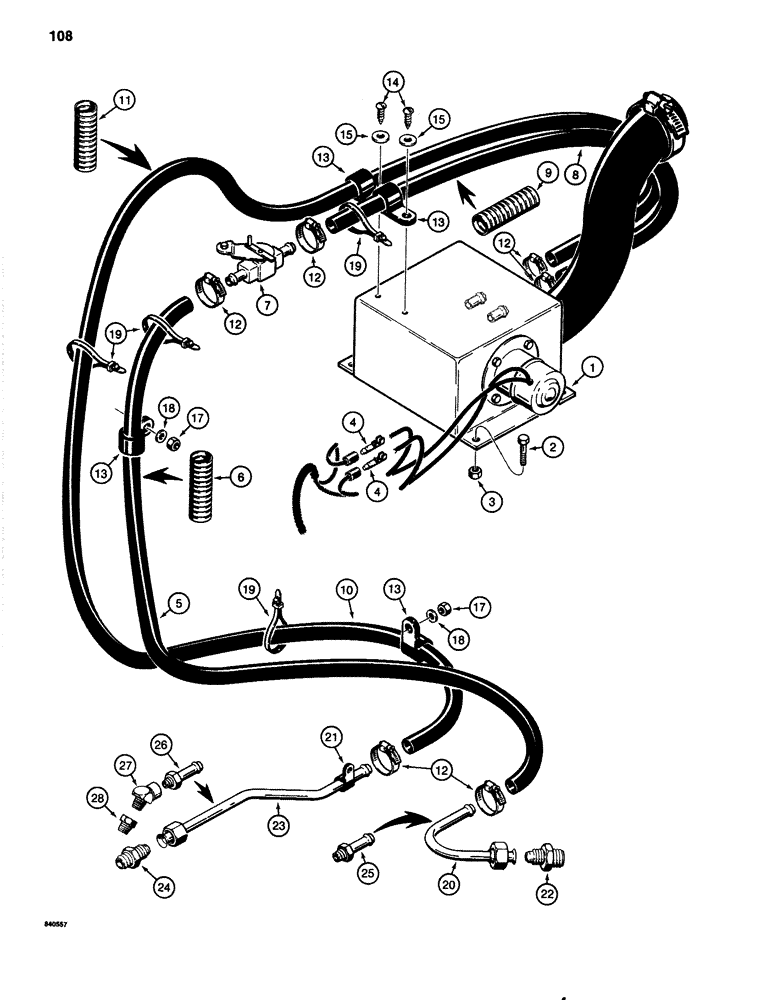

ASSEMBLY - parts list Fig. 100

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

223-191

TERMINAL CONNECTOR,14 - 16

CONNECTOR - electrical female

2шт.

5

REF

INSTRUCTION

HOSE - engine to shutoff valve, 110" 2794 mm) long with Case engine, 125" (3175 mm) long with Detroit Diesel engine, cut from A42610

1шт.

Hose- bulk roll 5/8" (16mm) ID x 50' (15.24cm) long, P/N A42610

1шт.

6

REF

INSTRUCTION

SLEEVE - hose, 75" (1905 mm) long with Case engine, 122" (3099 mm) long with Detroit Diesel engine, cut from S119717

1шт.

Sleeve - bulk roll, 1" (25cm) ID x 192" (4878mm) long, P/N S119717

1шт.

7

S223937

VALVE

- heater shutoff

1шт.

8

REF

INSTRUCTION

HOSE - shutoff valve to heater, 24" (610 mm) long, cut from A42610

1шт.

Hose- bulk roll 5/8" (16mm) ID x 50' (15.24cm) long, P/N A42610

1шт.

10

REF

INSTRUCTION

HOSE - heater outlet to engine, 150" (3810 mm) long with Case engine, 157" (3988 mm) long with Detroit Diesel einge, cut from A42610

1шт.

Hose- bulk roll 5/8" (16mm) ID x 50' (15.24cm) long, P/N A42610

1шт.

11

REF

INSTRUCTION

SLEEVE - hose, 94" (2387 mm) long with Case engine, 154" (3912 mm) with Detroit Diesel einge, cut from S119717

1шт.

Sleeve - bulk roll, 1" (25cm) ID x 192" (4878mm) long, P/N S119717

1шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

13

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hoses at top of heater

2шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 x 3/4"

2шт.

15

195-513

WASHER,#10

- flat, No. 10

2шт.

16

R14668

CLAMP

- hoses

2-4шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", if used

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15", nylon

1шт.

20

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- engine outlet, Case engine only, parts

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- S231777 tube to throttle cable bracket, parts used with case engine

1шт.

22

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - straight, parts used with case engine

1шт.

23

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- return to engine, parts used with case

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, parts used with case engine

1шт.

25

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - straight, engine outlet, parts used with detroit diesel

1шт.

26

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - straight, return to engine, parts used with detroit diesel

1шт.

27

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

STREET ELBOW - 45 degree, 1/2" NPT, parts used with detroit diesel

1шт.

28

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- return to engine, parts used with detroit diesel

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50' (15.24 cm) long

1шт.

S119717

CONDUIT

SLEEVE - bulk roll, 1" (25 mm) ID x 192" (4878 mm) long

1шт.
