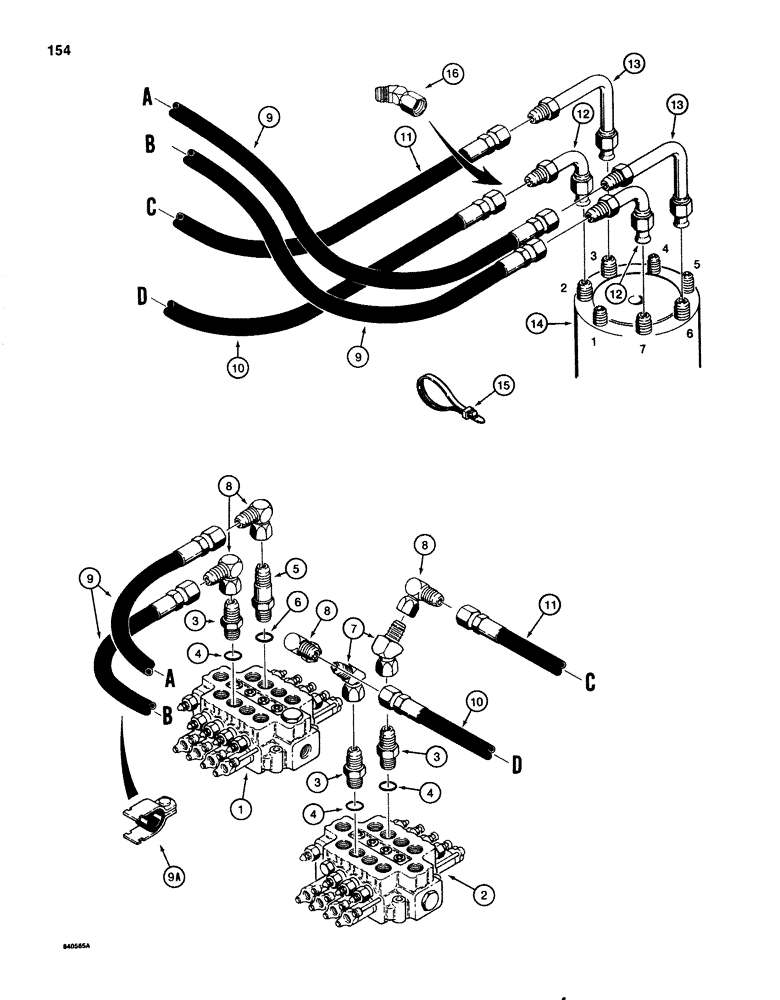

Запчасти Case 1080 (154) - TRACK DRIVE HYDRAULIC LINES - UPPER (48) - TRACKS & TRACK SUSPENSION

1

REF

INSTRUCTION

CONTROL VALVE - outside, see Fig. 220 for correct valve and component parts

1шт.

2

REF

INSTRUCTION

CONTROL VALVE - inside, see Figs. 216 & 220 for correct valve and component parts

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, valve ports, Incl. Ref.#4

3шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, long, outside valve port, front, Includes: Ref.#6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, inside valve ports

2шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at valves

4шт.

9

S120470

HOSE ASSY.

HOSE - from outside valve, 72" (1829 mm) long

2шт.

9a

S98324

CLAMP

- hoses from outside valve

2шт.

10

S8628

HOSE

- from inside valve, rear port, 36" (914 mm) long

1шт.

11

S401536

HOSE

- from inside valve, front port, 30" (762 mm) long

1шт.

12

S237062

TUBE,1" OD x 6.06, 4.91" L

- to swivel ports No. 2 and No. 7

2шт.

13

S229157

TUBE,1" OD x 7.62, 8.75" L

- to swivel ports No. 3 and No. 6

2шт.

14

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Fig. 247

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, if used

1шт.
