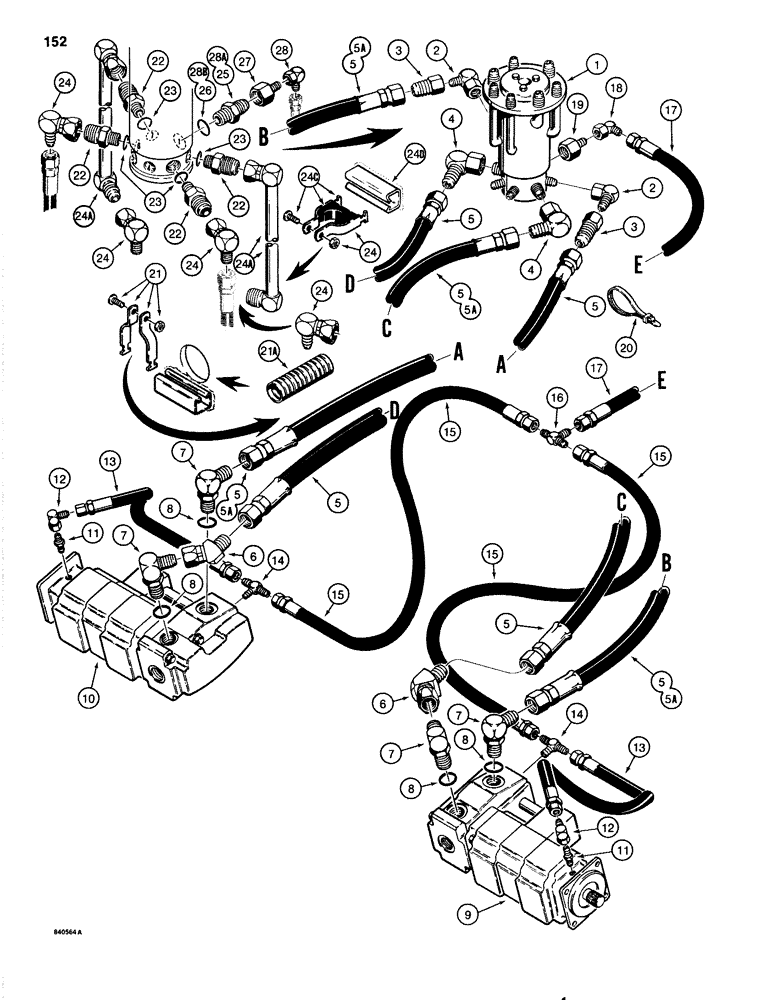

Запчасти Case 1080 (152) - TRACK DRIVE HYDRAULIC LINES - LOWER, TWO SPEED (48) - TRACKS & TRACK SUSPENSION

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Fig. 246

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at swivel ports No. 2 and No. 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

3

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

ADAPTER - straight, elbow to hose

2шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at swivel ports No. 3 and No. 6

2шт.

5

S8628

HOSE

- 36" (914 mm) long

2-4шт.

5a

S120471

HOSE ASSY.

HOSE - from ports No. 2 and 7, Start Serial: 6271525

2шт.

6

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, at drive motors, rear ports

2шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at drive motors, Incl. Ref.#8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

4шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

9

S617342

MOTOR

- hydraulic, track drive, right-hand, parts list Fig. 146

1шт.

10

S617341

MOTOR

- hydraulic track drive, left-hand, parts list Fig. 146

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - motor drain ports

2шт.

12

219-980

ELBOW - 90 degree, motor drain ports, no longer used, not required

2шт.

13

S241217

HOSE ASSY.

HOSE - motor drain ports, 21" (533 mm) long

2шт.

14

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- motor drain ports

2шт.

15

S241217

HOSE ASSY.

HOSE - tee to tee, 21" (533 mm) long

2шт.

16

218-593

TEE,9/16"-18, 37 Degree

- hose connecting

1шт.

17

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long, for clamping parts, see Fig. 156

1шт.

18

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ELBOW - 90 degree, at swivel port No. 1

1шт.

19

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

S98324

CLAMP

- hose

4шт.

21a

S119717

CONDUIT

GUARD - edge, 192" (4877 mm) long, bulk length, cut to 15" (381 mm) or 3" (76 mm) lengths for openings in undercarriage

1шт.

21a

S119717

CONDUIT

GUARD - edge, 192" (4877 mm) long, bulk length, cut to 15" (381 mm) or 3" (76 mm) lengths for openings in undercarriage

1шт.

22

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, used at swivel ports No. 2, 3, 6 and 7, lower, female, Incl. Ref.#23

4шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.

24

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, used at swivel ports No. 2, 3, 6, and 7, lower, female

2-4шт.

24a

S242618

TUBE ASSY.,1" OD x 140" L

TUBE - 14" (356 mm) long, from port No. 2, if used, with lower swivel female

1шт.

24b

S242617

TUBE ASSY.,1" OD x 12" L

TUBE - 12" (305 mm) long, from port No.7, if used, with lower swivel female

1шт.

24c

S91602

CLAMP

- tube, if used, used with lower swivel female ports

2шт.

24d

S98782

CHANNEL

- tube clamps, if used, with lower swivel female ports

1шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, used at swivel port No. 1, used with lower, female, Incl. Ref.#26, Serial Range: -6271570

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, used with lower swivel female ports

1шт.

27

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1, used with lower, female, Serial Range: -6271570

1шт.

28

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port No. 1, used with lower, female

1шт.

28a

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, At swivel port No. 1, used with lower, female, Start Serial: 6271570

1шт.

28b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.
