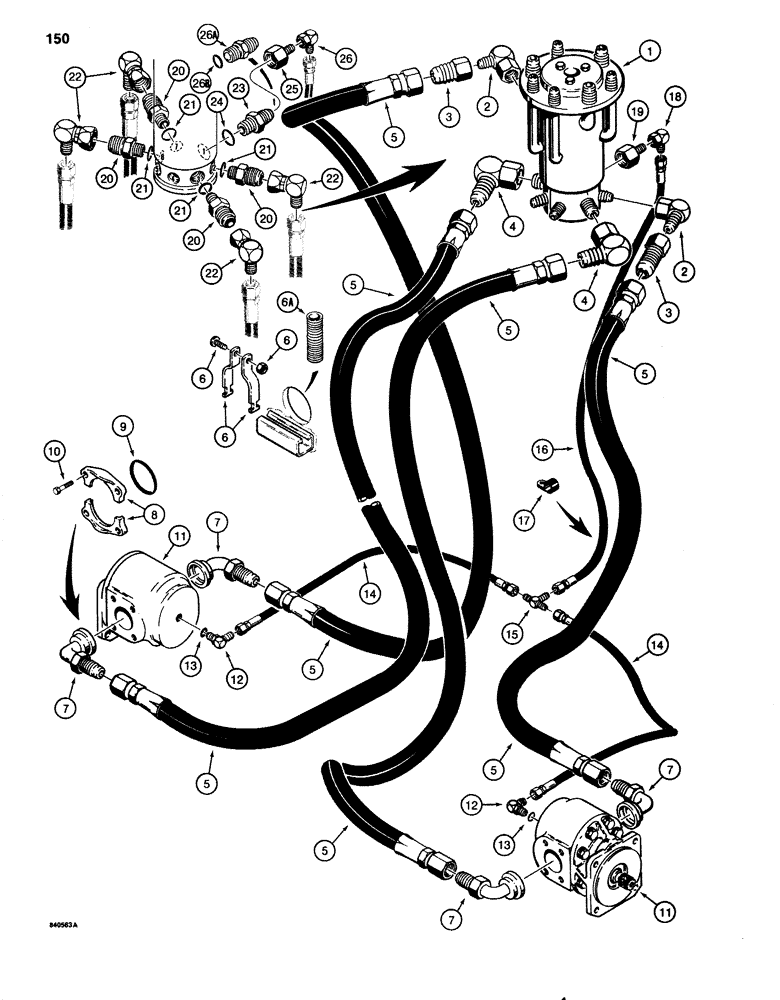

Запчасти Case 1080 (150) - TRACK DRIVE HYDRAULIC LINES - LOWER, SINGLE SPEED (48) - TRACKS & TRACK SUSPENSION

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - parts list Fig. 246

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

at swivel ports No. 2 and No. 7 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.

3

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

ADAPTER - straight, elbow to hose

2шт.

4

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, at swivel ports No. 3 and No. 6

2шт.

5

S8626

HOSE ASSY.

HOSE - track drive circuits, 60" (1524 mm) long

4шт.

6

S98324

CLAMP

- holse

4шт.

6a

S119717

CONDUIT

GUARD - edge, 192" (4877 mm) long, bulk length, cut to 13" (330 mm) or 15" (381 mm) lengths for on openings in undercarriage

1шт.

7

S234440

ELBOW

TUBE - 90 degree, split flange adapter

4шт.

8

A14157

FLANGE

SPLIT FLANGE - tube

8шт.

9

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- tube

4шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

16шт.

11

S515589

MOTOR

- hydraulic, track drive, parts list Fig. 144

2шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, motor drain ports, Includes: Ref.#13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

S241217

HOSE ASSY.

HOSE - motor drain ports, 21" (533 mm) long

2шт.

15

218-593

TEE,9/16"-18, 37 Degree

- motor drain ports

1шт.

16

S241219

HOSE ASSY.

HOSE - to swivel, 50" (1270 mm) long

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose, see Fig. 158 for clamp hardware

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port No. 1

1шт.

19

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1

1шт.

20

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, used at swivel ports No. 2, 3, 6, & 7, lower, female, Incl. Ref.#21

4шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.

22

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, used at swivel ports No. 2, 3, 6, & 7, lower, female

4шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, used at swivel port No. 1, lower, female, Incl. Ref.#24, Serial Range: -6271570

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter, lower, female

1шт.

25

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

ADAPTER - straight, at swivel port No. 1, lower, female, Serial Range: -6271570

1шт.

26

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at swivel port No. 1, lower, female

1шт.

26a

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, At swivel port No. 1, lower, female, Start Serial: 6271570

1шт.

26b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter, used with lower swivel female ports

1шт.
