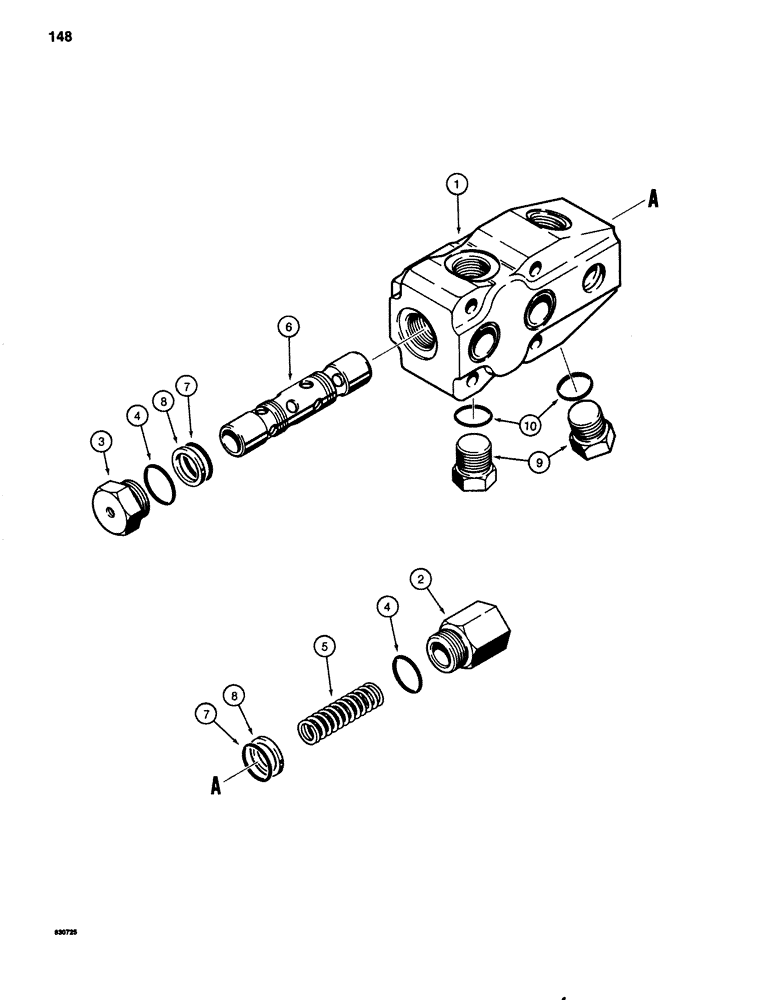

Запчасти Case 1080 (148) - TRACK DRIVE HYDRAULIC MOTORS, TWO SPEED VALVE ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

S617341

MOTOR

HYDRAULIC MOTOR ASSEMBLY - left-hand, not shown, includes parts on Fig. 146, Includes: Ref.#s1 - 10

1шт.

S617342

MOTOR

HYDRAULIC MOTOR ASSEMBLY - right-hand, not shown, includes parts on Fig. 146, Includes: Ref.#s1 - 10

1шт.

N8513

VALVE

ASSEMBLY - two speed, Includes: Ref.#s1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - spring end

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - spool end

1шт.

4

D54848

O-RING,0.864" ID x 1.004" OD

20-1, 70 Duro, 1.475" ID x .139" Thk, caps to housing

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

7

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- spool

2шт.

8

N8505

O-RING,1.374" ID x 1.598" OD x 0.119"

BACKUP RING - spool O-ring

2шт.

9

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve housing, Includes Ref. 10 Hex Hd, 1 5/16"-12 ORB

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.
