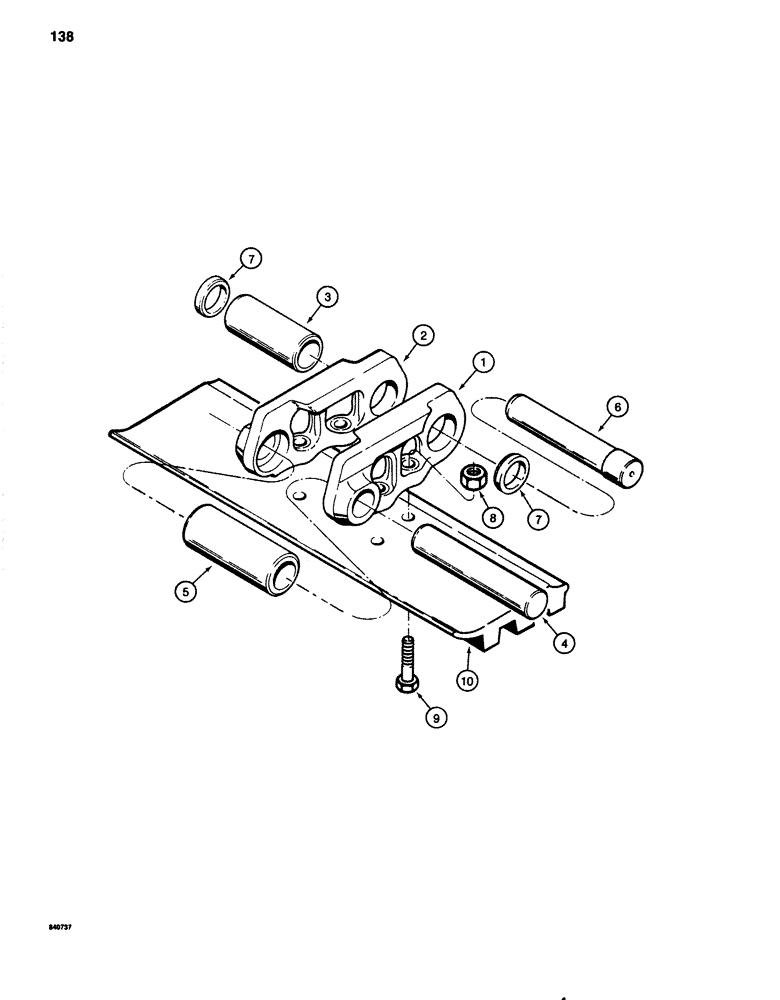

Запчасти Case 1080 (138) - TRACK SHOES, LINKS, AND PINS (48) - TRACKS & TRACK SUSPENSION

S607785

TRACK CHAIN

TRACK ASSEMBLY - excavator, with 23.62" (600 mm) track shoes, Includes: Ref.#s1 - 7

2шт.

S612991

TRACK CHAIN

TRACK ASSEMBLY - excavator, with 29.53" (750 mm) track shoes, Includes: Ref.#s1 - 7

2шт.

S229282

CHAIN (CE)

CHAIN ASSEMBLY - track, with 47 links, Includes: Ref. #s1 - 7

1шт.

1

S105786

LINK ASSY.

LINK - track, right-hand

47шт.

2

S105787

LINK ASSY.

LINK - track, left-hand

47шт.

3

S105788

BUSHING

- master

1шт.

4

S105789

PIN

- standard

46шт.

5

S105790

BUSHING

- standard

46шт.

6

S105792

AXLE PIN

PIN - master

1шт.

FIG 6 USE S101364 FOR A NARROW UNDERCARRIAGE (JF)

1шт.

7

S105791

COLLAR

SPACER - master bushing

2шт.

8

R25688

SQUARE NUT

- track shoe, special

188шт.

9

S89251

BOLT

- track shoe, special

188шт.

10

S105793

SHOE

TRACK SHOE - triple grouser, 23.62" (600 mm)

47шт.

10

S115589

SHOE

TRACK SHOE - triple grouser, 30" (508 mm)

47шт.
