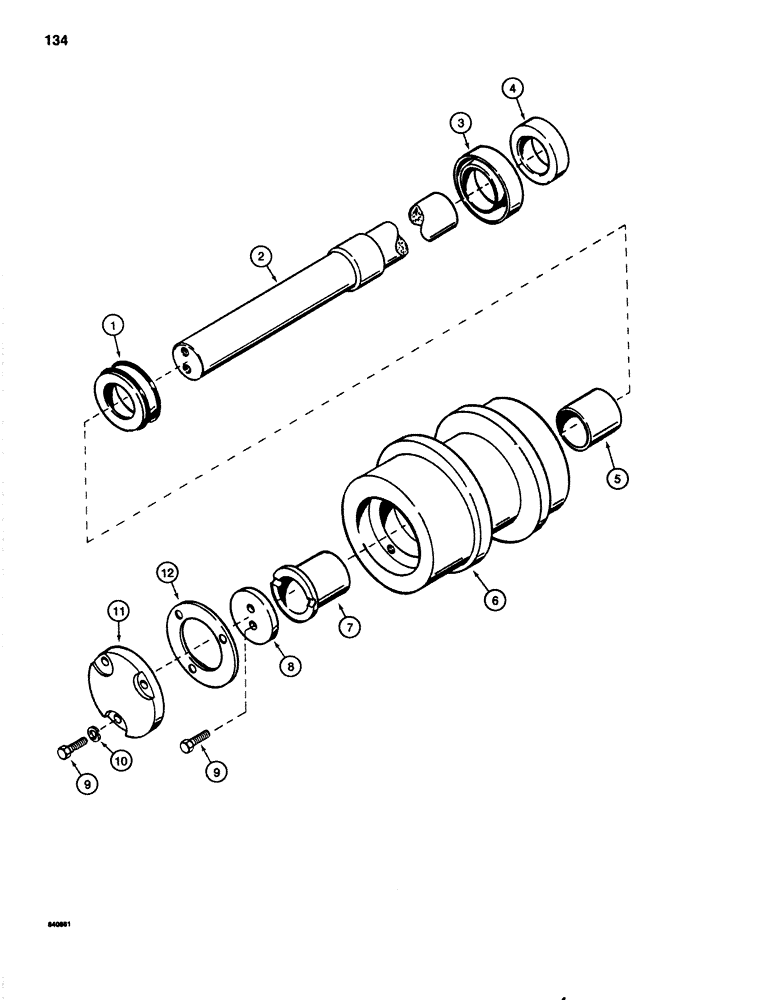

Запчасти Case 1080 (134) - TRACK CARRIER ROLLER, TYPE I (48) - TRACKS & TRACK SUSPENSION

S233033

ROLLER

CARRIER ROLLER ASSEMBLY - track, Includes: Ref.#s1 - 12

4шт.

1

R33607

SEAL

- roller

1шт.

S115319

SHAFT

ASSEMBLY - roller, Includes: Ref.#2 & 3

1шт.

2

S115320

SHAFT

- roller

1шт.

3

R33962

RETAINER

SLEEVE - shaft

1шт.

4

S115322

SPACER

- inner

1шт.

S115317

ROLLER

SHELL ASSEMBLY - roller, Includes: Ref.#5 - 7

1шт.

5

R33958

BUSHING

- inner

1шт.

6

R115318

SHELL - roller

1шт.

7

R33951

BUSHING

- outer

1шт.

8

R33960

PLATE

THRUST WASHER - roller

1шт.

9

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

10

D32117

COPPER WASHER

WASHER, COPPER, Special

3шт.

11

R33959

CYLINDER END CAP

COVER - outer

1шт.

12

R33964

GASKET

- cover

1шт.
