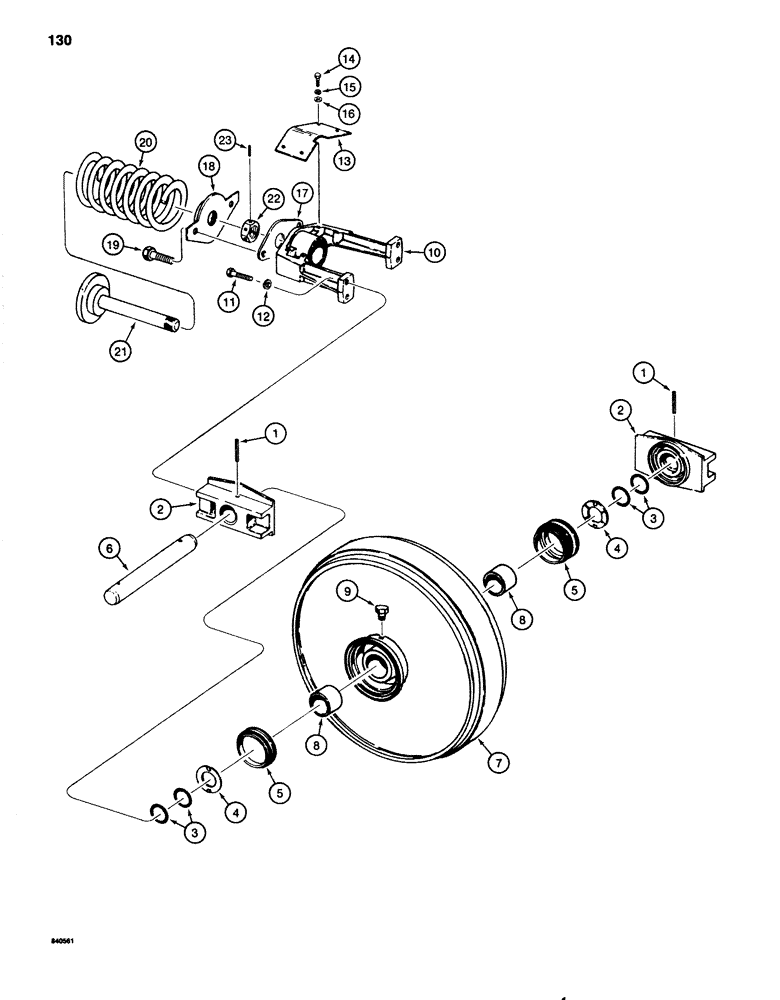

Запчасти Case 1080 (130) - TRACK ADJUSTER AND IDLER (48) - TRACKS & TRACK SUSPENSION

S503867

KIT

IDLER ASSEMBLY - track, Includes: Ref.#s1 - 9

2шт.

1

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

2шт.

2

S39261

GUIDE

BRACKET - idler assembly

2шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- idler bracket

4шт.

4

S78702

WASHER

- idler shaft

2шт.

5

S209139

SEAL

ASSEMBLY - idler assembly

2шт.

6

S241392

SHAFT

- idler

1шт.

7

S503868

FRONT IDLER

WHEEL - idler assembly, Includes: Ref.#8

1шт.

8

S78703

BUSHING

- idler wheel

2шт.

9

221-849

PLUG,Hex Soc, 1/8"-27

- filler, idler wheel

1шт.

10

S56819

YOKE

- mounting, idler wheel

2шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

13

S39342

COVER

- idler yoke

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

195-103

WASHER,5/16"

- flat, 3/8"

4шт.

17

S513780

SPACER

- yoke

2шт.

18

S232915

LARGE PLATE

PLATE - mounting, Serial Range: spring-yoke

2шт.

19

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

4шт.

20

S232895

SPRING

- track tension

2шт.

21

S232916

GUIDE

- track spring

2шт.

22

S87010

NUT

- special, spring, Serial Range: guide-plate

2шт.

23

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

2шт.
