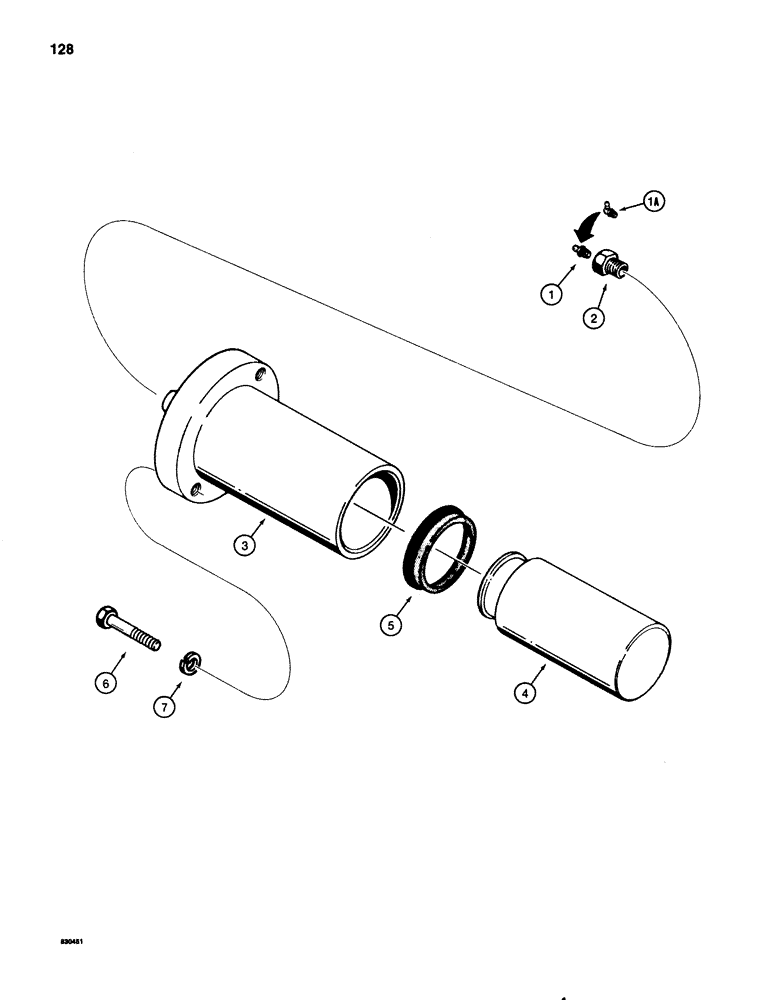

Запчасти Case 1080 (128) - TRACK ADJUSTMENT CYLINDER (48) - TRACKS & TRACK SUSPENSION

S514603

CYLINDER

ASSEMBLY - track adjustment, Includes: Ref.#s1 - 5

2шт.

S514742

CYLINDER

TUBE ASSEMBLY - cylinder, track adjuster, Includes: Ref.#1 - 3

1шт.

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, if used

1шт.

1a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder, track adjuster

1шт.

4

S239313

PISTON

- track adjuster

1шт.

5

S78837

SEAL

ASSEMBLY - piston

1шт.

6

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Track adjuster to track frame Hex, 1/2"-13 x 2", G5

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
