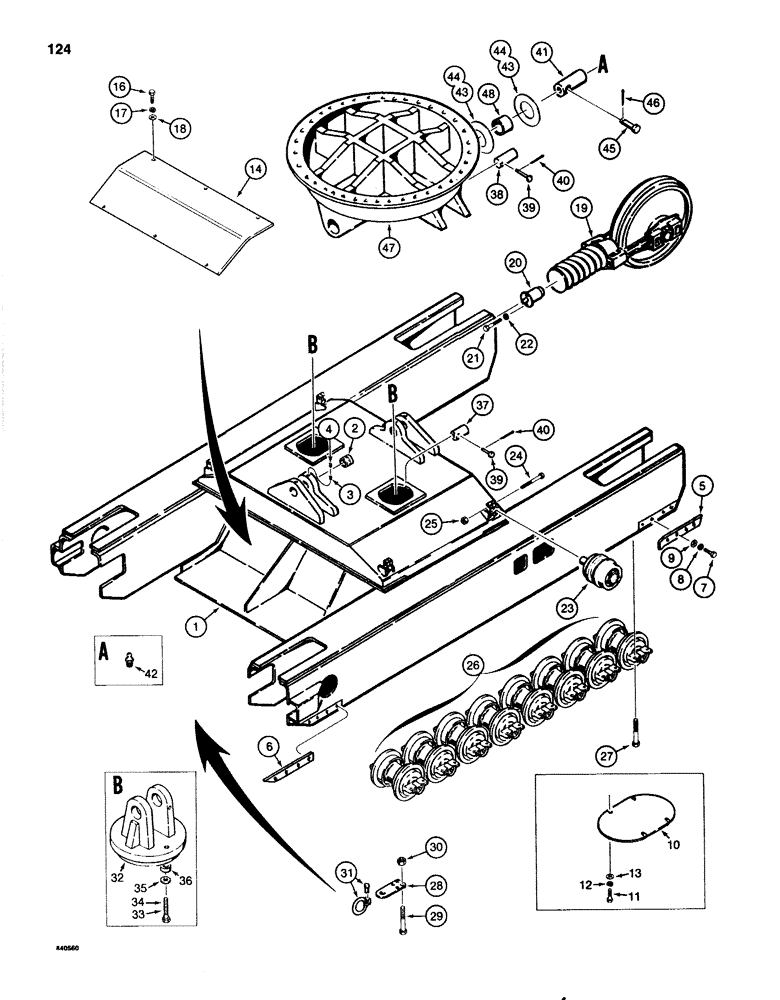

Запчасти Case 1080 (124) - CRAWLER UNDERCARRIAGE AND TRACK FRAME, MODELS WITH LEVELER (48) - TRACKS & TRACK SUSPENSION

1

S616652

LEVER

UNDERCARRIAGE - crawler excavator, Includes: Ref.#s2 - 4

1шт.

2

S202162

BUSHING

- platform, leveler mounting

4шт.

3

178-57

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

- hex socket, 3/8' - 16 NC x 3/4", cone point, bushing retaining, inner

4шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- hex socket, 3/8" - 16 NC x 3/8", cup point, bushing retaining, outer

4шт.

5

S511363

BAR

WEAR PLATE - track frame, front

2шт.

6

S511364

BAR ASSY.

WEAR PLATE - track frame, rear

2шт.

7

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex head, 1/2" - 13 NC x 1-1/2", grade 8

16шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

9

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened

16шт.

10

S237690

GUARD

- swivel, lower

1шт.

11

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

13

195-104

WASHER,3/8"

- flat, - 16 NC 3/8"

4шт.

14

S616655

GUARD

COVER - drive motors

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

18

195-105

WASHER,7/16"

- flat, 1/2"

6шт.

19

REF

INSTRUCTION

IDLER ASSEMBLY - track, parts list Figure 130

1шт.

20

S514603

CYLINDER

- track adjustment, parts list Figure 128

1шт.

21

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

S233033

ROLLER

CARRIER ROLLER - upper, parts list Figs. 132 & 134

4шт.

24

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex head, 1/2" - 13 NC x 3-3/4"

4шт.

25

131-492

NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

26

S227591

ROLLER

TRACK ROLLER - lower, parts list Fig. 136

16шт.

27

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8' - 11 NC x 3-1/2", grade 8

64шт.

28

S209710

PLATE

- drawbar, if used

1шт.

29

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4"

4шт.

30

131-450

NUT,3/4"-10

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

31

240-11

SHACKLE

CLEVIS ASSEMBLY - drawbar

1шт.

32

S617126

BRACKET

- leveler cylinder mounting

2шт.

33

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

6шт.

34

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex head, 1/2" - 13 NC x 2", grade 8

2шт.

35

S95569

WASHER

- flat, 1/2"

8шт.

36

S113313

SPACER

-, Serial Range: bracket-platform

2шт.

37

S112635

PIN

- leveler cylinder, lower

2шт.

38

S78554

PIN

- leveler cylinder, upper

2шт.

39

S61973

AXLE PIN

CLEVIS PIN - leveler cylinder pins

4шт.

40

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

41

S241595

PIN ASSY.

PIN - turntable leveler to turntable platform, Includes: Ref.#42

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

43

S111775

WASHER

- special, spacer, 1/8" (3 mm) thick

1шт.

44

S111777

WASHER

- special, spacer, 1/16" (2 mm) thick

1шт.

45

S87319

PIN

CLEVIS PIN - leveler pins

2шт.

46

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

2шт.

47

S612084

LEVEL

ER - turntable, Includes: Ref.#48

1шт.

48

S202163

BUSHING

- leveler

2шт.
