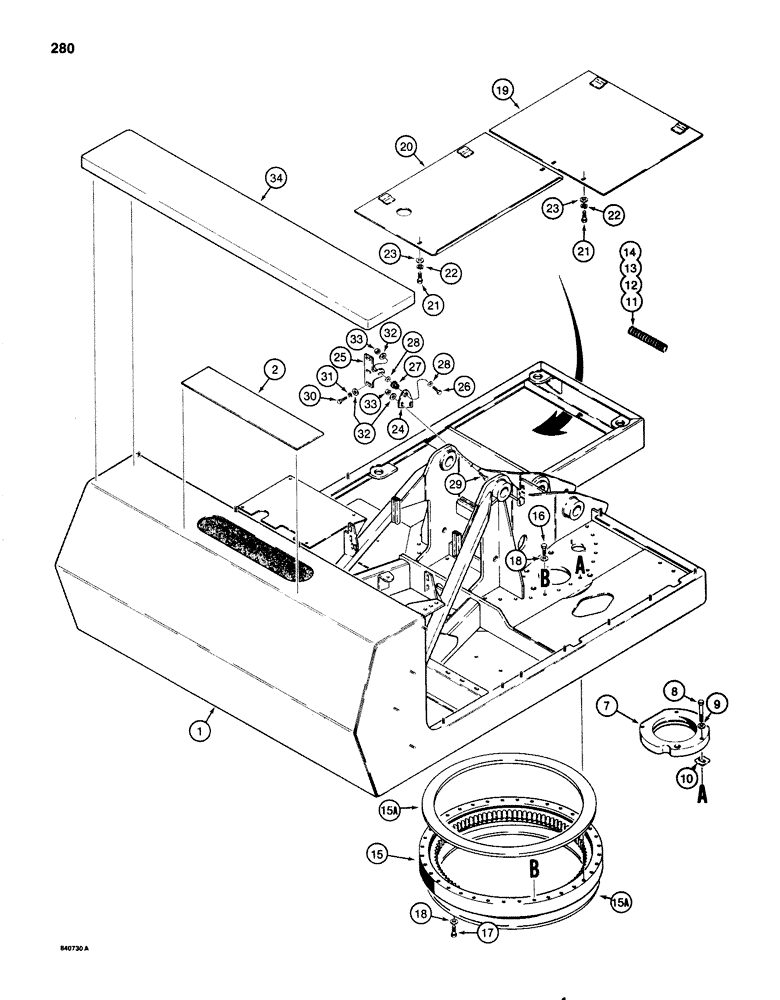

Запчасти Case 1080 (280) - TURNTABLE AND BEARING (39) - FRAMES AND BALLASTING

1

S956717

ASSEMBLY

TURNTABLE - used before tractor PIN 6271406 1

1шт.

1

S956833

ASSEMBLY

TURNTABLE - used on tractor PIN 6271406 and after

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - cover, Serial Range: welds-turntable

1шт.

7

S516543

PLATE

- swing gearbox mounting, Serial Range: welds-turntable

1шт.

8

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

- hex head, 20 mm - 2.5 x 55 mm (10.9), swing gearbox to mounting plate

3шт.

BOLT MAY ALSO BE 828-20070 (20X 70mm 10.8) FOR THE METRIC VERSION (WITH THE THICKER MTG. FLANGE.)

1шт.

9

S118818

WASHER

- flat, hardened, special

3шт.

10

S84889

SHIM,.003" Thk

(.0762 mm), Swing gearbox mounting to turntable .003" Thk

1шт.

10

S77916

SHIM,.005" Thk

(.1270 mm), Swing gearbox mounting to turntable .005" Thk

1шт.

10

S84890

SHIM,.007" Thk

(.1778 mm), Swing gearbox mounting to turntable .007" Thk

1шт.

10

S77917

SHIM,.010" Thk

(.2540 mm), Swing gearbox mounting to turntable .010" Thk

1шт.

10

S77918

SHIM,.015" Thk

(.3810 mm), Swing gearbox mounting to turntable .015" Thk

1шт.

10

S77919

SHIM,.030" Thk

(.7620 mm), Swing gearbox mounting to turntable .030" Thk

1шт.

10

S77920

SHIM,.060" Thk

(1.524 mm), Swing gearbox mounting to turntable .060" Thk

1шт.

11

REF

INSTRUCTION

CONDUIT - edge guard, 9" (229 mm) long

1шт.

Cut from bulk P/N S118481

1шт.

12

REF

INSTRUCTION

CONDUIT - edge guard, 11" (279 mm) long

1шт.

Cut from bulk P/N S118481

1шт.

13

REF

INSTRUCTION

CONDUIT - edge guard, 17" (432 mm) long

1шт.

Cut from bulk P/N S118481

1шт.

14

REF

INSTRUCTION

CONDUIT - edge guard, 8" (203 mm) long

1шт.

Cut from bulk P/N S118481

1шт.

15

S508668

SLEWING RING

BEARING - turntable, Includes: Ref.#15A

1шт.

15a

S105067

SEAL

- bearing, 156" (3962 mm) long, cut to correct length

2шт.

16

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, upper

33шт.

17

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8, lower

36шт.

18

S92353

WASHER

- flat, hardened, special

69шт.

19

S241189

GUARD

- under turntable, front

1шт.

20

S516396

GUARD

- under turntable, rear

1шт.

21

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

22

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

24

S241979

BRACKET

- cab mounting, at turntable frame

1шт.

25

S514820

BRACKET

- cab mounting, at cab

1шт.

26

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

1шт.

27

S110886

MOUNTING PARTS

MOUNT - rubber, cab bracket

1шт.

28

196-10

WASHER,.521" x 2" x .134", HDN

- flat, 1/2", hardened

2шт.

29

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

32

S95569

WASHER

- flat, 1/2", hardened

6шт.

33

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

3шт.

34

S617981

WEIGHT

COUNTERWEIGHT - 1500 lb. (680 kg), add-on, welds to top rear of turntable frame, if used

1шт.

S118481

PACKAGE

CONDUIT - bulk, 60" (1524 mm) long

1шт.
