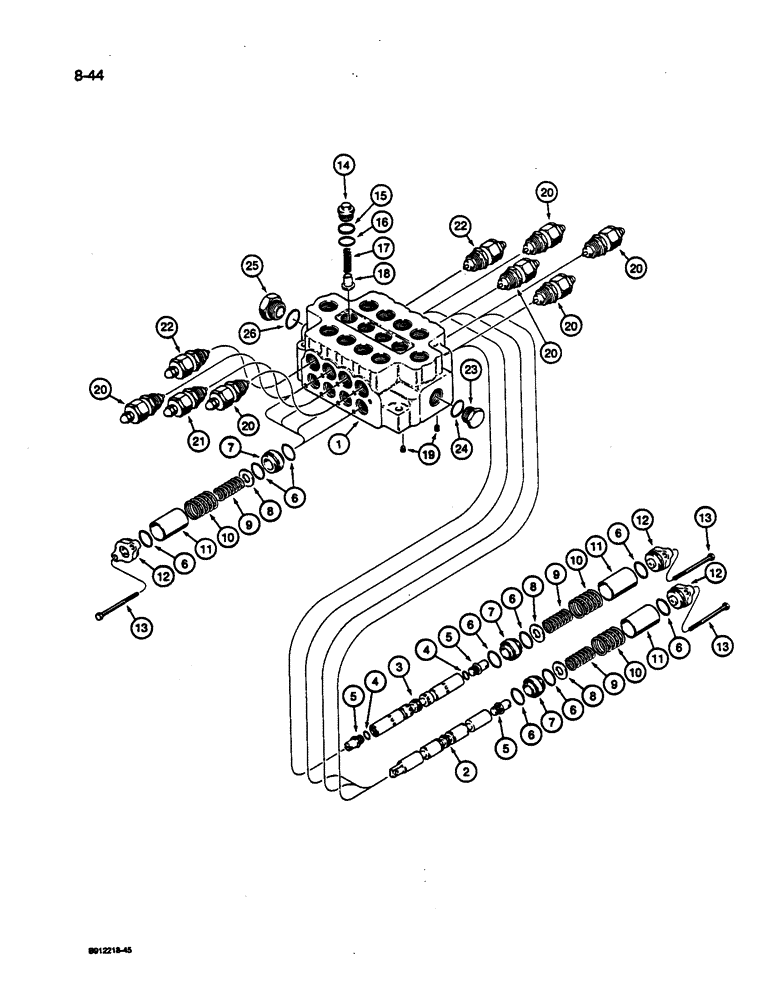

Запчасти Case 1187C (8-44) - FOUR SPOOL CONTROL VALVE - INSIDE (08) - HYDRAULICS

S517197

VALVE

ASSEMBLY - control, four spool, inside, for mounting hardware see Figure 8-22, Includes: Ref. 1 - 19

1шт.

S618086

VALVE

ASSEMBLY - main control pilot operated, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - fast hoist, right-hand track, and arm cylinder circuits

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing circuit

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Screw seal, Swing circuit spool only

2шт.

5

N8721

END

SCREW - special, spool end

5шт.

6

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

Cap, tube and sleeve -220, 70 Duro, 1.359" ID x .139" Thk

24шт.

7

N8725

CAP

SLEEVE - spool

8шт.

8

N8727

SPACER

- spring, support

8шт.

9

N13042

SPRING

- inner

8шт.

10

N13043

SPRING

- outer

8шт.

11

N8724

TUBE,1.628" ID x 1.812" OD x 2.603" L

- spool ends

8шт.

12

N8722

VALVE

CAP - spool ends

8шт.

13

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch, spool end caps

16шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Ref. 14 - 16

4шт.

14

S105094

PLUG

- check valve

1шт.

15

S105095

RING

- backup, check valve plug

1шт.

16

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch, check valve plug

1шт.

17

S13715

SPRING

- check valve

4шт.

18

S13716

VALVE POPPET

POPPET - check valve

4шт.

19

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

2шт.

20

S616868

VALVE

ASSEMBLY - circuit relief, set at 2500 psi, parts list Figure 8-52

5шт.

21

S616863

VALVE

ASSEMBLY - circuit relief and main relief, special R series, set at 2500 psi, parts list Figure 8-52

2шт.

22

S616867

VALVE

ASSEMBLY - circuit relief, set at 3000 psi, parts list Figure 8-52

2шт.

23

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 24 Hex Hd, 1 5/16"-12 ORB

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

25

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 26

1шт.

26

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.
