Запчасти Case 1187C (8-42) - EQUIPMENT PUMP, USED WITH CONTROL CIRCUITS (08) - HYDRAULICS

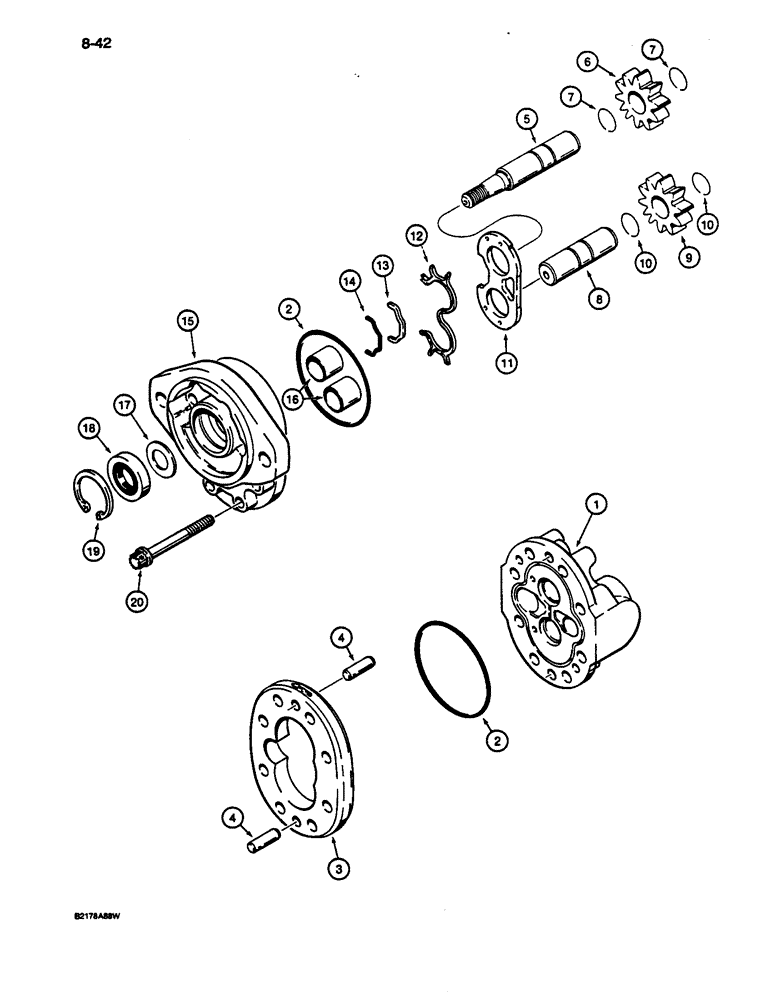

Схема запчастей Case 1187C - (8-42) - EQUIPMENT PUMP, USED WITH CONTROL CIRCUITS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, control circuit, for mounting hardware see Figure 8-10, Includes: Ref. 1 - 20

1шт.

387411A2R

REMAN-HYD PUMP

1187C, Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300370

COVER

- port end

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Cover

2шт.

Part of repair, seal, kit P/N S300373

1шт.

N13657

BODY

HOUSING ASSEMBLY - gear, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - gear housing

1шт.

4

71120

VALVE

PIN - dowel

4шт.

S300372

PINION

GEAR ASSEMBLY - drive, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - shaft

1шт.

7

S300377

RING, SNAP

RING - snap

2шт.

N13658

SPROCKET ASSY.

GEAR ASSEMBLY - idler, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - idler

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - shaft

1шт.

10

S300377

RING, SNAP

RING - snap

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of repair, seal, kit P/N S300373

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

Part of repair, seal, kit P/N S300373

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, seal

1шт.

Part of repair, seal, kit P/N S300373

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pump

1шт.

Part of repair, seal, kit P/N S300373

1шт.

S300371

COVER

ASSEMBLY - drive end, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

16

S300374

BUSHING

- cover

2шт.

17

N13135

WASHER

- special

1шт.

Part of repair, seal, kit P/N S300373

1шт.

18

S300380

SEAL

- shaft

1шт.

Part of repair, seal, kit P/N S300373

1шт.

19

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

Part of repair, seal, kit P/N S300373

1шт.

20

380-2532

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

BOLT - 12 point, 5/16 NC x 2 inch

8шт.

S300373

SEAL KIT

KIT - repair, seal, Includes Refs. 2, 11, 12, 13, 14, 17, 18 and 19

1шт.

Выбрано товаров: 36
