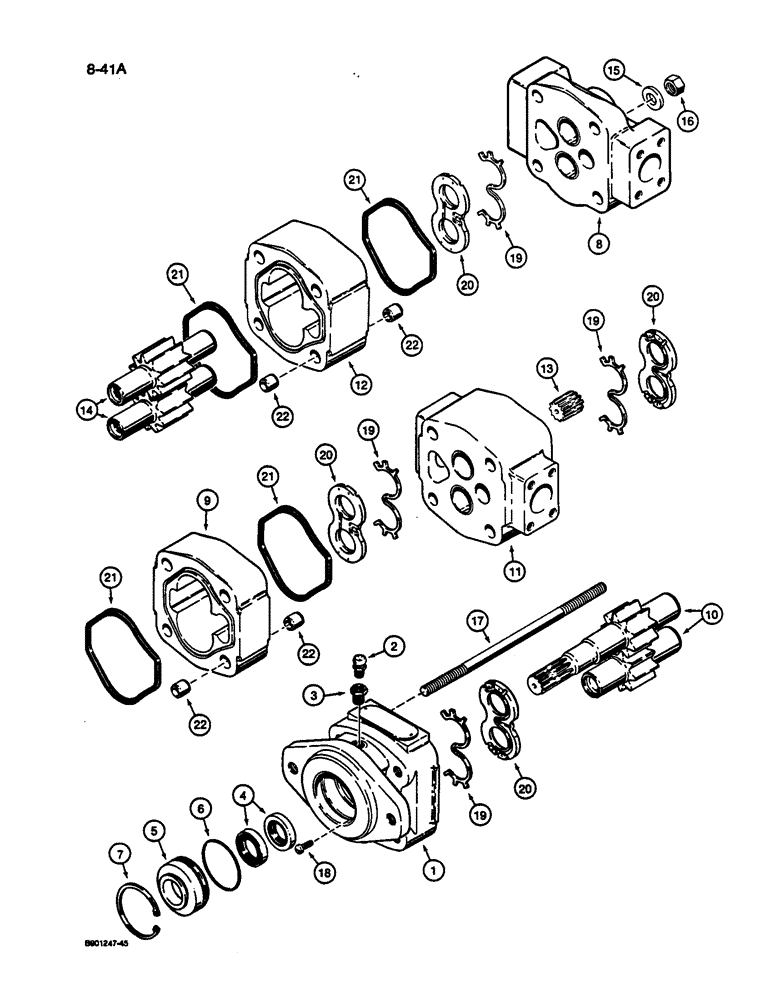

Запчасти Case 1187C (8-41A) - HYDRAULIC PUMP, P.I.N. JAK0033141 AND AFTER (08) - HYDRAULICS

S517858

PUMP

ASSEMBLY - main hydraulic, Commercial Intertech No. 322-9120-063, for mounting hardware see Figure 8-8, Includes: Ref. 1 - 22

1шт.

Pump assembly part number and Commercial Intertech number are stamped on plate located at shaft end cover, Ref. 1.

1шт.

1

S301135

COVER

- shaft end, includes bushings

1шт.

2

1978259C1

VALVE POPPET

VENT - air

1шт.

3

S300421

RESTRICTOR

REDUCER - special, cover to air vent

1шт.

4

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

SEAL - lip, shaft

2шт.

5

1978254C1

SEAL RETAINER

RETAINER - seal

1шт.

6

S300420

O-RING,2.862" ID x 3.068" OD x 0.103"

- seal retainer

1шт.

7

NLS

NO LONGER SERVICED

3.156", Int, #315, seal

1шт.

8

S301136

COVER

- port end, includes bushings

1шт.

9

S301137

HOUSING

- gear, shaft end

1шт.

10

S301139

GEAR-SET

SET - gear, shaft end

1шт.

11

S301138

CARRIER

- bearing, includes bushings

1шт.

12

S301137

HOUSING

- gear, closed end

1шт.

13

S301142

GEAR SHAFT

SHAFT - connecting

1шт.

14

S301140

GEAR-SET

SET - gear, port end

1шт.

15

3031159R1

WASHER

- flat, special, hardened

4шт.

16

429-1010

NUT,5/8"-11, G8

4шт.

17

S301141

STUD

- pump

4шт.

18

L32320

PLUG

- special, shaft end cover

1шт.

19

1978256C1

SEAL

- gear housing, at thrust plate

4шт.

20

1978255C1

BACK-UP RING

PLATE - thrust

4шт.

21

1978257C1

SEALING RING

SEAL - gear housing

4шт.

22

1978258C1

CENTERING RING

BUSHING - alignment, gear housing

16шт.
