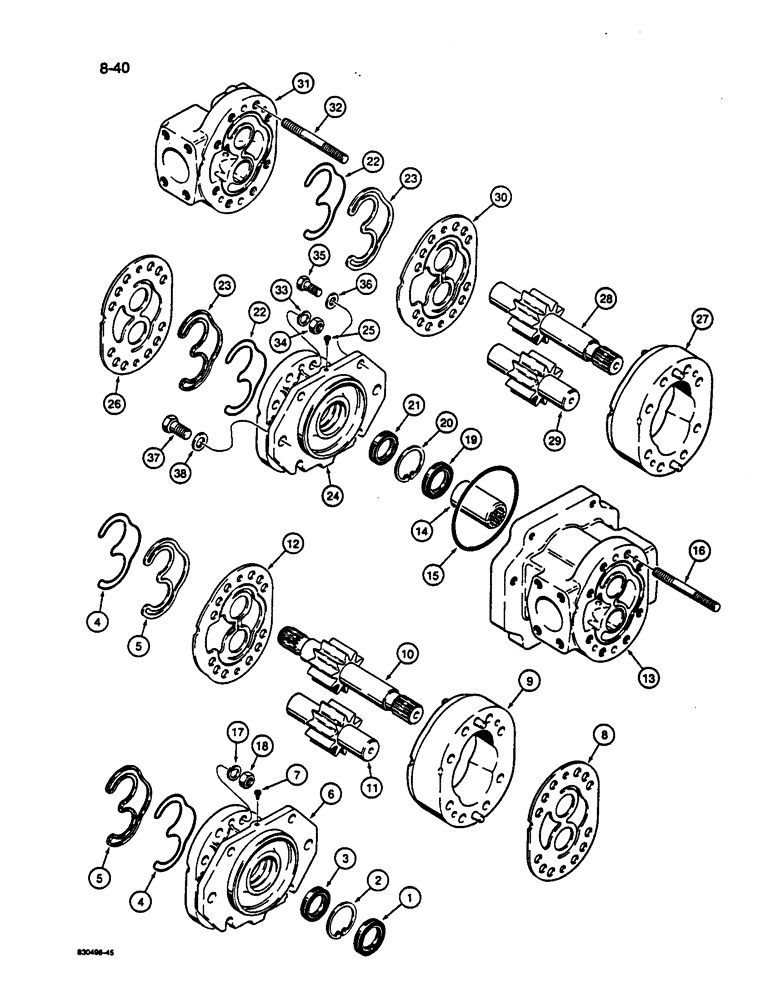

Запчасти Case 1187C (8-40) - HYDRAULIC PUMP, PRIOR TO P.I.N. JAK0033141 (08) - HYDRAULICS

S619344

PUMP

ASSEMBLY - main hydraulic, when replacing complete pump, order S517858, parts list Figure 8-41A, for mounting hardware, see Figure 8-8, Includes: Ref. 1 - 38

1шт.

S300362

PUMP

ASSEMBLY - next to engine, Includes: Ref. 1 - 18

1шт.

1

N60212

SEAL

SEAL - shaft, outer

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

2

D41419

RING

- snap, seal retaining

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

3

N60213

SEAL

- shaft, inner

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

4

N60195

SEAL

- pre-load

2шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

5

N60194

RETAINER

- seal

2шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

6

S300364

COVER

- driveshaft end

1шт.

7

N60210

PLUG

- drive end cover

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

8

N60187

PLATE

- wear, front

1шт.

9

S300367

VALVE BLOCK

HOUSING - gear

1шт.

10

N60193

GEAR

- drive, pump

1шт.

11

N60189

GEAR

- driven, pump

1шт.

12

N60191

PLATE

- wear, rear

1шт.

13

S300365

PORT

CARRIER - bushing

1шт.

14

N60224

COUPLING

- pump shaft

1шт.

15

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

Rear seal -159, 70 Duro, 4.987" ID x .103" Thk

1шт.

16

N60211

STUD

- pump tie

8шт.

17

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

18

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.

S300363

PUMP

ASSEMBLY - away from engine, Includes: Ref. 19 - 34

1шт.

19

N60212

SEAL

SEAL - shaft, outer

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

20

D41419

RING

- snap, seal retaining

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

21

N60213

SEAL

- shaft, inner

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

22

N60195

SEAL

- pre-load

2шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

23

N60194

RETAINER

- seal

2шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

24

S300364

COVER

- driveshaft end

1шт.

25

N60210

PLUG

- driveshaft end cover

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.

Part of seal kit P/N N7240

1шт.

26

N60187

PLATE

- wear, front

1шт.

27

S300367

VALVE BLOCK

HOUSING - gear

1шт.

28

N60190

GEAR

- drive, pump

1шт.

29

N60189

GEAR

- driven, pump

1шт.

30

N60191

PLATE

- wear, rear

1шт.

31

S300366

COVER

- closed end

1шт.

32

N60211

STUD

- pump tie

8шт.

33

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

34

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC

8шт.

35

26-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

4шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, If used

4шт.

37

26-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

- hex, 5/8 NC x 1 inch, grade 8

2шт.

38

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

If used 11/16" x 1 1/2" x .134", HDN

2шт.

N7240

SEAL KIT

- seal, Includes Refs. 1, 2, 3, 4, 5, 7, 19, 20, 21, 22, 23 and 25

1шт.

Pump assembly part number is stamped on closed end cover, Ref. 31.

1шт.
