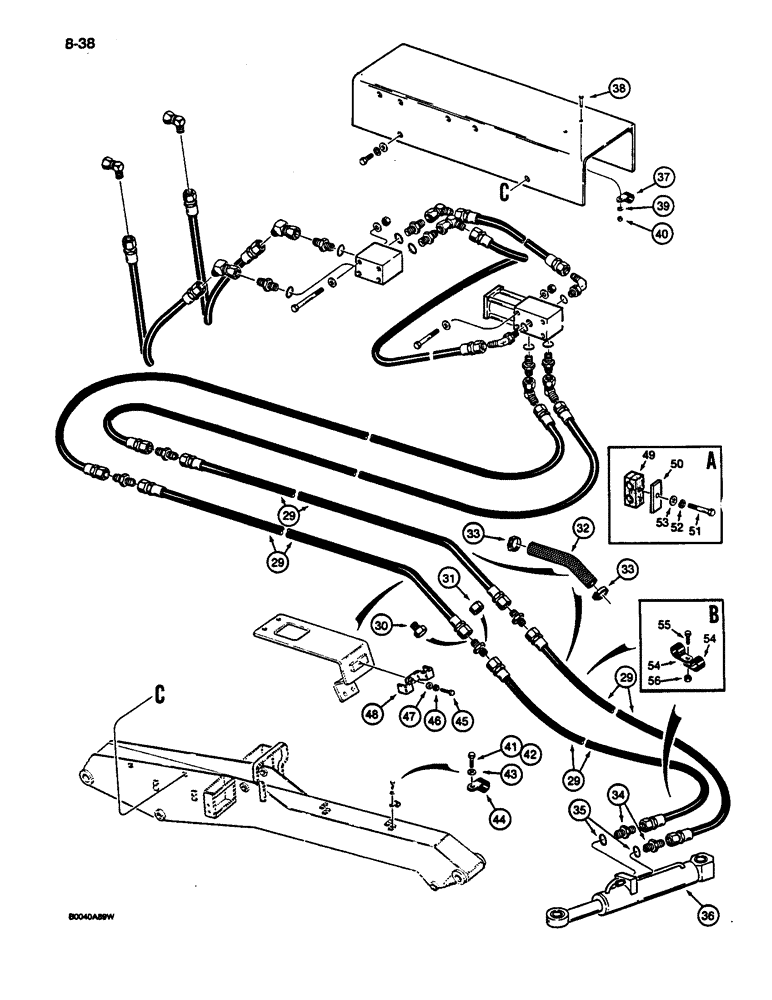

Запчасти Case 1187C (8-38) - COLLECTOR HYDRAULICS (08) - HYDRAULICS

29

S8703

HOSE

- 116 inch (2946 mm) long, at tool boom and collector arm cylinder

4шт.

30

218-776

PLUG,7/8"-14, 37 Degree

- hex, 7/8-14 inch flare, use when collector is remove

2шт.

31

218-756

CAP,37 Degree, 7/8"-14

Use when collector is removed 37º, 7/8"-14

2шт.

32

S120426

TUBE

- hose protector

4шт.

33

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia

8шт.

34

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 35

2шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

S618845

CYLINDER ASSY.

CYLINDER ASSEMBLY - collector arm, parts list Figure 8-84

1шт.

37

R14668

CLAMP

- hose, at valve bracket

2шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

40

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.

41

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

42

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

44

S88820

CLAMP

- hose to tool boom

4шт.

45

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

47

95-11053

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

48

S79656

CLAMP

- hose, at tool boom bracket

1шт.

49

S217389

CLAMP

- hose, at Feller-Buncher frame

3шт.

50

S83714

SPACER

- clamp

3шт.

51

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

3шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

53

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

3шт.

54

R14668

CLAMP

- hose, at collector frame

4шт.

55

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

56

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

2шт.
