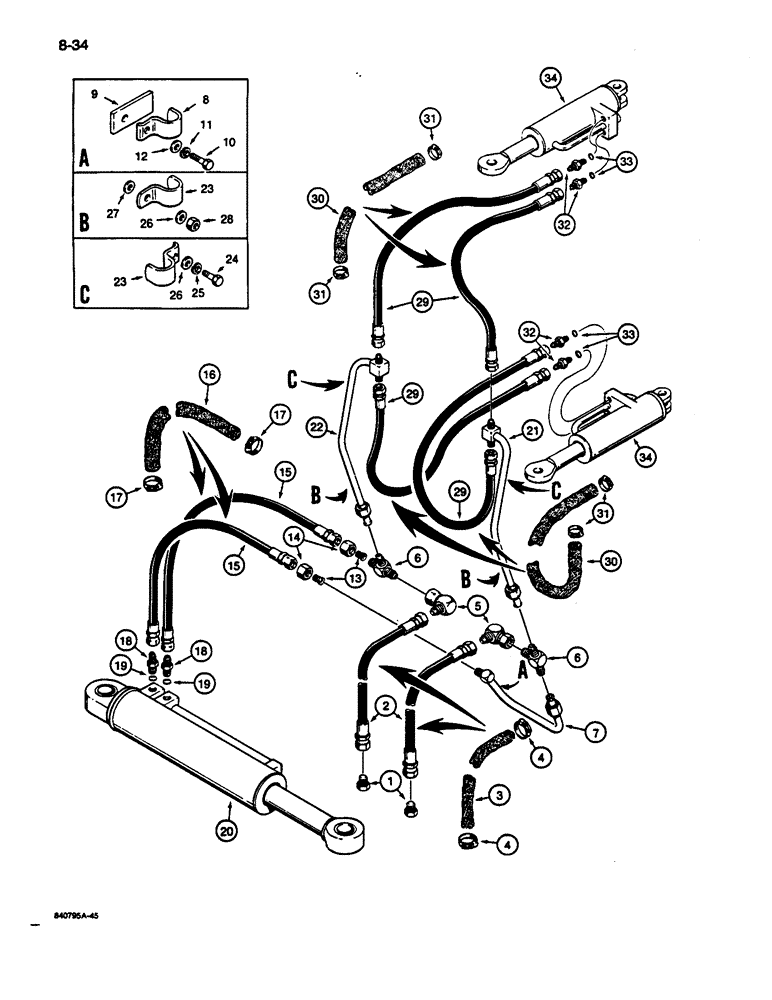

Запчасти Case 1187C (8-34) - FELLER-BUNCHER HYDRAULIC LINES (08) - HYDRAULICS

1

218-779

PLUG,1 5/16"-12, 37 Degree

- hex, 1-5/16-12 inch flare, use when Feller-Buncher is removed from logger

2шт.

2

S233927

HOSE

- 36 inch (914 mm) long, tool boom hydraulic, Serial Range: lines-Feller-Buncher

2шт.

3

S120425

SLEEVE

- hose protector

2шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable, Sleeve to hose #24, 1.06/2.00 Type F Worm

4шт.

5

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- 1-5/16-12 inch flare

2шт.

7

S217848

TUBE ASSY.,1.25" OD

TUBE - crossover, tee to shear cylinder

1шт.

8

S116280

CLAMP

- tube

1шт.

9

S85564

SPACER - clamp

1шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

13

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducing, 1 tube OD x 1-1/16-12 inch flare

2шт.

14

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - hex, 1-5/16 inch NF

2шт.

15

S15468

HOSE

- 28 inch (711 mm) long, to shear cylinder

2шт.

16

S120427

SLEEVE

- hose protector

2шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

4шт.

18

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - shear arm, parts list Figure 8-80

1шт.

21

S219713

TUBE ASSY.,1.25" OD

TUBE - hydraulic, grab arm, right-hand side of frame

1шт.

22

S219712

TUBE ASSY.,1.25" OD

TUBE - hydraulic, grab arm, left-hand side of frame

1шт.

23

S116280

CLAMP

- tube

4шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

4шт.

27

196-30

WASHER,11/16" x 1 1/2" x .134", HDN

- flat, 11/16 x 1-1/2 x 1/8 inch, hardened

2шт.

28

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

29

S8581

HOSE ASSY.

HOSE - 48 inch (1219 mm) long, tubes to grab cylinders

4шт.

30

S120424

SLEEVE

- hose protector

4шт.

31

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

8шт.

32

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 33

4шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

S618357

CYLINDER ASSY.

CYLINDER ASSEMBLY - grab and cutter arm, parts list Figure 8-82

2шт.
