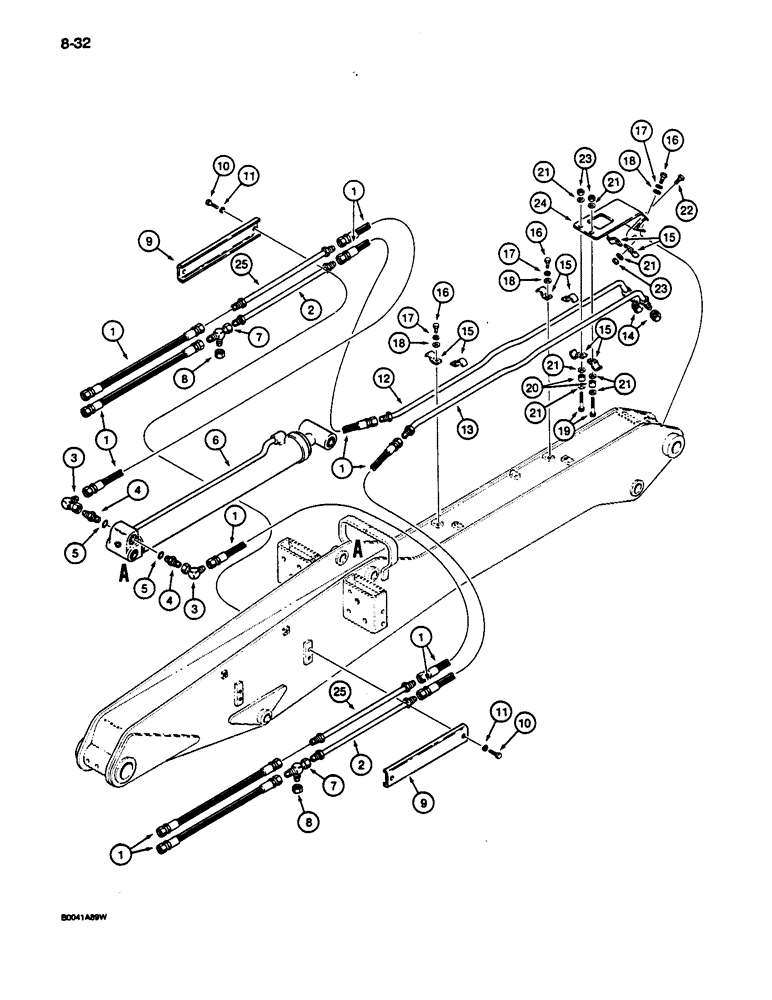

Запчасти Case 1187C (8-32) - FELLER-BUNCHER HYDRAULIC CIRCUITS, TUBES AT ARM (08) - HYDRAULICS

1

S8628

HOSE

- 36 inch (914 mm) long, to tool cylinder and attachment tubes

8шт.

2

S214936

TUBE ASSY.,1.25" OD x 31.04" L

TUBE - main boom hydraulics to attachment tubes

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

4

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring, Incl. Ref. 5

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

G107679

CYLINDER

ASSEMBLY - tool, parts list Figure 8-76

1шт.

7

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

- 7/8-14 fl branch x 1-5/16-12 inch fl x adj str thread

2шт.

8

218-756

CAP,37 Degree, 7/8"-14

Tube, used when collector attachment is not installed 37º, 7/8"-14

2шт.

9

S89414

CHANNEL

GUARD - tube, arm side

2шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

S225899

TUBE ASSY.,1.25" OD

TUBE - to attachment, top left-hand of arm

1шт.

13

S225898

TUBE ASSY.,1.25" OD

TUBE - to attachment, top right-hand of arm

1шт.

14

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch, tube, used when attachment is removed

2шт.

15

S120173

CLAMP

- tube, front and center of attachment tubes

8шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

18

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

6шт.

19

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

20

S106334

SPACER,1/2" Pipe x 1"

- tube clamp

2шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

23

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

24

S509063

GUARD ASSY.

GUARD - tube, arm front

1шт.

25

S242918

TUBE ASSY.,1.25" OD x 34" L

TUBE - main boom hydraulics to tool cylinder

2шт.
