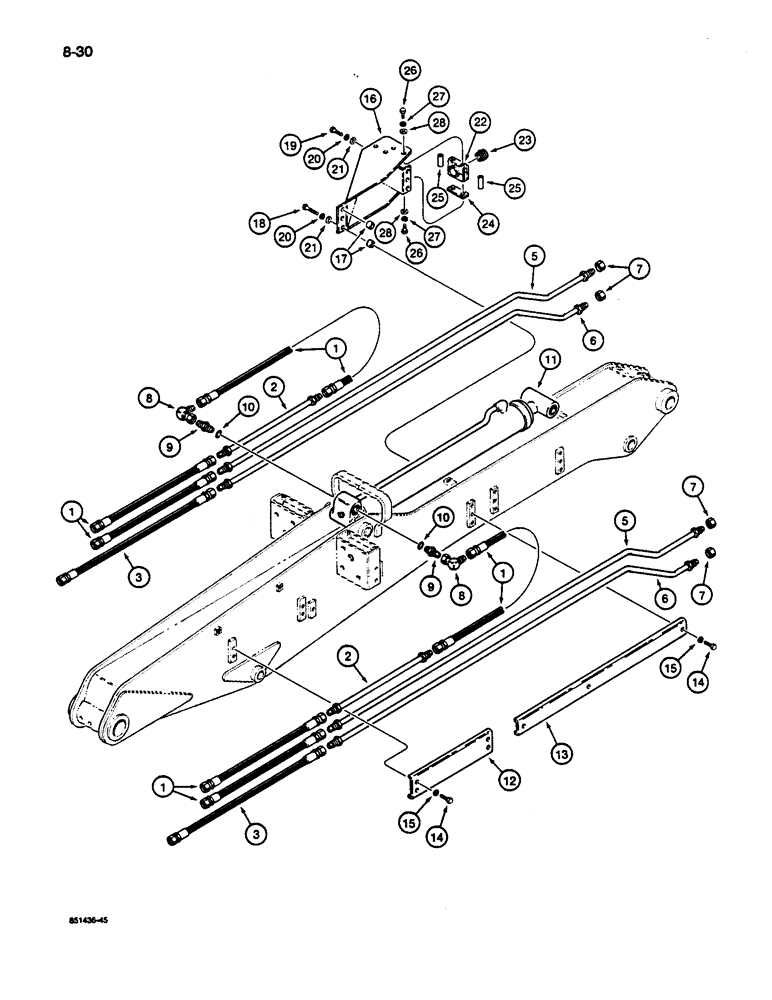

Запчасти Case 1187C (8-30) - ALLIED SAW HYDRAULIC CIRCUITS, TUBES AT ARM (08) - HYDRAULICS

1

S8628

HOSE

- 1 (25 mm) ID x 36 inch long, to tool cylinder and upper attachment tubes

6шт.

2

S242918

TUBE ASSY.,1.25" OD x 34" L

TUBE - to tool cylinder

2шт.

3

S235936

HOSE

- 1 (25 mm) ID x 49 inch long, to lower attachment tubes

2шт.

5

S242619

TUBE ASSY.,1.25" OD x 112.3, 5.7" L

TUBE - to attachment, upper

2шт.

6

S242620

TUBE ASSY.,1.25" OD x 110.1, 92" L

TUBE - to attachment, lower

2шт.

7

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch, tube, used when attachment is removed

4шт.

8

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

9

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring, Incl. Ref. 10

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

S956911

CYLINDER

ASSEMBLY - hydraulic, tool, parts list Figure 8-74

1шт.

12

S229657

CHANNEL

GUARD - tube, short

2шт.

13

S229656

CHANNEL

GUARD - tube, long

2шт.

14

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

14шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

16

S510365

BRACKET

- mounting, tube clamp, front of arm

2шт.

17

S76849

SPACER

-, Serial Range: bracket-arm

4шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

6шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

21

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

12шт.

22

S106643

CLAMP

- tube, split type

4шт.

23

S106646

BUSHING

- split, rubber

4шт.

24

S108511

SPACER

-, Serial Range: clamp-bracket

4шт.

25

S106647

TUBE NUT

SPACER - threaded, at split tube clamp

8шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

16шт.

27

492-11038

LOCK WASHER,3/8"

16шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

16шт.
