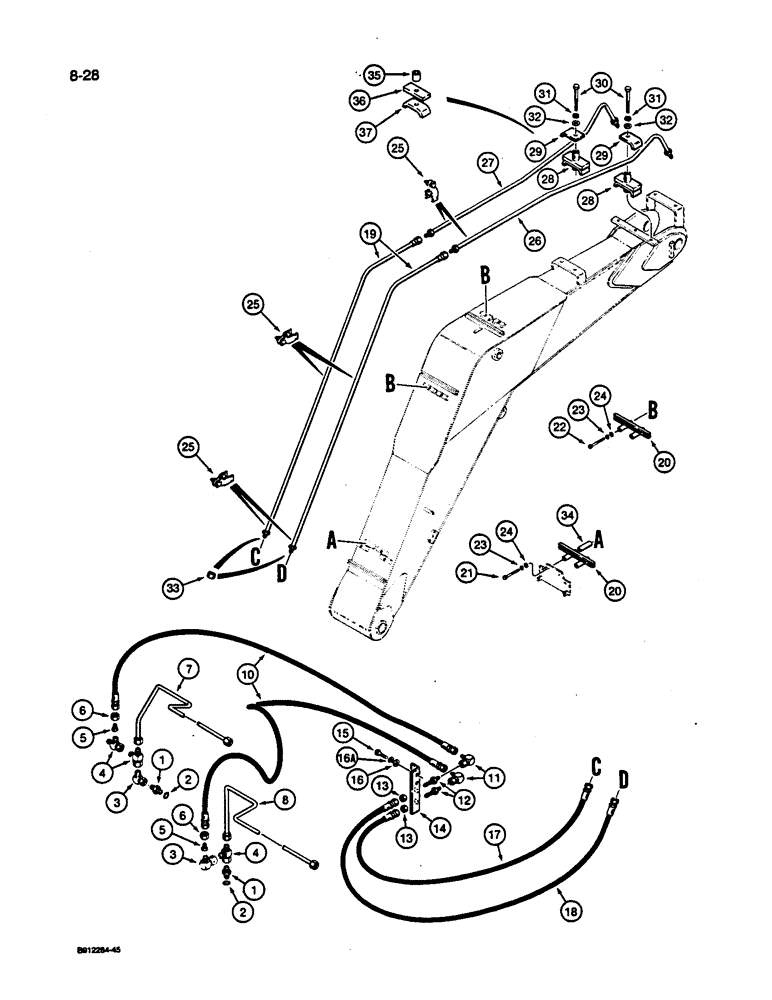

Запчасти Case 1187C (8-28) - ALLIED SAW HYDRAULIC CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 2

2шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

3

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, 1-5/8-12 inch flare x swivel flare

2шт.

4

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- 1-5/8-12 inch fl branch x flare x adj straight thread

3шт.

5

218-788

REDUCER,37º, 1 1/4" x 1" Tube

ADAPTER - reducing, 1-1/14 tube OD x 1-5/16-12 inch flare

2шт.

6

218-349

TUBE NUT,37 Degree, 1 5/8"-12, Type B

NUT - hex, 1-5/8 inch NF

2шт.

7

S617861

TUBE ASSY.

TUBE - hydraulic, low pressure, at outside valve

1шт.

8

S516405

TUBE ASSY.,1.5" OD

TUBE - hydraulic, low pressure, at inside valve

1шт.

10

S8626

HOSE ASSY.

HOSE - 60 inch (1524 mm) long, tube from, Serial Range: valves-bulkhead

2шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

2шт.

12

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, 1-5/16-12 inch flare x bulkhead flare

2шт.

13

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

14

S516444

BRACKET

- mounting, bulkhead adapter

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.

16a

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

S8628

HOSE

- 36 inch (914 mm) long, bulkhead to tube at left side of boom

1шт.

18

S235936

HOSE

- 49 inch (1245 mm) long, bulkhead to tube at right side of boom

1шт.

19

S516702

TUBE ASSY.,1.25" OD x 48.1, 60.2" L

TUBE - to rotary cutter, rear of boom

2шт.

20

S229652

BRACKET

- tube clamp, rear and top of boom

3шт.

21

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 NC x 5-3/4 inch

4шт.

22

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

24

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

25

S93266

CLAMP

- tubes at boom

6шт.

26

S516700

TUBE ASSY.,1.25" OD x 81.8, 6.85" L

TUBE - to rotary cutter, top, right-hand side

1шт.

27

S516701

TUBE ASSY.,1.25" OD x 81.8, 6.85" L

TUBE - to rotary cutter, boom top, left-hand side

1шт.

28

S232081

CLAMP

- special, lower, boom, no longer used, for service order Refs. 35 - 37

2шт.

29

S106387

CLAMP

- upper, Serial Range: tubes-boom

2шт.

30

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

2шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

32

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

33

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch

2шт.

34

S106386

SPACER

- bracket

2шт.

35

S76849

SPACER

- clamp

4шт.

36

S106388

BAR

- spacer

2шт.

37

S46397

CLAMP

- tube retaining

2шт.
