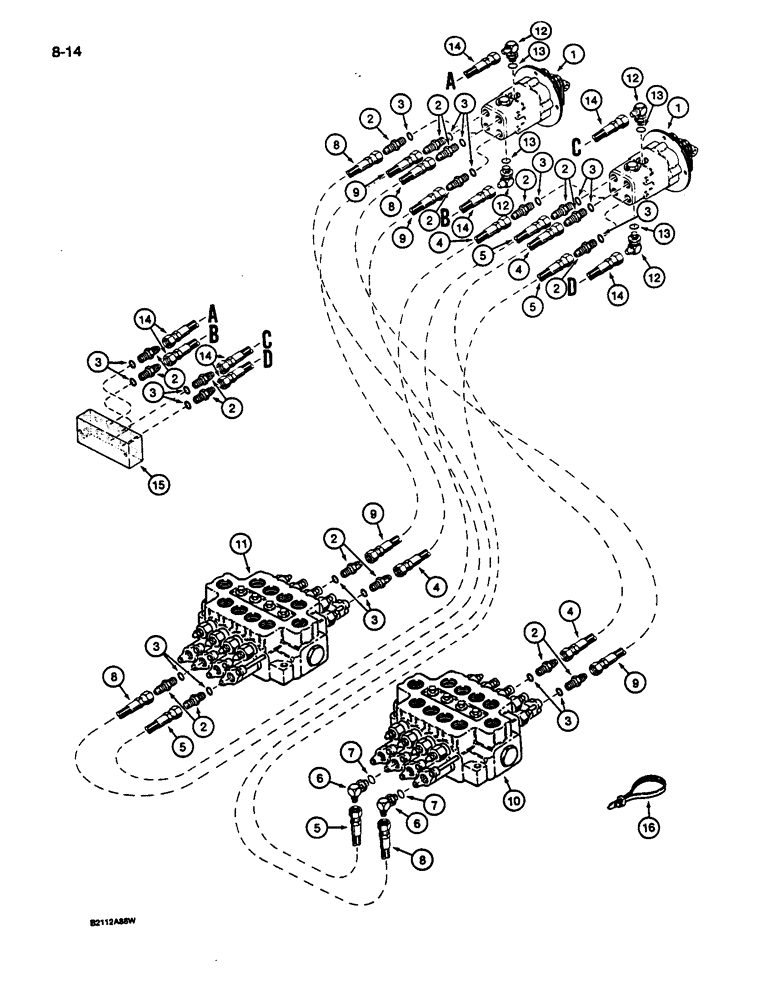

Запчасти Case 1187C (8-14) - HYDRAULIC CIRCUIT FOR CONTROLS, FOOT PEDAL CONTROL VALVE LINES (08) - HYDRAULICS

1

S517359

VALVE

ASSEMBLY - control, foot pedal, parts list Figure 8-54

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 3

18шт.

4

S241221

HOSE ASSY.

HOSE - 80 inch (2032 mm) long, right-hand control valve to manifold and to front of outside and inside control valve

2шт.

5

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, right-hand control valve to rear of inside and outside control valve

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, at inside and outside control valve, Includes: Ref. 7

2шт.

8

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, left-hand control valve to rear of inside and outside control valve

2шт.

9

S241221

HOSE ASSY.

HOSE - 80 inch (2032 mm) long, left-hand control valve to front of inside and outside control valve

2шт.

10

S517197

VALVE

ASSEMBLY - control, inside, parts list Figure 8-44

1шт.

11

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, at left-hand and right-hand control valves, Includes: Ref. 13

4шт.

14

S241217

HOSE ASSY.

HOSE - 21 inch (533 mm) long, left-hand and right-hand control, Serial Range: valves-manifold

4шт.

15

S236862

BLOCK

MANIFOLD - control circuits

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
