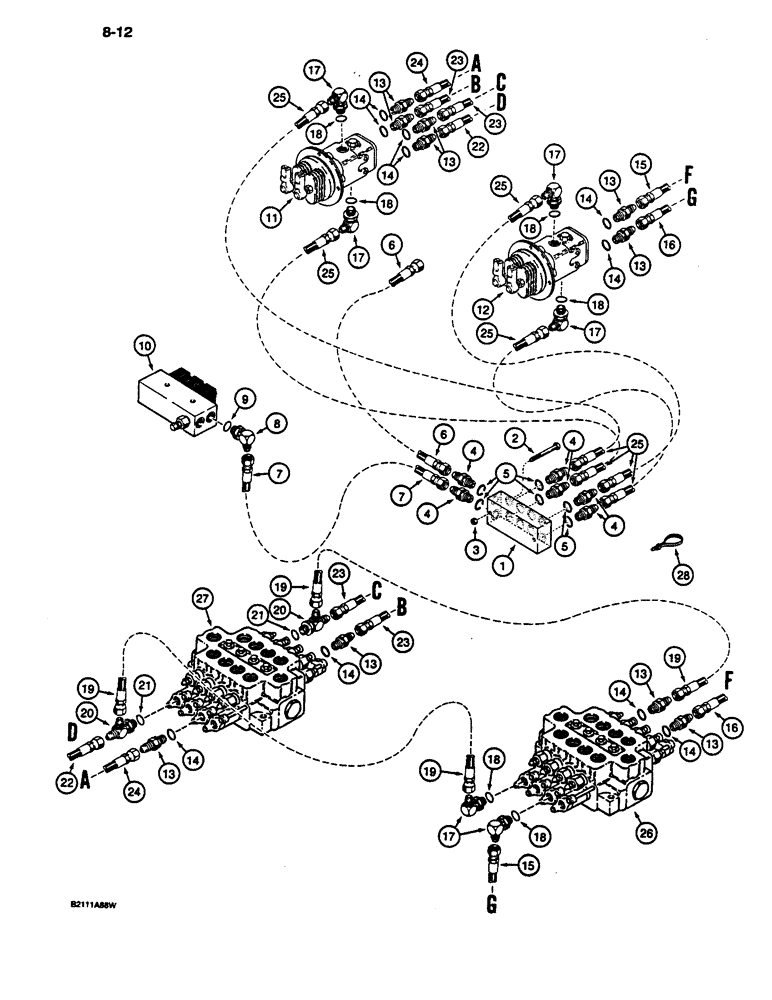

Запчасти Case 1187C (8-12) - HYDRAULIC CIRCUIT FOR CONTROLS, HAND LEVER CONTROL VALVE LINES (08) - HYDRAULICS

1

S236862

BLOCK

MANIFOLD - control circuits

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

3

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 5

6шт.

6

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, manifold to reservoir drain tube

1шт.

7

S241220

HOSE ASSY.

HOSE - 70 inch (1778 mm) long, manifold to solenoid control valve

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 9

1шт.

10

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-56

1шт.

11

S517357

VALVE

ASSEMBLY - control, hand lever, left-hand, parts list Figure 8-54

1шт.

12

S517358

VALVE

ASSEMBLY - control, hand lever, right-hand, parts list Figure 8-54

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 14

10шт.

15

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, right-hand control valve to rear of inside control valve

1шт.

16

S241221

HOSE ASSY.

HOSE - 80 inch (2032 mm) long, right-hand control valve to front of inside control valve

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 18

6шт.

19

S241217

HOSE ASSY.

HOSE - 21 inch (533 mm) long, inside control valve to outside control valve

2шт.

20

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 21

2шт.

22

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, left-hand control valve to rear of outside control valve

1шт.

23

S241220

HOSE ASSY.

HOSE - 70 inch (1778 mm) long, left-hand control valve to front of outside control valve

2шт.

24

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, left-hand control valve to rear of outside control valve

1шт.

25

S241217

HOSE ASSY.

HOSE - 21 inch (533 mm) long, hand control, Serial Range: valves-manifold

4шт.

26

S517197

VALVE

ASSEMBLY - control, inside, parts list Figure 8-44

1шт.

27

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

S8581

HOSE ASSY.

HOSE - 48 inch (1219 mm) long, manifold to reservoir drain tube

1шт.

30

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.

31

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss, Includes: Ref. 32

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
