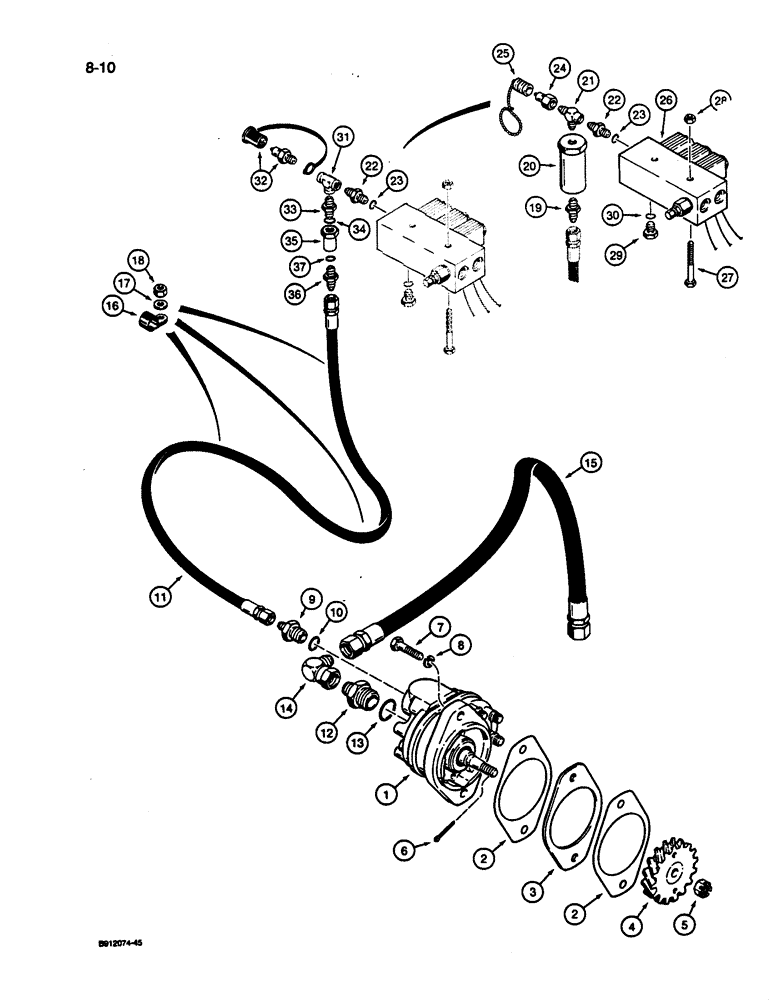

Запчасти Case 1187C (8-10) - HYDRAULIC CIRCUIT FOR CONTROLS, HYDRAULIC PUMP AND LINES (08) - HYDRAULICS

1

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - equipment, for controls, parts list Figure 8-42

1шт.

387411A2R

REMAN-HYD PUMP

1187C, Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

J919601

GASKET

- hydraulic pump, replaces A77441

1-2шт.

3

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

SHIM - hydraulic pump gaskets, if used

1шт.

4

J905606

PINION

GEAR - pump drive shaft

1шт.

5

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex, slotted, 1/2 NF

1шт.

6

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

7

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

9

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, 3/8 tube x 5/8 tube, Includes Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

S241222

HOSE ASSY.

HOSE - 100 inch (2540 mm) long, pump to solenoid control valve

1шт.

12

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss, Includes: Ref. 13

1шт.

14

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.

15

S8584

HOSE ASSY.,12.70 mm ID x 939.80, SAE 100R2

HOSE ASSY, 12.70 mm ID x 939.80 mm, SAE 100R2A, Pump to Tubeline of Oil Cooler, to Tank

1шт.

16

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose retaining, mounts to turntable studs

3шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

18

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT, if used

1шт.

20

S242548

FILTER ASSY

FILTER - solenoid control valve, includes replaceable element, N9426, if used

1шт.

21

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- 1/4 inch PT branch x PT x female PT, if used

1шт.

22

218-5443

FITTING

ADAPTER - straight, 9/16-18 O-ring boss x 1/4 inch PT, Includes: Ref. 23

1шт.

24

S206607

DISC

COUPLING - quick disconnect, male, if used

1шт.

25

S206608

CAP

- dust, if used

1шт.

26

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-56

1шт.

27

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

28

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

29

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 30 Hex Hd, 9/16"-18 ORB

1шт.

31

217-1161

TEE,1/4"-18 Female

- pipe, 1/4 inch female, if used

1шт.

32

S243718

COUPLING

- quick disconnect, includes dust cap, if used

1шт.

33

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

ADAPTER - straight, 3/4-16 O-ring boss x 1/4 inch PT, if used, Includes: Ref. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

S243815

FILTER

- solenoid control valve, includes replaceable element, N9426, if used

1шт.

36

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, if used, Includes: Ref. 37

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
