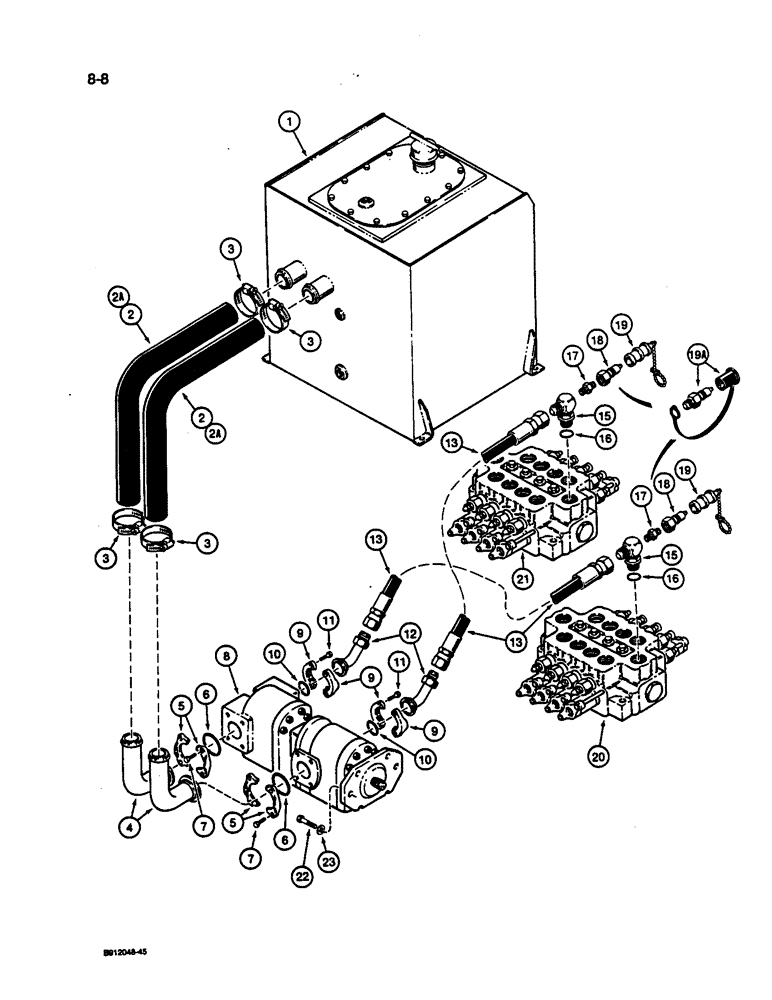

Запчасти Case 1187C (8-08) - HYDRAULIC CIRCUIT, MAIN HYDRAULIC PUMP LINES (08) - HYDRAULICS

1

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

S120585

HYDRAULIC HOSE,2.00" ID x 32.00"

- Reservoir to pump, Cut from S120580X bulk hose, See below, No longer used, For service order L125344 hose (Ref. 2A) 2.00" ID x 32.00"

2шт.

2a

L125344

HOSE,50.8 mm ID x 800.00 mm

Suction, Hydraulic Reservoir to Pump 50.8 mm ID x 800.00 mm

2шт.

3

L126871

CLAMP

- hose

4шт.

4

S238798

TUBE,2" OD x 6.8, 4.7" L

- to pump

2шт.

5

A14141

FLANGE

- split, rear of pump

4шт.

6

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Tube -228, 70 Duro, 2.234" ID x .139" Thk

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - main hydraulic, parts list Figures 8-40 and 8-41A

1шт.

9

A12301

CLAMP,Half

- split, front of pump

4шт.

10

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Tube (Replaces 238-5228) -222, 70 Duro, 1.484" ID x .139" Thk

2шт.

11

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

8шт.

12

S235919

ADAPTER

TUBE - 45 degree, from rear pump port

2шт.

13

S235936

HOSE

- 49 inch (1245 mm) long, to outside control valve

2шт.

15

S113093

ELBOW

- 90 degree, adjustable, Includes: Ref. 16

2шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

17

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) x 1-7/16" lg., if used 1/4"-18 NPTF

2шт.

18

S206607

DISC

COUPLING - quick disconnect, male, if used

2шт.

19

S206608

CAP

- dust, coupler, if used

2шт.

19a

S243718

COUPLING

- quick disconnect, male, with dust cap, if used

2шт.

20

S517197

VALVE

ASSEMBLY - control, inside, parts list Figure 8-44

1шт.

21

S517198

VALVE

ASSEMBLY - control, outside, parts list Figure 8-46

1шт.

22

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

23

96-81006

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

- flat, 41/64 x 1-3/64 x 1/8 inch, hardened

2шт.

S120580X

HOSE

- bulk roll, 2 (51 mm) ID x 25 feet (7.6 m) long

1шт.
