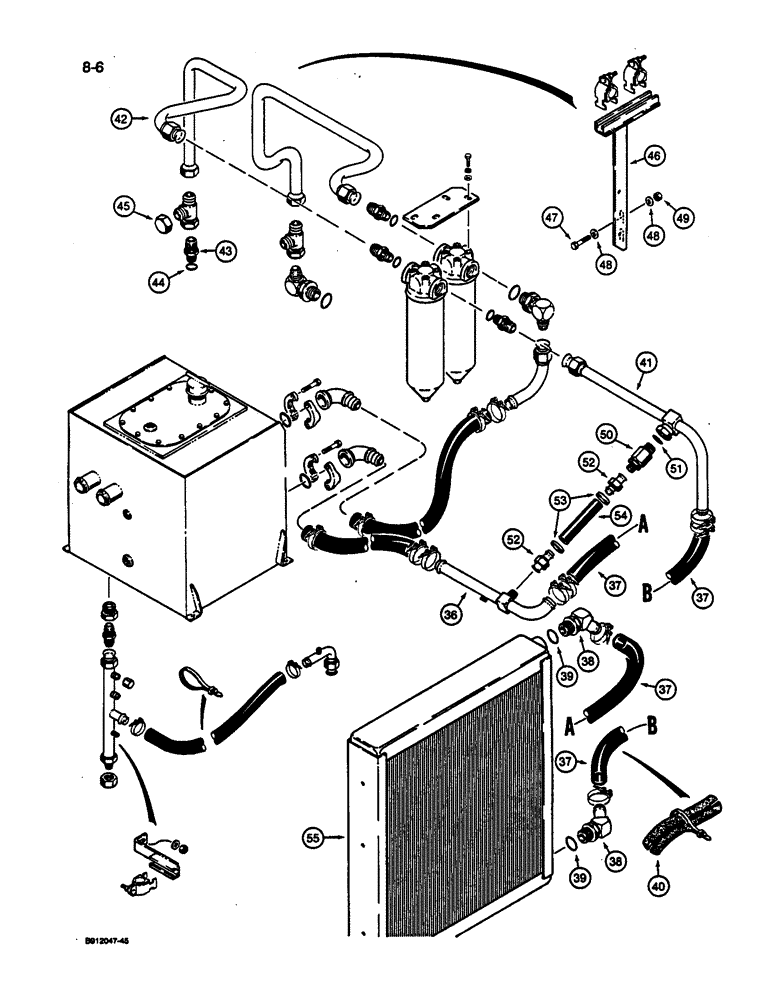

Запчасти Case 1187C (8-06) - HYDRAULIC OIL FILTER AND COOLER LINES (08) - HYDRAULICS

36

S517283

TUBE ASSY.

TUBE - hydraulic reservoir to oil cooler

1шт.

37

S120543

HYDRAULIC HOSE,1.50" ID x 36.00"

- at oil cooler, Cut from S120500X bulk hose, See below 1.50" ID x 36.00"

2шт.

38

217-318

FITTING,45° Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW - 45 deg, 1-1/2 stem end x 1-7/8-12 inch adj O-ring, Includes: Ref. 39

2шт.

39

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

40

S119557

PAD

- hose guard

1шт.

41

S517284

TUBE ASSY.

TUBE - oil filter to oil cooler

1шт.

42

S517282

TUBE ASSY.

TUBE - oil filter to inside control valve

1шт.

43

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 44

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

45

218-759

CAP,37 Degree, 1 5/8"-12

- hex, 1-5/8-12 inch

1шт.

46

S516931

BRACKET

- oil filter tube support

1шт.

47

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

48

S95569

WASHER

- flat, special, hardened

4шт.

49

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

50

S105386

VALVE

- check, return line, Includes: Ref. 51

1шт.

51

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

Check valve -124, 70 Duro, 1.237" ID x .103" Thk

1шт.

52

S215412

TUBE,1.25" OD x 3" L

- return

2шт.

53

214-371

CLAMP,1.56"-1.81", T-Bolt

- adj, 1-9/16 - 1-13/16 inch dia, return tube

2шт.

54

S120230

HYDRAULIC HOSE,1.25" ID x 8.50", SAE 100R3 Class H

- Return, Cut from S118465X bulk hose, See below 1.25" ID x 8.50", SAE 100R3 Class H

1шт.

55

A189026

COOLER, OIL

COOLER - hydraulic oil

1шт.

S118465X

LARGE HOSE

HOSE - bulk, 1-1/4 inch (32 mm) ID x 15 ft (457 cm) long

1шт.

S120500X

HOSE

- bulk, 1-1/2 (38 mm) ID x 60 inch (1524 mm) long

1шт.
