Запчасти Case 1187C (8-04) - HYDRAULIC OIL FILTER AND COOLER LINES (08) - HYDRAULICS

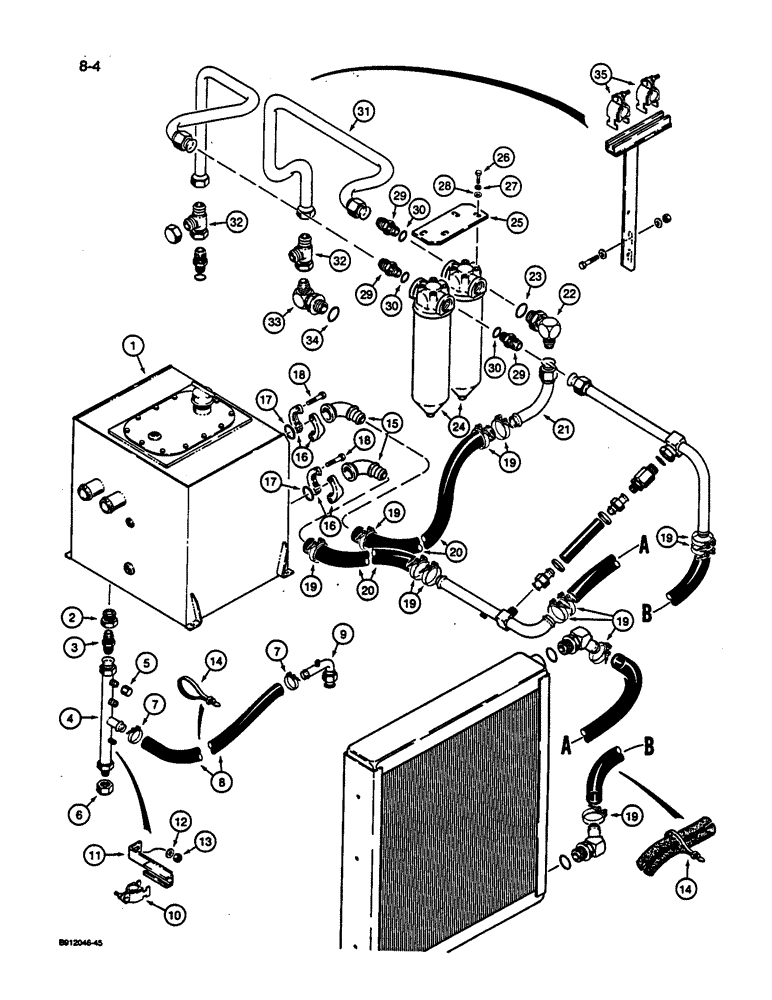

Схема запчастей Case 1187C - (8-04) - HYDRAULIC OIL FILTER AND COOLER LINES (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

S618054

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

221-615

REDUCER,Hex, 1 1/2" x 1 1/4" NPT

- pipe, 1-1/2 male x 1-1/4 inch female, reservoir bottom

1шт.

3

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/8-12 flare x 1-1/4 inch PT

1шт.

4

S517286

TUBE ASSY.

TUBE - reservoir, bottom

1шт.

5

218-756

CAP,37 Degree, 7/8"-14

If used 37º, 7/8"-14

1шт.

6

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch, reservoir drain

1шт.

7

23908R1

CLAMP,1.40"-1.56", T-Bolt

- hose, No. 14 heavy duty, return hose

2шт.

8

S120195

HOSE,1.00" ID x 77.00", SAE 100R3 Class H

- Reservoir tube to hydraulic swivel, Cut from S118383X bulk hose, See below 1.00" ID x 77.00", SAE 100R3 Class H

1шт.

9

S229693

TUBE,1" OD x 3, 3.75" L

- hose to No. 1 port of hydraulic swivel

1шт.

10

S93266

CLAMP

- includes hardware, reservoir drain tube

1шт.

11

S235039

BRACKET

- tube clamp

1шт.

12

S95569

WASHER

- flat, special, hardened

1шт.

13

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

NLS

NO LONGER SERVICED

- 90 degree, reservoir inlet

2шт.

16

A14157

FLANGE

- split, elbow

4шт.

17

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- flange

2шт.

18

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, self-locking, 1/2 NC x 1-1/4 inch

8шт.

19

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

- adj, 1-13/16 - 2-1/16 inch dia

12шт.

20

S120542

HYDRAULIC HOSE,1.50" ID x 310.00"

HOSE , Hydraulic reservoir to oil filter and hydraulic reservoir to oil cooler, Cut from S120500X bulk hose, See below 1.50" ID x 310.00"

2шт.

21

S235862

TUBE,1.5" OD x 6.5, 6.5" L

- hose to oil filter

1шт.

22

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree, 1-7/8-12 inch flare x adj O-ring boss, Includes: Ref. 23

1шт.

23

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

24

S616066

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-70

2шт.

25

S241848

BAR

PLATE - filter mounting

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

495-21038

WASHER,5/16"

4шт.

29

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER - straight, 1-7/8-12 inch flare x O-ring boss, Includes: Ref. 30

3шт.

30

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

31

S619217

TUBE ASSY.,1.5" OD

TUBE - oil filter to outside control valve

1шт.

32

218-5224

TEE,37º, 1 5/8"-12 x 1 5/8"-12, Fem Sw Run

- 1-5/8-12 inch fl branch x flare x adj straight thread

2шт.

33

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree, 1-5/8-12 inch flare x adj O-ring boss, Includes: Ref. 34

1шт.

34

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

35

S98324

CLAMP

- includes hardware, tube

4шт.

S118383X

LARGE HOSE

HOSE - bulk, 1 inch (25 mm) ID x 16 ft (488 cm) long

1шт.

S120500X

HOSE

- bulk, 1-1/2 (38 mm) ID x 60 inch (1524 mm) long

1шт.
