Запчасти Case 1187C (7-10) - TRACK DRIVE BRAKE (07) - BRAKES

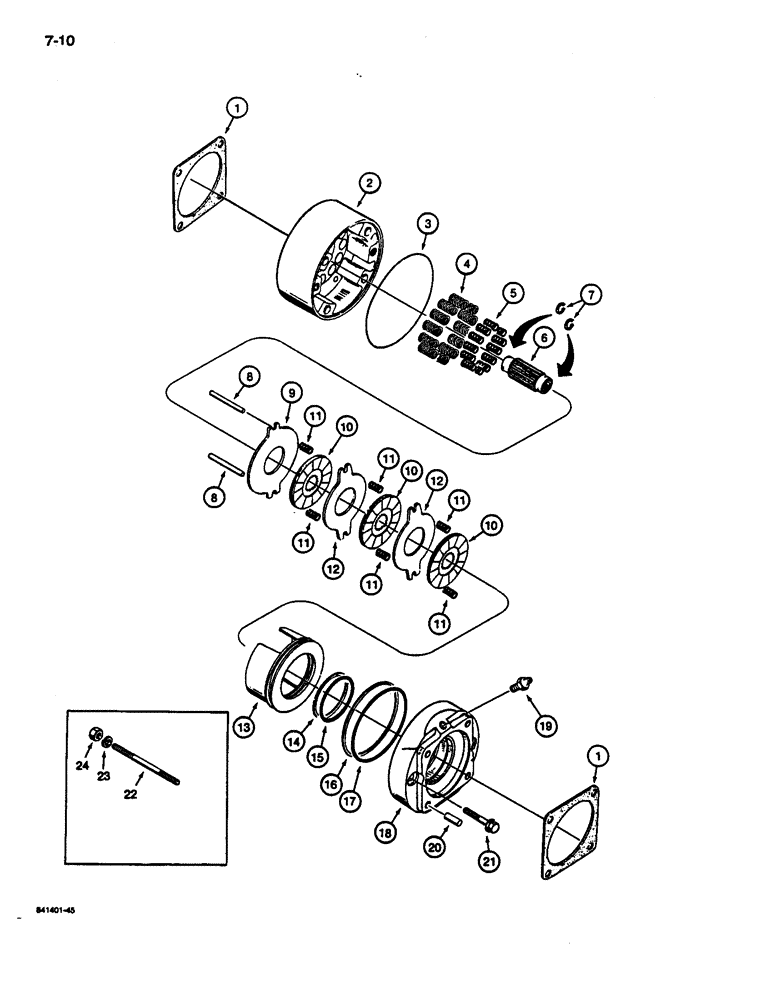

Схема запчастей Case 1187C - (7-10) - TRACK DRIVE BRAKE (07) - BRAKES

Артикул

Название

Примечание

Количество

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, for mounting hardware see Figure 7-2, Includes: Ref. 1 - 21

2шт.

1

S107753

GASKET

- brake assembly, if used

2шт.

2

N8685

HOUSING

- brake assembly

1шт.

3

S107759

PACKING

O-RING - housing seal

1шт.

4

S107755

SPRING

- compression, outer

12шт.

5

S107754

SPRING

- compression, inner

12шт.

6

N8686

SHAFT

- splined

1шт.

7

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , shaft 1.06", Int, #106

2шт.

Remove and discard snap ring from transmission end of splined shaft before assembly of brake to transmission.

1шт.

8

S107760

PIN

- torque

2шт.

9

S107756

DISC

- primary, fixed

1шт.

10

S109455

DISC

- rotating

3шт.

11

S107758

SPRING

- compression

6шт.

12

S109456

DISC

- fixed

2шт.

13

S107764

PISTON

- track brake

1шт.

14

S107767

BACK-UP RING

- backup, piston O-ring, small

1шт.

15

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

- piston, small

1шт.

16

S107765

BACK-UP RING

- backup, piston O-ring, large

1шт.

17

S107763

O-RING

- piston, large

1шт.

18

N8687

PLATE

- brake end

1шт.

19

S107762

SCREW

- air removal

1шт.

20

N60355

PLUG

- vinyl

1шт.

21

S114839

FLANGE BOLT

BOLT - hex flange head, special

2шт.

22

S118936

STUD

- special, mounts brake assembly and track, Serial Range: adjuster-transmission

8шт.

23

892-10012

LOCK WASHER,M12

WASHER, M12

8шт.

24

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75

8шт.

Выбрано товаров: 26
