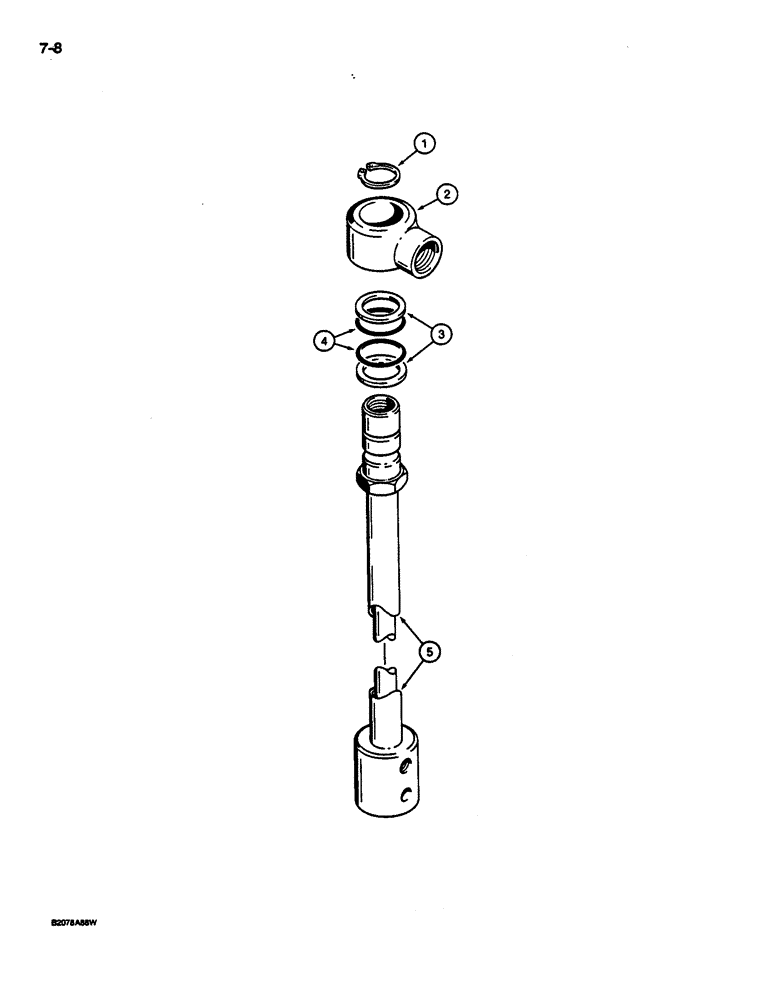

Запчасти Case 1187C (7-08) - INNER SWIVEL ASSEMBLY - LOWER (07) - BRAKES

S242505

SWIVEL ASSEMBLY - inner, lower, no longer available, order individual components, for mounting hardware see Figure 7-4, Includes: Ref. 1 - 5

1шт.

1

S120260

RING

- snap, Serial Range: swivel-tube

1шт.

2

S111313

SLEEVE

SWIVEL - inner, lower

1шт.

3

A35698

BACK-UP RING

RING - backup, swivel

2шт.

4

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Swivel -116, 90 Duro, .737" ID x .103" Thk

2шт.

5

S242504

TUBE ASSY.,23.05, 0.748" L

TUBE - inner swivel

1шт.
