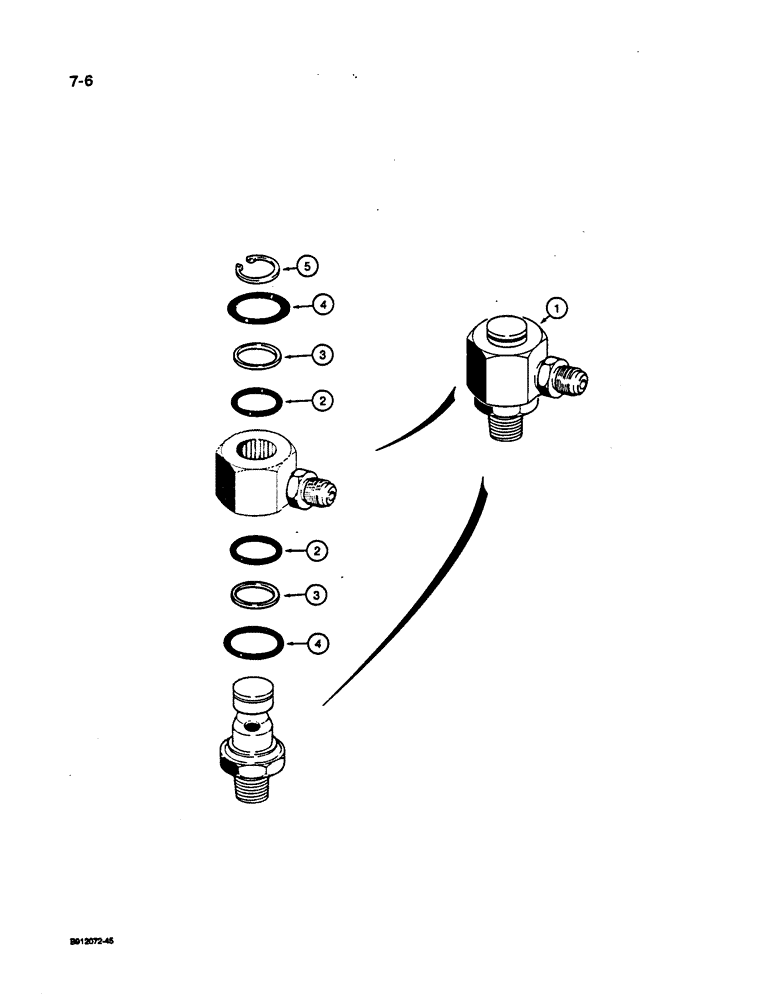

Запчасти Case 1187C (7-06) - INNER SWIVEL ASSEMBLY - UPPER (07) - BRAKES

S120653

ELBOW-CONNECTION

SWIVEL ASSEMBLY - inner, upper, for mounting hardware see Figure 7-4, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - swivel

1шт.

S300361

SEAL KIT

- seal, swivel assembly, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - quad

2шт.

3

NSS

NOT SOLD SEPARAT

RING - backup, Teflon

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - dust

2шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

The 1080B is a Crawler Excavator, last produced in 1988. The subject Snap Ring is called out as NSS-Not Serviced Separately. Dealer will have to acquire the S120653 Swivel Assembly. An alternative for the dealer is to remove the Snap Ring in the old assembly, and procure it locally.

1шт.
