Запчасти Case 1187C (7-04) - INNER SWIVEL ASSEMBLY MOUNTING (07) - BRAKES

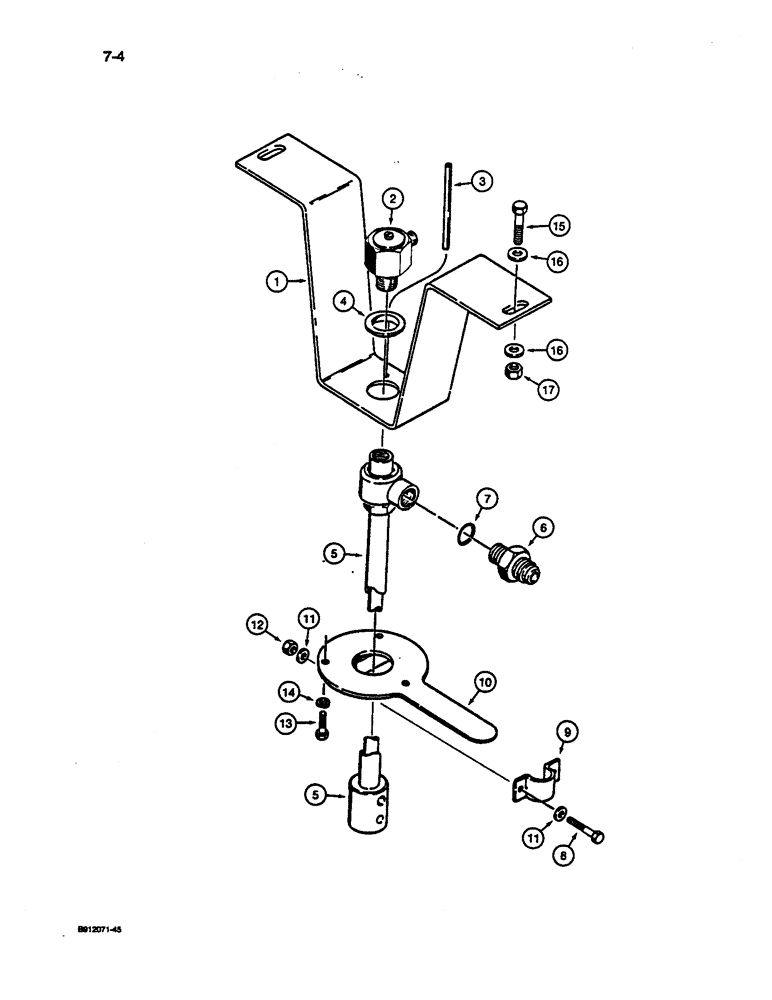

Схема запчастей Case 1187C - (7-04) - INNER SWIVEL ASSEMBLY MOUNTING (07) - BRAKES

Артикул

Название

Примечание

Количество

1

S229692

PLATE

BRACKET - swivel mounting

1шт.

2

S120653

ELBOW-CONNECTION

SWIVEL ASSEMBLY - inner, upper, parts list Figure 7-6

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

4

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING - swivel, nylon

1шт.

5

S242505

SWIVEL ASSEMBLY - inner, lower, no longer available, order individual components, parts list Figure 7-8

1шт.

6

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

S85438

CLAMP

- swivel tube

1шт.

10

S242467

PLATE

- inner swivel mounting

1шт.

11

495-21038

WASHER,5/16"

4шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

17

131-52

NUT,3/8"-16, GC

NUT, 3/8"-16, GC

2шт.

Выбрано товаров: 17
