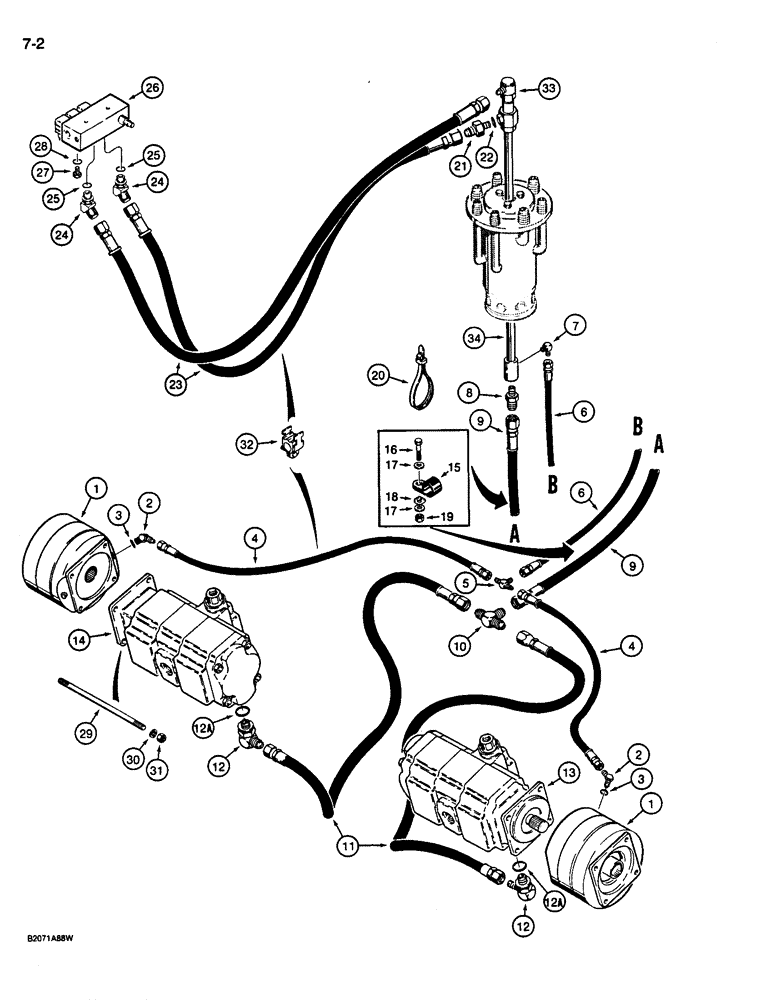

Запчасти Case 1187C (7-02) - DRIVE RANGE AND BRAKE HYDRAULIC CIRCUIT (07) - BRAKES

1

S617727

BRAKE ASSY.

BRAKE ASSEMBLY - track drive, parts list Figure 7-10

2шт.

2

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss, at brake assembly, Includes: Ref. 3

2шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

S77467

HOSE

- 38 inch (965 mm), Serial Range: long,-brakes

2шт.

5

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare

1шт.

6

S120688

HOSE ASSY.

HOSE - 56 inch (1422 mm) long, inner swivel, side port

1шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT, inner swivel, side port

1шт.

8

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT, inner swivel, bottom port

1шт.

9

S241219

HOSE ASSY.

HOSE - 50 inch (1270 mm) long, drive range, from swivel

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

1шт.

11

S241218

HOSE ASSY.

HOSE - 36 inch (914 mm) long, drive range, to drive motors

2шт.

12

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring, at drive motors, Incl. Ref. 12A

2шт.

12a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

13

S517363

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, right-hand, parts list Figure 6-6

1шт.

14

S517362

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, left-hand, parts list Figure 6-6

1шт.

15

T42284

CLAMP

-, Serial Range: hose-frame

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

18

S85505

BLOCK

- clamp

2шт.

19

131-52

NUT,3/8"-16, GC

NUT, 3/8"-16, GC

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, at inner swivel, lower port, Includes: Ref. 22

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

23

S241219

HOSE ASSY.

HOSE - 50 inch (1270 mm) long, solenoid control valve to inner swivel

2шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, at solenoid control valve, Includes: Ref. 25

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-56

1шт.

27

76349

PLUG,9/16" - 18 ORB

"V" port of solenoid control valve, Incl. Ref. 28 Hex Hd, 9/16"-18 ORB

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

S118936

STUD

- special, mounts brake, Serial Range: assembly-transmission

8шт.

30

892-10012

LOCK WASHER,M12

WASHER, M12

8шт.

31

825-1112

NUT,M12, Cl 8

8шт.

32

S98324

CLAMP

- hose, includes hardware

4шт.

33

S120653

ELBOW-CONNECTION

SWIVEL ASSEMBLY - inner, upper, parts list Figure 7-6

1шт.

34

S242505

SWIVEL ASSEMBLY - inner, lower, no longer available, order individual components, see Figure 7-8

1шт.
