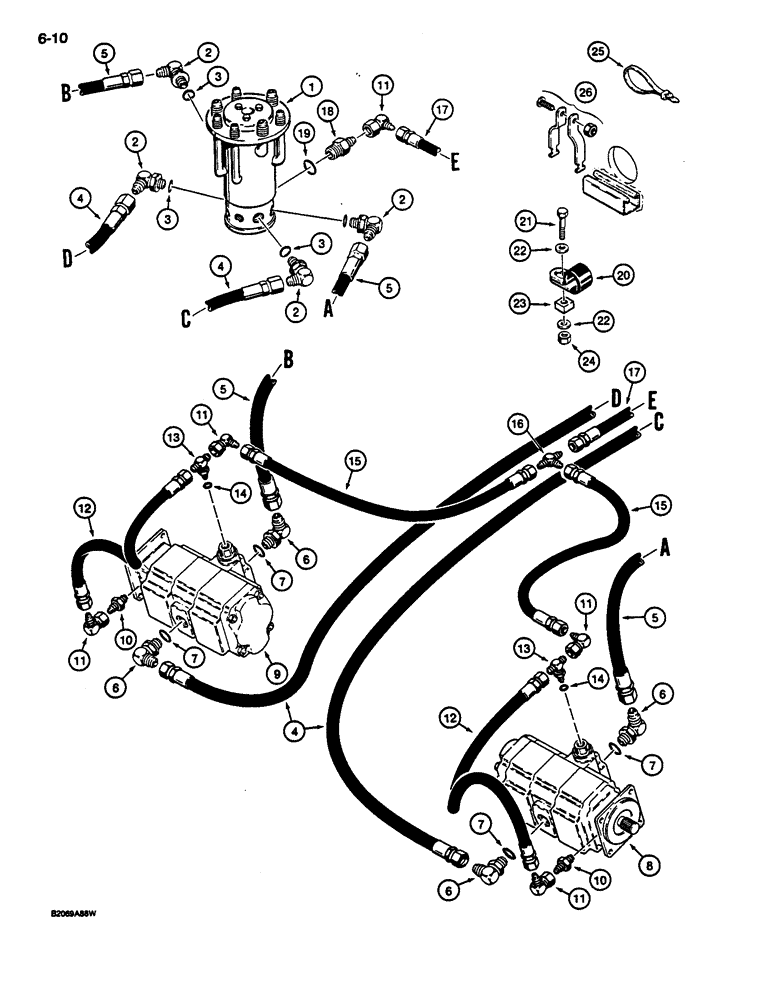

Запчасти Case 1187C (6-10) - TRACK DRIVE HYDRAULIC CIRCUIT - LOWER, TRACK DRIVE MOTORS TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

S618820

LINK

SWIVEL ASSEMBLY - hydraulic, seven port, parts list Figure 8-68

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 deg, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

S120687

HOSE ASSY.

HOSE - 84 inch (2134 mm) long, swivel to track drive motor

2шт.

5

S120686

HOSE ASSY.

HOSE - 78 inch (1981 mm) long, swivel to track drive motor

2шт.

6

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 7

4шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

8

S517363

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, right-hand, parts list Figure 6-6

1шт.

9

S517362

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, track drive, left-hand, parts list Figure 6-6

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare, motor drain ports

5шт.

12

S241217

HOSE ASSY.

HOSE - 21 inch (533 mm) long, motor drain ports

2шт.

13

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

- 7/16-20 adj O-ring branch x 9/16-18 inch flare x flare, motor drain ports, Includes: Ref. 14

2шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

15

S241218

HOSE ASSY.

HOSE - 36 inch (914 mm) long, Serial Range: tee-tee

2шт.

16

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare, hose connecting

1шт.

17

S241220

HOSE ASSY.

HOSE - 70 inch (1778 mm), Serial Range: long,-swivel

1шт.

18

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, 3/8 tube x 5/8 tube, Includes Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

T42284

CLAMP

-, Serial Range: hose-frame

6шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

23

S85505

BLOCK

- clamp

4шт.

24

131-52

NUT,3/8"-16, GC

NUT, 3/8"-16, GC

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

S98324

CLAMP

- hose, includes hardware

4шт.
